Quick Details
-
Model Number:
-
SLP-20
-
Brand Name:
-
VPC
-
Certificate:
-
CE, ROHS, ISO9001
-
Color:
-
Brass Color
-
Standard or Nonstandard:
-
Standad
-
Working medium:
-
Air Water Oil Gas
-
Material:
-
Plastic Body
Quick Details
-
Port Size:
-
1/4, 3/4, 1/2, 1
-
Warranty:
-
1year
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
SLP-20
-
Brand Name:
-
VPC
-
Certificate:
-
CE, ROHS, ISO9001
-
Color:
-
Brass Color
-
Standard or Nonstandard:
-
Standad
-
Working medium:
-
Air Water Oil Gas
-
Material:
-
Plastic Body

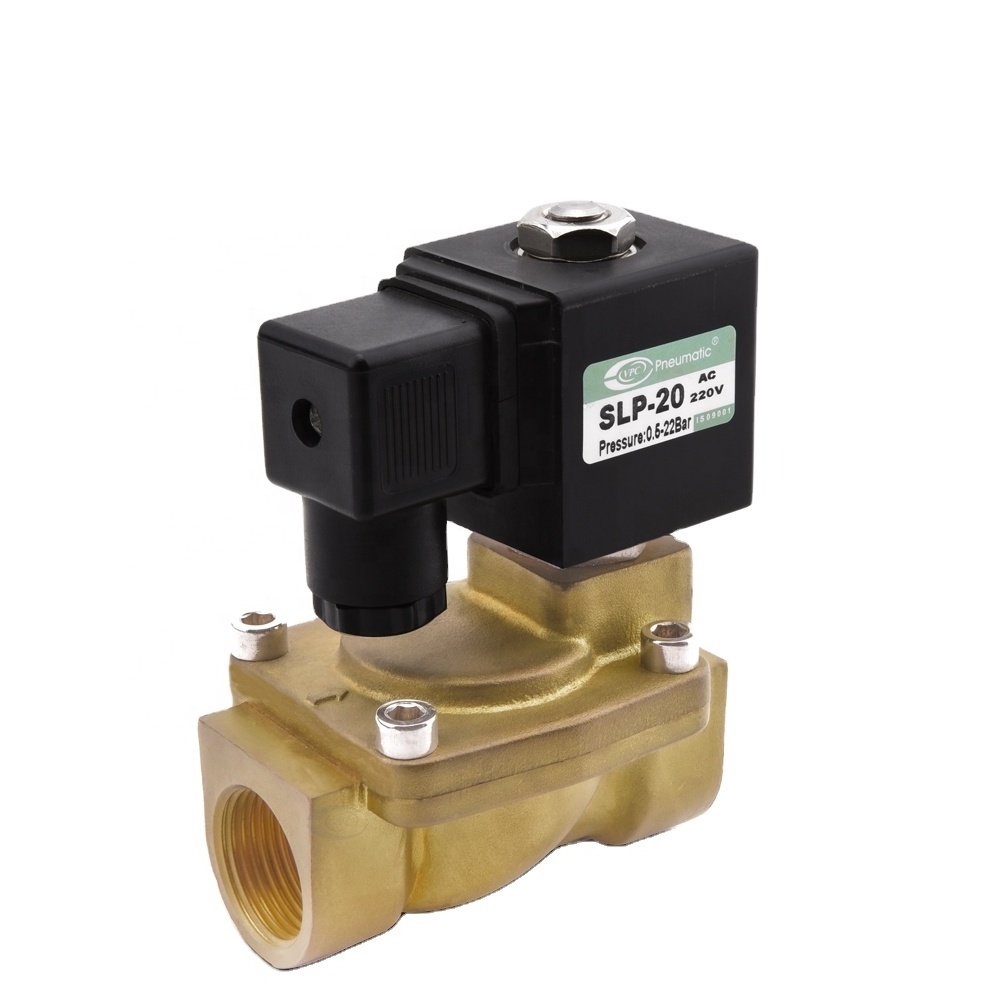

SLP Series Brass Solenoid Valve
* 2/2 way normal close solenoid valve,close when de-energized open when energized;
* Joint size from 1/8"to 2",For stainless steel,flange connection is optional；
* Voltage:AC24V/AC110V/AC220V/AC240V 50/60HZ;DC12V/DC24V
according to the requirements to choose,also can fix Germany Nass coil.
|
Working Medium
|
Air,Gas,Water,Oil
|
|
|
|
|||
|
Type
|
Normal Close
|
|
|
|
|||
|
Ambient Temperature
|
0~65℃
|
|
|
|
|||
|
Working Temperature
|
0~130℃
|
|
|
|
|||
|
Seal Material
|
NBR,EPDM,VITON
|
|
|
|
|||
|
Body Material
|
Brass,SS316
|
|
|
|
|||
|
Mounting
|
Direction of flow as the arrow,install in any position,but the best position is solenoid coil upright,horizontal directioninstallation for enhancing the service life.
|
|
|
|
|||
Ordering Code
SLP Series Valve（Normal Close）
SLP 06
□
- 10L
□
□
AC220V
SLP→Type Code
06→Joint Size
06:1/8" 08:1/4"
10:3/8" 15:1/2"
20:3/4" 25:1"
35:1-1/4" 40:1-1/2”
50:2” F:With Flange
□
→seals
Blank:NBR V:VITON
E:EPDM
10→Orifice
1L:1.0 1.5L:1.5
2.5L:2.5 3L:3.0
4L:4.0 5L:5.0
6L:1.0 10L:10.0
10.5L:10.5 13L:13.0
20L:20.0 25L:25.0
35L:35.0 40L:40.0
50L:50.0
□
→
Valve Body
Blank:Brass
S:SS316
□
→
Control Style
Blank:Normal Close
H:Normal Open
AC220V→Standard Voltage
AC110V AC220V
DC12V DC24V
