Quick Details
-
Brand Name:
-
Bingo Sensor
-
Model Number:
-
WFS-P02-Q07
-
Media Type:
-
Liquid
-
Operating Temperature:
-
-10~+80℃
-
Max Contact Rating:
-
10W/70W
-
Max Switch Voltage:
-
100V/250VAC
-
Max Switch Current:
-
0.5A
-
Electrical Life:
-
1x10^7 (5Vdc, 10mA)
-
Start-up Volume:
-
0.15L/min
-
Operate Volume:
-
4.5L/min
-
withstand hydraulic Pressure:
-
0.8Mpa
-
Flow range:
-
0.15-4.5 L/min
Quick Details
-
Type:
-
Flow Sensors
-
Warranty:
-
1 years
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Bingo Sensor
-
Model Number:
-
WFS-P02-Q07
-
Media Type:
-
Liquid
-
Operating Temperature:
-
-10~+80℃
-
Max Contact Rating:
-
10W/70W
-
Max Switch Voltage:
-
100V/250VAC
-
Max Switch Current:
-
0.5A
-
Electrical Life:
-
1x10^7 (5Vdc, 10mA)
-
Start-up Volume:
-
0.15L/min
-
Operate Volume:
-
4.5L/min
-
withstand hydraulic Pressure:
-
0.8Mpa
-
Flow range:
-
0.15-4.5 L/min
Product Description
The main water flow sensor by copper body and plastic forming, water flow rotor components, steady flow components and hall components. It into water dispenser, coffee machine and household appliances the water used for measuring the water flow.
When water flows through the rotor components, magnetic rotor rotating, and speed along with the flow of a linear change. Hall element output corresponding pulse signal feedback to the controller, the size of the flow of water by controller judgment, adjust proportional valve control of electric current.

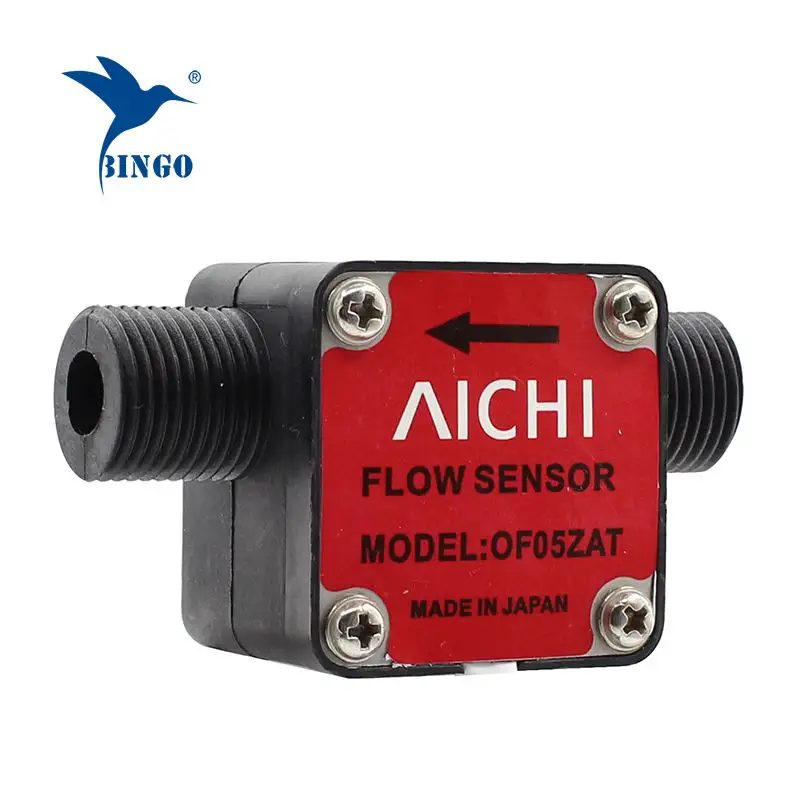

Product photos
Parameters
|
Max.fluid pressure
|
0.8Mpa
|
|
Material
|
POM(food grade)
|
|
Medium
|
Drinking water, ≤60℃
|
|
Flow rate
|
0.15-1.5, 0.2-2.5, 0.3-3.5, 0.3-4.5(L/min)
|
|
Connection
|
7mm
|
|
Electrical rate
|
DC4.5-18V(Rated DC5V, ≤10mA); customized
|
|
Insulation resistance
|
>100MΩ
|
|
Output signal
|
Rated DC5V, high level≥4.3V,low level ≤0.5V
|
|
Flow rate pulse character
|
F=76*Q(L/min), ±5%; F=48*Q(L/min), ±5%
F=26*Q(L/min), ±8%; F=14*Q(L/min), ±5%
|
