Quick Details
-
Product:
-
H.265/H.264 HDMI Encoder
-
Input Ports:
-
HDMI
-
Video Encoding:
-
H.265/H.264
-
Video Bit-rate:
-
1Mbps~13Mbps each channel
-
Video Rate Control:
-
CBR or VBR
-
GOP Structure:
-
IP...P (P Frame adjustment, without B Frame )
-
Audio Encoding:
-
MPEG-1 Layer 2, LC-AAC, HE-AAC and AC3 Pass through
-
Audio Sampling rate:
-
48KHz
-
Power requirements:
-
AC 110V± 10% 50/60Hz AC 220 ± 10% 50/60Hz
-
Warranty:
-
1 Year
Quick Details
-
Model Number:
-
T-HD265
-
Brand Name:
-
Neutral or OEM
-
Place of Origin:
-
Guangdong, China
-
Product:
-
H.265/H.264 HDMI Encoder
-
Input Ports:
-
HDMI
-
Video Encoding:
-
H.265/H.264
-
Video Bit-rate:
-
1Mbps~13Mbps each channel
-
Video Rate Control:
-
CBR or VBR
-
GOP Structure:
-
IP...P (P Frame adjustment, without B Frame )
-
Audio Encoding:
-
MPEG-1 Layer 2, LC-AAC, HE-AAC and AC3 Pass through
-
Audio Sampling rate:
-
48KHz
-
Power requirements:
-
AC 110V± 10% 50/60Hz AC 220 ± 10% 50/60Hz
-
Warranty:
-
1 Year

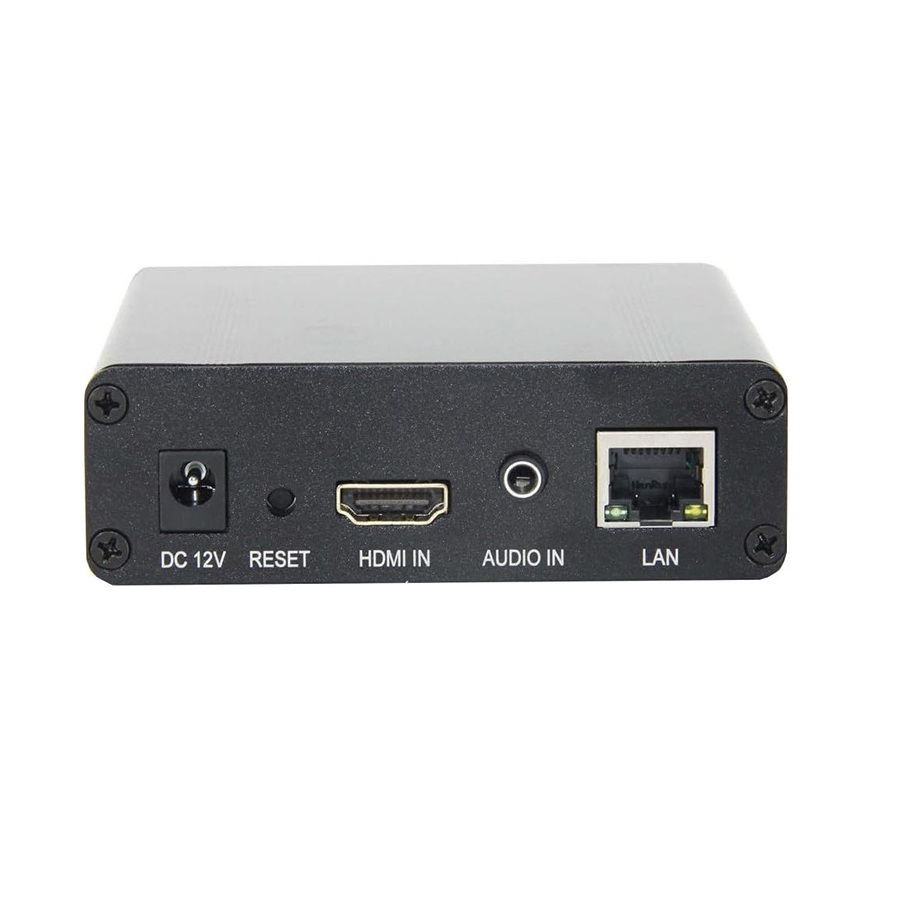

H.265/H.264 HDMI Video Encoder for Live Stream Broadcast Support RTMP/RTMPS/RTSP/UDP/RTP/HTTP/Onvif/m3u8/FLV,HDMI to IP Encoder
- Support RTMP/RTMPS/RTSP/UDP/RTP/HTTP/FLV/HLS/TS protocols,Max upto 4 streamings output simultaneously, you can do live straming on facebook, youtube, ustream, Wowza ect, at the same time
- H.265 /H.264 IPTV Encoder for live Broadcast Audio and Video Encoding for live Streaming for TV ,Youtube Live, Facebook.And Ustream, Livestream, Twitch, Meridix, Streamspot, Dacast, Tikilive, Netrmedi.
- VLC Player Compatible:Just put the IP address of the device into VLC player, you can watch live preview of video captured from device's HDMI input port.
- OSD SETTING AND CUSTOMIZED LOGO: You can add texts and logo to the video stream to customize your display output. REMOTE CONTROL VIA WEB GUI: the built-in web server allows you to modify network and video quality settings such as IP address, bit rate,fps
- This item includes free lifetime technical support from the manufacture.Alao can give online technical support via teamviewer
Application:
1. IPTV
2.Streaming Media Server (Wowza, Xtream Codes, Flash Media Server, etc.,)
3.Online Live Broadcast(Youtube, Facebook, Ustream, etc.,)
4.NVR (Net Video Recorder)
5.Teaching / Campus Broadcast
6.Hotel TV System
7.Video Conference
8.Digital Signage
9.Recording System (Replace Video Capture Card)
Feature:
1.Embedded HiLinux System, stable and effective
2.Support image, logo, text parameter settings on the output video streamings
3.Support up to 4 streamings output Simultaneously
4.Support GOP frame rate settings
5.Support HDCP and HD blue-ray
6.Support different protocol transmission for the 4 output streamings
7.A click to restore the default configuration
8.Stable and effective, support 7 x 24h working time
Video:
Input Interface:1 * HDMI + 1 * Stereo Audio(3.5mm)
Support Resolution:Max Support 1920 x 1080P@60fps
Output Interface:1 * Ethernet Port(RJ45)
Video Encoding:H.265/H.264/MJPEG
Code Rate Control:From 32Kbps to 32Mbps
Code Rate:CBR /VBR
GOP Structure:IBBP
Video Pre-processing:De-interlacing, Noise Reducing & Sharpening
Audio:
Audio Encoding:AAC, AAC+, AAC++, MP3
Sampling Rate:Auto
Bit-rate Option:32K, 44.1K, 48K, 64K, 96K, 128K, 160K, 192K,384K
Sampling Accuracy:24 Bit
Audio Data-rate:64Kb /S to 384Kb /S
Network:
RJ45:100M Interface
Program Streaming:HTTP, UDP /RTP, RTSP, RTMP, RTMPS,HLS, FLV, ONVIF
Control Panel:WEB Panel (Language Customizable)
Firmware Update:Via webpage
OEM/ODM Welcome
Package Contents:
1x HDMI Encoder
1x Power supplier
1x Manual
