Quick Details
-
Dimension(L*W*H):
-
3200*1480*1920(mm), 3200*1480*1920(mm)
-
Weight (KG):
-
800
-
Power (kW):
-
1.5
-
Diameter of honing hole:
-
46-178mm
-
Certification:
-
ISO
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
TENDTOOL
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
3200*1480*1920(mm), 3200*1480*1920(mm)
-
Weight (KG):
-
800
-
Power (kW):
-
1.5
-
Diameter of honing hole:
-
46-178mm
-
Certification:
-
ISO
Horizontal Line Honing Machine LH50
MACHINE SPECIFICATIONS
• Main Bearing Bore Diameter Range: 46 – 178 mm (1.800 – 7.000 in) Special tooling required for 127 – 178 mm (5.000 to 7.000 in)
• Capacity: V blocks, both 90 and 60; overhead and L-head in-line blocks; up to 1140 mm (45 in) long, 710 mm (28 in) from head deck to main bearing centerline.
FEATURES & BENEFITS
• Minimum stock removal, usually less than .003" (.076 mm) off the caps compared to as much as .010" (.254 mm) with boring
• Maximum precision, corrects distortion caused by warpage and cap stretch
• Meets or exceeds original factory accuracy for alignment, roundness and size
• Fast, easy setup
• Ease of operation, no special training required
• Profitable: Make $90-$120 in 30 minutes on a typical V-8 block
• Lifetime application service with every machine purchase
|
Model |
LBH100 (LH50) |
|
Diameter of honing hole |
46-178mm |
|
Rotational speed of spindle |
150r/min |
|
Electric motor power of spindle |
1.5KW |
|
Cooling pump power |
0.12KW |
|
Inner working area size(L*W*H)mm |
1140*710*710 ( mm ) |
|
Overall dimensions(L*W*H) mm |
3200*1480*1920 ( mm ) |
|
Max travel of spindle |
660mm |
|
Minimum amount of Coolant |
130L |
|
Maximum amount of Coolant |
210L |
|
Weight of main machine(approx) |
N.W 670kg G.W800kg |

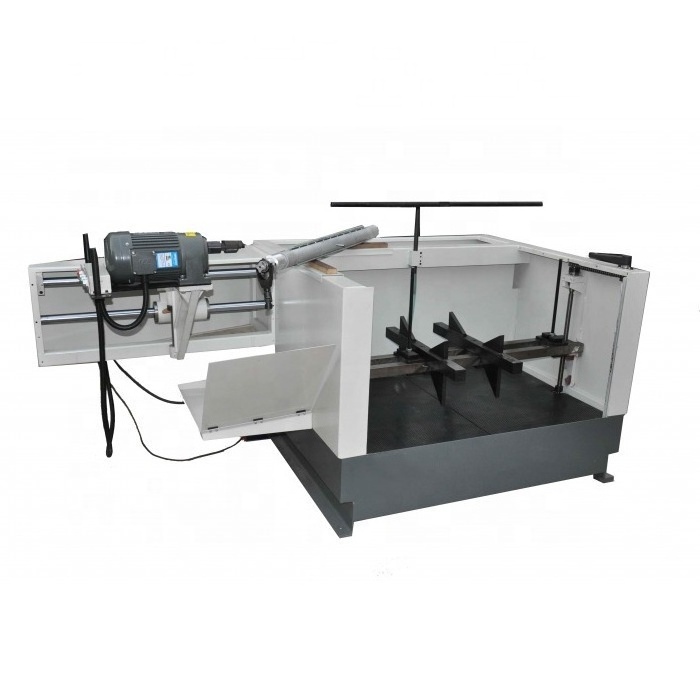

Machine photos:
Hone Unit Selection
