Quick Details
-
Model Number:
-
RDZK-IV, RDZK-IV
-
Product Name:
-

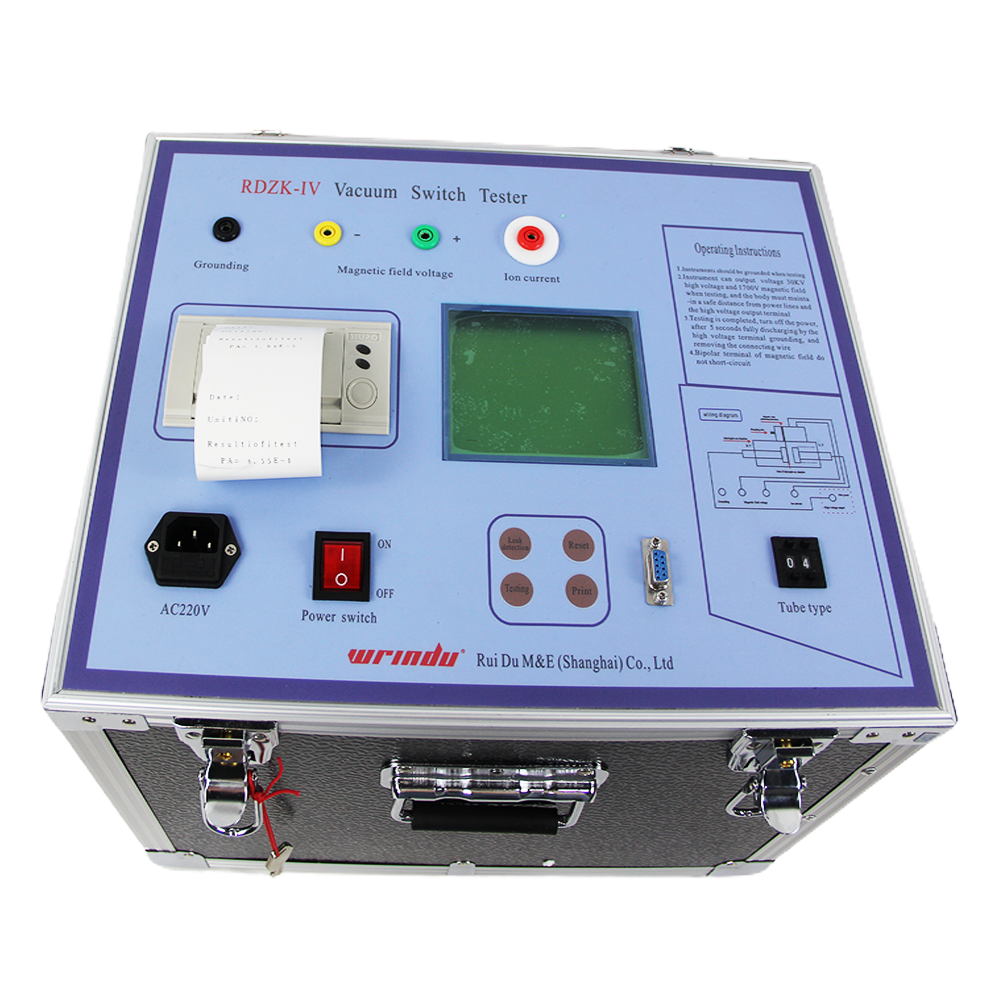

Vacuum Bottle Tester
-
Test Range:
-
0.000001 to 0.1pa
-
Test Accuracy:
-
10%
-
Magnetic Voltage:
-
1700 V
-
Pulsed Electric Field High Voltage:
-
30 kV
-
Sampling Apparatus:
-
Magnetic Control Coil
-
Testing Object:
-
Vacuum Switch Tube
-
Range of application:
-
A tractor serves several purposes.
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
China
-
Brand Name:
-
Wrindu
-
Model Number:
-
RDZK-IV, RDZK-IV
-
Product Name:
-
Vacuum Bottle Tester
-
Test Range:
-
0.000001 to 0.1pa
-
Test Accuracy:
-
10%
-
Magnetic Voltage:
-
1700 V
-
Pulsed Electric Field High Voltage:
-
30 kV
-
Sampling Apparatus:
-
Magnetic Control Coil
-
Testing Object:
-
Vacuum Switch Tube
-
Range of application:
-
A tractor serves several purposes.
|
Test object
|
various types of vacuum switch tubes
|
|
Detection method
|
the new excitation coil is used to measure the vacuum tube without disassembly.
|
|
Scope of application
|
the instrument is a multi-purpose machine, which can measure various types of vacuum magnetic switch
|
|
Detection range
|
10-5～10-1 Pa
|
|
Measurement accuracy
|
10-5～10-4 Pa ，15%
10-4～10-3 Pa ， 15% 10-3～10-2 Pa ， 10% 10-2～10-1 Pa ， 10% |
|
Magnetic field voltage
|
1700V
|
|
High-voltage of pulsed electric field
|
30KV
|
|
Opening distance of switch tube during vacuum test
|
normal opening distance
|
|
Operating environment
|
- 20 ℃～ 40 ℃
|
|
Main engine weight
|
24 kg
|
|
Overall dimension
|
420 mm × 320 mm × 280 mm
|
