Quick Details
-
Keyword:
-
Telephone line lightning protection
-
Operating Voltage (Un):
-
110V
-
Working Frequency:
-
2MHz
-
Insertion Loss(dB):
-
≤0.2 dB
-
Nominal Discharge Current (8/20μs) (In):
-
5KA
-
Limit Voltage:
-
≤150V
-
Interface Model:
-
RJ11
-
Working Environmen:
-
Temperature -40°C +80°C; Relative humidity<95%
-
Dimension:
-
112*38*30mm
-
Weight:
-
0.15kg
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KERS
-
Model Number:
-
KLF-RJ11
-
Keyword:
-
Telephone line lightning protection
-
Operating Voltage (Un):
-
110V
-
Working Frequency:
-
2MHz
-
Insertion Loss(dB):
-
≤0.2 dB
-
Nominal Discharge Current (8/20μs) (In):
-
5KA
-
Limit Voltage:
-
≤150V
-
Interface Model:
-
RJ11
-
Working Environmen:
-
Temperature -40°C +80°C; Relative humidity<95%
-
Dimension:
-
112*38*30mm
-
Weight:
-
0.15kg

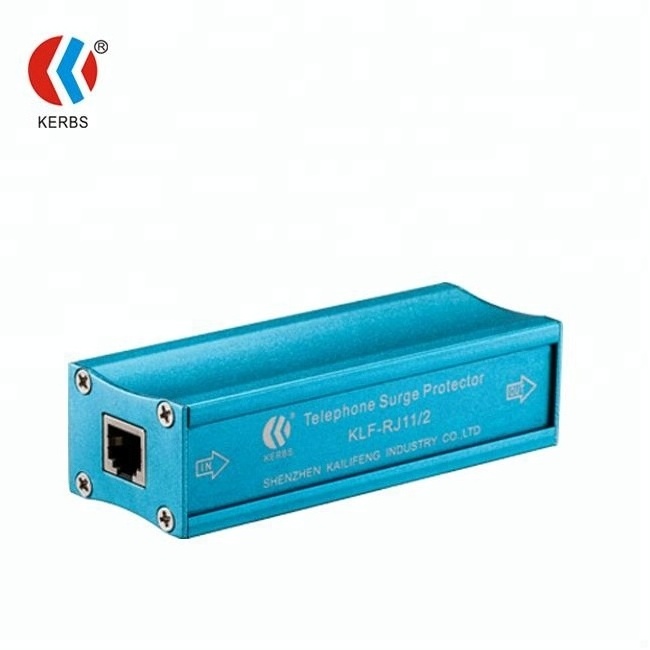

Telephone Line Lightning Protection RJ11 Phone Signal Surge Protector
This product apply to the l ightning protection of telephone l ines, data communication l ines and other communication equipments
1. Adopt principle of discharging, clamping and voltage stabilization to realize effective and reliable anti-shock high-voltage pulse and accurate clamping voltage.
2. Core components are selected international brands, with advantage of multi-level protection, low residual voltage, fast response time.
3. Low-volume design, excellent transmission performance, large intake capacity, and long life time.
4. Easy install and simple maintenance.
5. Applied to RJ11 interface, suitable for the lightning protection of communication network in MODEM, data transmission line, fax machines, PABX, trunks and other electronic equipment.
|
Signal Surge Protector Type: |
KLF-RJ11/2 |
KLF-RJ11/4 |
|
Operating Voltage (Un): |
110V |
110V |
|
Working Frequency: |
2MHz |
2MHz |
|
Insertion Loss: |
≤0.2 dB |
≤0.2 dB |
|
Nominal Discharge Current (8/20μs) (In): |
5KA |
5KA |
|
Voltage Protection Level( Up): |
≤150V |
≤150V |
|
Interface Model: |
RJ11 |
RJ11 |
|
Protected Core : |
3/4 |
2/3/4 /5 |
|
Signal Surge Protector Working Environment: |
Temperature -40°C +80°C; Relative humidity<95%; |
|
|
Signal Surge Protector Dimension : |
112*38*30mm |
|
|
Signal Surge Protector Net Weight : |
0.15kg |
|
Application of Signal Surge Protector:
communication network in MODEM, data transmission line, fax machines, PABX, trunks etc.
