- Product Details
- {{item.text}}
Quick Details
-
Model:
-
FA-8000 Auto Refractometer
-
Vertex distance:
-
Omm, 12mm, 13.75mm
-
Spherical:
-
-20-+20m (VD=12) 0.12/0.25m-1 Step
-
Cylinder:
-
-8~+8m 0.12/0.25m Step
-
Axis:
-
0-180° 1° step
-
Cylinder form:
-
-, +, ±
-
Pupil distance:
-
45-88mm, 1mm step
-
Chart:
-
Follow-up Colorful Fogging Chart System
-
Memory of data:
-
10 measure value for each right and left eye
-
Display:
-
9" TFT LCD
Quick Details
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
Visionstar
-
Model Number:
-
FA-8000
-
Model:
-
FA-8000 Auto Refractometer
-
Vertex distance:
-
Omm, 12mm, 13.75mm
-
Spherical:
-
-20-+20m (VD=12) 0.12/0.25m-1 Step
-
Cylinder:
-
-8~+8m 0.12/0.25m Step
-
Axis:
-
0-180° 1° step
-
Cylinder form:
-
-, +, ±
-
Pupil distance:
-
45-88mm, 1mm step
-
Chart:
-
Follow-up Colorful Fogging Chart System
-
Memory of data:
-
10 measure value for each right and left eye
-
Display:
-
9" TFT LCD

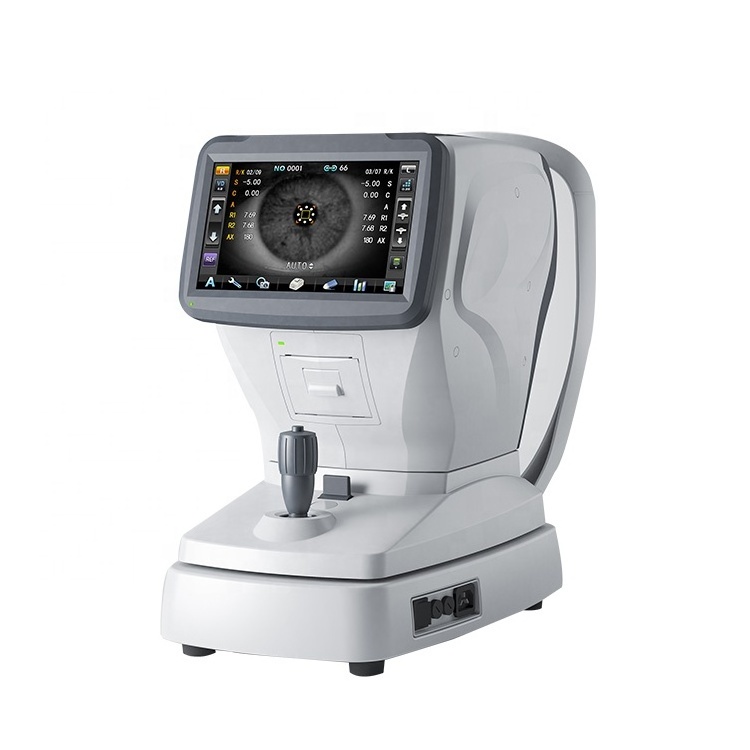

FA-8000 Auto Refractometer
Features:
9” TFT LCD monitor,Bigger, better monitor and icon-display menu for easier operation and settings.
Bigger better monitor, icon display, menu for easier operation and setting.
Motorized joystick: A Motorized joystick with auto-tracing mode is adopted, so operation is easier.
New designed bracket, Attractive and durable.
Tilting screen function that allows wide variance of access.
Auto focus function,Just move, it will automatically focus the eye and get the value.
Refractive measurement with hexagon prism,with high quality of hexagon prism and highly senstive CCD, it provides unmathced accuracy and reliability.
Specifications:
|
Technical Specification |
|
|
Refractometer |
|
|
Vertex distance |
Omm, 12mm, 13.75mm |
|
Spherical |
-20-+20m (VD=12) 0.12/0.25m -1 Step |
|
Cylinder |
-8~+8m 0.12/0.25m Step |
|
Axis |
0-180° 1° step |
|
Cylinder form |
-, +, ± |
|
Pupil distance |
45-88mm, 1mm step |
|
Keratometry (FA-6500K Only ) |
|
|
Radius of curvature |
5.0-10mm (increment:0.01mm) |
|
Corneal Power |
33.75-67.50D (when corner equivalent refractive index is 1.337) |
|
Increment selectable from 0.12,0.25D |
|
|
Corneal astigmatism |
0.00-8.00D (Increment selectable from 0.12,0.25m 1 ) |
|
Axis |
1~180° (increment :1°) |
|
Corneal diameter |
2.0 -14.0mm (increment:0.1mm) |
|
Others |
|
|
Chart |
Follow-up Colorful Fogging Chart System |
|
Memory of data |
10 measure value for each right and left eye |
|
Display |
9” TFT LCD |
|
|
Thermal printer |
|
Power supply |
220V*±10% 50Hz 60VA |
|
Dimension |
483mm*268mm*452mm |
|
Weight |
16kg |
