Producing high-quality plastic products requires the use of complex molds, and injection machines can handle these high-quality
molds, ensuring long mold life, stable plastic product quality, and material savings.
- Product Details
- {{item.text}}
Quick Details
-
Ejector Stroke(mm):
-
140 mm
-
Ejector Force(kN):
-
40 kN
-
Theoretical Shot Volume(cm³):
-
342 cm³
-
Injection Rate (g/s):
-
120 g/s
-
Injection Weight (g):
-
186 g
-
Screw Speed (rpm):
-
0 - 199 rpm
-
Screw diameter (mm):
-
42 mm
-
Weight (KG):
-
3800 kg
-
Place of Origin:
-
Taiwan,China
-
Open Stroke(mm):
-
310 mm
-

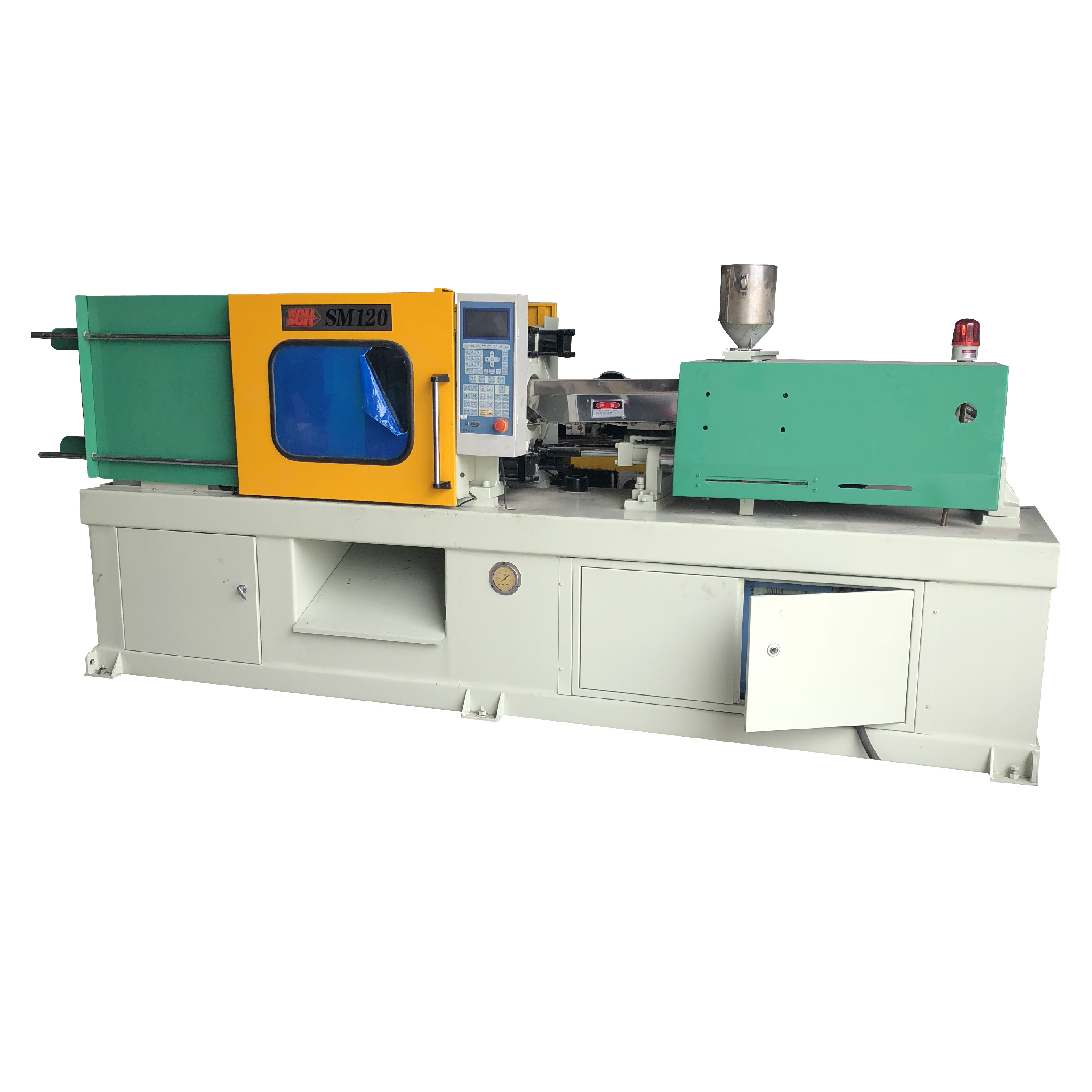

Model Number:
-
SM-120
-
Brand Name:
-
Chen Hsong
-
Year:
-
2014
-
Power (kW):
-
24.3 kW
Quick Details
-
Distance between Tie Bars(Width)(mm):
-
410mm
-
Distance between Tie Bars(Height)(mm):
-
410mm
-
Mold Height(mm):
-
150 - 400 mm
-
Ejector Stroke(mm):
-
140 mm
-
Ejector Force(kN):
-
40 kN
-
Theoretical Shot Volume(cm³):
-
342 cm³
-
Injection Rate (g/s):
-
120 g/s
-
Injection Weight (g):
-
186 g
-
Screw Speed (rpm):
-
0 - 199 rpm
-
Screw diameter (mm):
-
42 mm
-
Weight (KG):
-
3800 kg
-
Place of Origin:
-
Taiwan,China
-
Open Stroke(mm):
-
310 mm
-
Model Number:
-
SM-120
-
Brand Name:
-
Chen Hsong
-
Year:
-
2014
-
Power (kW):
-
24.3 kW
Related Products
Product Description
1. An efficient screw design can increase the melting and injection speed, significantly improving production capacity.
2. The automated injection process enables large-scale production, shortens the production cycle, and meets the demands of more customers, reducing manual operation time and enhancing productivity.
3. The injection machine precisely controls the injection process, producing consistently high-quality plastic products. Each product has the same size and appearance, enhancing quality stability and customer satisfaction, ensuring timely order fulfillment.
Machine details
Machine details
Reducing manual operation: The production of high-quality plastic products often involves complex injection processes, and using
injection machines can automatically complete most of the production steps, reducing manual operation and improving production efficiency.
injection machines can automatically complete most of the production steps, reducing manual operation and improving production efficiency.
|
Brand/model
international size code |
|
SM-120
327/120 |
|
|
||
|
shot weight
|
g
|
135
|
186
|
234
|
||
|
screw diameter
|
mm
|
35
|
42
|
46
|
||
|
Injection Pressure
|
kgf/cm²
|
2190
|
1590
|
1270
|
||
|
Injection rete
|
cm³/sec
|
59
|
82
|
103
|
||
|
Screv stroke
|
mm
|
155
|
|
|
||
|
Screv rotation
|
rpm
|
0- 199
|
|
|
||
|
plasticizing capacily
|
g/sec
|
13.2
|
18.1
|
22.8
|
||
|
clamping force
|
kn
|
1200
|
|
|
||
|
Opening Stroke
|
mm
|
310
|
|
|
||
|
Max.daylight
|
mm
|
710
|
|
|
||
|
Mold height(min-max)
|
mm
|
150-400
|
|
|
||
|
Space between tie bars
|
mm
|
410*410
|
|
|
||
|
hydraulic ejector
|
mm
|
3*100
|
|
|
||
|
Pump motor
|
kw(hp)
|
15(20)
|
|
|
||
|
Heating capacity
|
kw(hp)
|
9.3
|
|
|
||
|
Max.system pressure
|
kgf/cm²
|
140
|
|
|
||
|
oil tank capacity
|
liter
|
200
|
|
|
||
|
Machine dimension:L*W*H
|
M
|
4.7*1.3*2.0
|
|
|
||
|
Machine weight
|
ton
|
3.8
|
|
|
||
About DELIGAO
Shenzhen Deli high mould plastic Co., LTD Our company has more than 2000 square meters of warehouse and stable supply of goods. With 19 years of experience in the used injection molding machine industry, we provide quality service and rich expertise and experience. Technically, our company can provide customers with: refurbishment and repainting. Change variable pump/servo. Such as one-stop comprehensive service. Main business: Japan, South Korea, Taiwan, Hong Kong, mainland China, Model: 30 tons to 4000 tons of various brands of injection molding machine. Comprehensive function, stable performance, high quality, low cost, high
efficiency, low investment! Look forward to your cooperation!
efficiency, low investment! Look forward to your cooperation!
Customer Photos
Certifications
FAQ
Q1:Are you a trading company or a manufactory?
A1:We are a manufactory,can give u best service and low price.
Q2:What’s your guarantee or the warranty of the quality if we buy your machines?
A2:We offer you high quality machines with 1 year warranty .
Q3:When can I get my machine after I paid?
A3:We will deliver the machines on time as the date we agreed both side.
A1:We are a manufactory,can give u best service and low price.
Q2:What’s your guarantee or the warranty of the quality if we buy your machines?
A2:We offer you high quality machines with 1 year warranty .
Q3:When can I get my machine after I paid?
A3:We will deliver the machines on time as the date we agreed both side.
