Quick Details
-
Power:
-
40KW
-
Dimension(L*W*H):
-
16800*1000*4000mm
-
Weight:
-
8000 KG
-
Dimension:
-
16800*1000*4000mm
-
Machine type:
-
Dyeing and finishing machine
-
Main Part Material:
-
stainless steel,Iron, carbon steel etc.
-
Driven Type:
-
Electric
-
Heating system:
-
electrical/LPG or natural gas
-
Max Working Temperature:
-
220 C
-
Phase:
-
3 Phases
-
Frequency:
-
50/60Hz
-
Maximum Speed (M):
-
40 m/min
-
Drying type:
-
hot air
-
Certification:
-
CE
Quick Details
-
Voltage:
-
380V/420V/220V
-
Place of Origin:
-
China
-
Brand Name:
-
kinwah
-
Power:
-
40KW
-
Dimension(L*W*H):
-
16800*1000*4000mm
-
Weight:
-
8000 KG
-
Dimension:
-
16800*1000*4000mm
-
Machine type:
-
Dyeing and finishing machine
-
Main Part Material:
-
stainless steel,Iron, carbon steel etc.
-
Driven Type:
-
Electric
-
Heating system:
-
electrical/LPG or natural gas
-
Max Working Temperature:
-
220 C
-
Phase:
-
3 Phases
-
Frequency:
-
50/60Hz
-
Maximum Speed (M):
-
40 m/min
-
Drying type:
-
hot air
-
Certification:
-
CE
Product Description
www.en.kinwah.cn

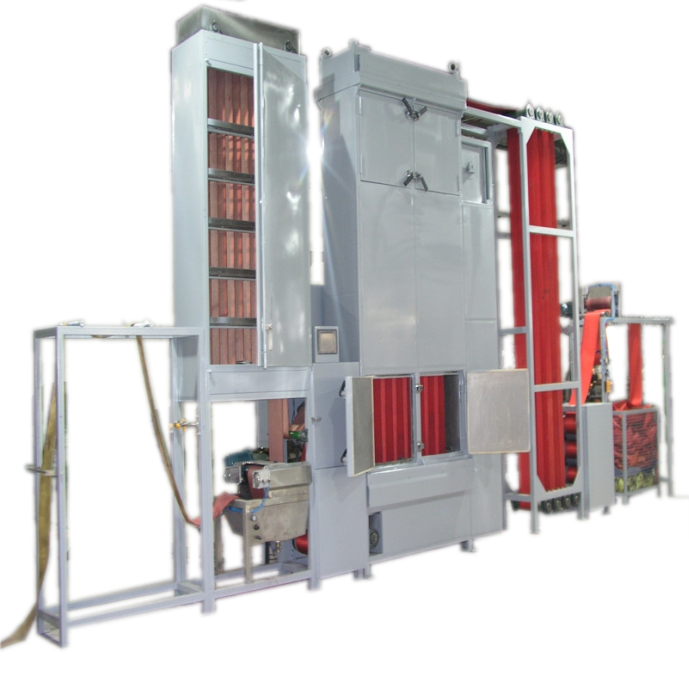

High Efficient Tie Down Straps Continuous Dyeing Machine
The machine adapts to small, medium and large corporations for material printing. This is high speed Sling webbings/tie down straps/lash straps continuous dyeing&finishing machine.
Application
1) The dyeing machine is especially used for dyeing textile lift slings,tie down straps,lash straps and Heavy duty belts with elongation.
2) Product capacity: 1-4 Pcs/time, 0-15meter/min/Pcs
3) Can dye both 350mm width sling webbings,heavy duty webbings,tie down straps,lash straps,etc.
4) With strong elongation function.
5) For 300mm width webbings:1 meter go into dyeing machine,1.02meter come out after dyed.
For 50mm width webbings:1 meter go into dyeing machine,1.06meter come out after dyed.
2) Product capacity: 1-4 Pcs/time, 0-15meter/min/Pcs
3) Can dye both 350mm width sling webbings,heavy duty webbings,tie down straps,lash straps,etc.
4) With strong elongation function.
5) For 300mm width webbings:1 meter go into dyeing machine,1.02meter come out after dyed.
For 50mm width webbings:1 meter go into dyeing machine,1.06meter come out after dyed.
|
Model NO
|
KW-821-DZ400
|
|
Size
|
16800*1000*4000mm
|
|
Voltage
|
380V/220V/420V
|
|
Power
|
40KW
|
|
Weight
|
8000KG
|
|
Frequency
|
50/60Hz
|
|
Drying type
|
hot air
|
|
Phase
|
3 Phases
|
|
Maximum Speed
|
40 m/min
|
|
Automaticity
|
Semi-Automatic
|
Detailed Images
Function Options of this Machine
|
Heat System
|
Electrical
|
LPG or natural gas
|
Steam
|
|
Working Width(mm)
|
200
|
400
|
600
|
|
Thermofixation Chamber Tape Content(m)
|
45/60
|
80/90
|
80/90
|
|
Maximum Speed(m)
|
15
|
30
|
40
|
|
Maximum Number(m)
|
6
|
10
|
20
|
|
Control system
|
Manual/PLC
|
(PLC&Touch screen)
|
/
|
