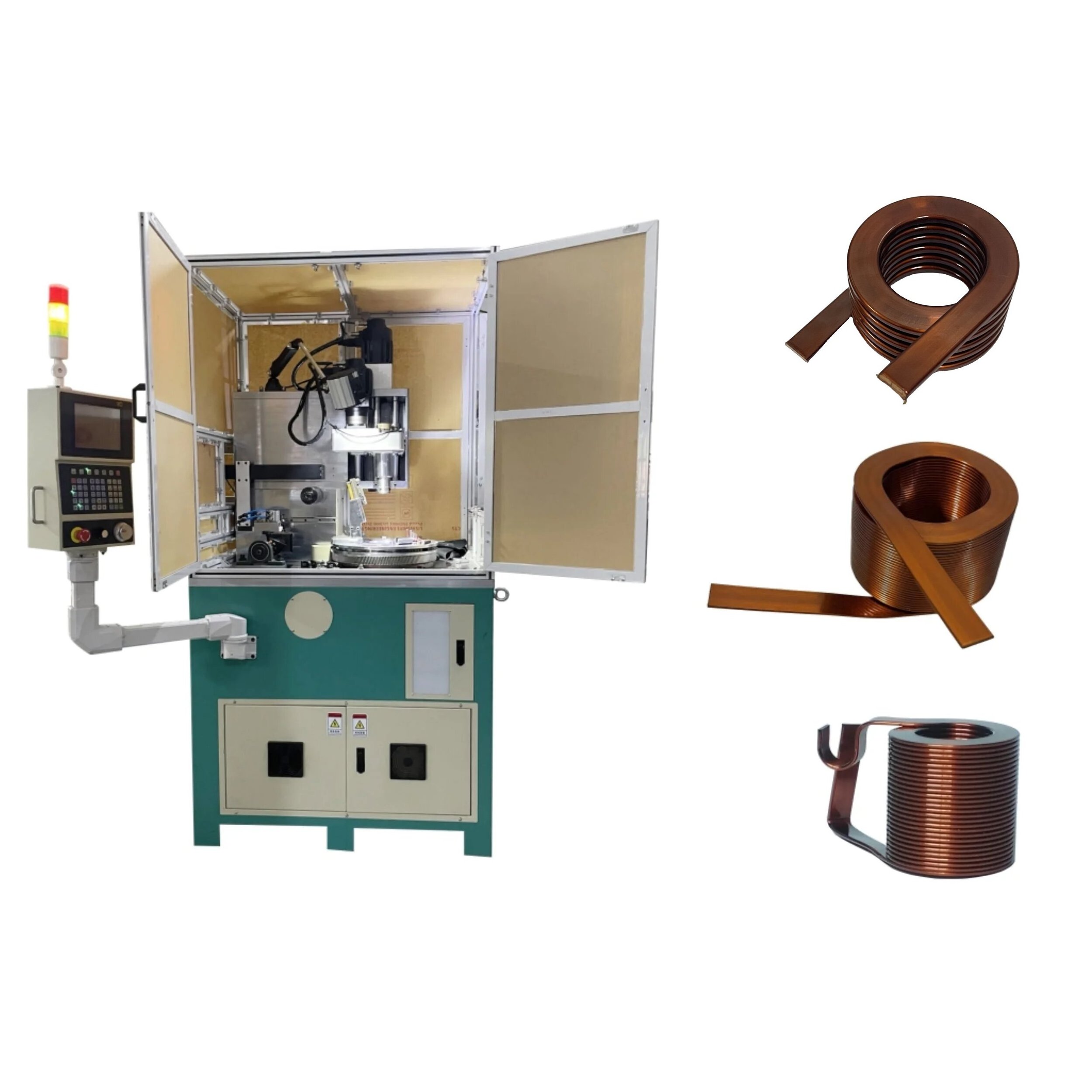

Youhui YH-350 Easy To Operate CNC Toroidal Transformer Winding Machine Motor Coil Winding Machine Flat Wire Winding Machine
Youhui YH-350 Easy To Operate CNC Toroidal Transformer Winding Machine Motor Coil Winding Machine Flat Wire Winding Machine
Youhui YH-350 Easy To Operate CNC Toroidal Transformer Winding Machine Motor Coil Winding Machine Flat Wire Winding Machine
Youhui YH-350 Easy To Operate CNC Toroidal Transformer Winding Machine Motor Coil Winding Machine Flat Wire Winding Machine
Youhui YH-350 Easy To Operate CNC Toroidal Transformer Winding Machine Motor Coil Winding Machine Flat Wire Winding Machine
Youhui YH-350 Easy To Operate CNC Toroidal Transformer Winding Machine Motor Coil Winding Machine Flat Wire Winding Machine
Youhui YH-350 Easy To Operate CNC Toroidal Transformer Winding Machine Motor Coil Winding Machine Flat Wire Winding Machine
Youhui YH-350 Easy To Operate CNC Toroidal Transformer Winding Machine Motor Coil Winding Machine Flat Wire Winding Machine

Youhui YH-350 Easy To Operate CNC Toroidal Transformer Winding Machine Motor Coil Winding Machine Flat Wire Winding Machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $29800
≥5 Sets
US $19800
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Center Height (mm):
90 mm
Max.Transformer Capacity(kVA):
500 kVA
Place of Origin:
Guangdong, China
Brand Name:
YOUHUI
Weight (KG):
1000
Dimension(L*W*H):
3500*1200*1800
Input voltage:
triphasic 220V
Minimum wire thickness:
<0.2mm
Machinable cross-section:
>60mm²(Standard winding)
Maximum aspect ratio:
>20Fold(The wire is wide and thick)
Rated power:
6.5KW
Maximum wire thickness:
>5mm
Use air pressure:
0.6≤P≤1.0MPa
Minimum wire width:
<1.0mm
Minimum inner diameter:
2 Fold Line width,least 3mm
Maximum efficiency:
<0.1s Circle

Quick Details

Max. Load (KG):
1000 KG
Coil Type:
Round
Length of Axis (mm):
120 mm
Center Height (mm):
90 mm
Max.Transformer Capacity(kVA):
500 kVA
Place of Origin:
Guangdong, China
Brand Name:
YOUHUI
Weight (KG):
1000
Dimension(L*W*H):
3500*1200*1800
Input voltage:
triphasic 220V
Minimum wire thickness:
<0.2mm
Machinable cross-section:
>60mm²(Standard winding)
Maximum aspect ratio:
>20Fold(The wire is wide and thick)
Rated power:
6.5KW
Maximum wire thickness:
>5mm
Use air pressure:
0.6≤P≤1.0MPa
Minimum wire width:
<1.0mm
Minimum inner diameter:
2 Fold Line width,least 3mm
Maximum efficiency:
<0.1s Circle
Products Description
Product Name
Youhui YH-350 Easy To Operate CNC Toroidal Transformer Winding Machine Motor Coil Winding Machine Flat Coil Winding Machine
Model
YH-350
Unfolded Working Size(Length*Width*Height)
350*120*180cm
Machinable Cross Section：
>60mm²（Standard Winding）
Machine Weight：
1000kg
Maximum Aspect Ratio：
>20Fold（The Wire Is Wide And Thick）
Minimum Wire Thickness：
<0.2mm
Rated Power：
6.5KW
Maximum Wire Thickness：
>5mm
Use Air Pressure：
0.6≤P≤1.0MPa
Minimum Wire Width：
<1.0mm
Minimum Inner Diameter：
2 Fold Line Width, At Least 3mm
Maximum Wire Width：
>20mm
Maximum Inner Diameter：
The Theory Is Not Limited, And The Maximum Is Currently Done 100Mm
Minimum Number Of Laps：
<0.1s/Circle（Theories are not limited）
Maximum height：
>100mm
Maximum Efficiency：
<0.1s/Circle
Product Name Specifications
Brand
Model Specifications
Quantity
Remark
Machine body
Youhui
1 Piece
Servo motors
DORNA/DELTA
3.0KW
1 Set
X-Axis Cam
DORNA/DELTA
2.0KW
1 Set
Y-Axis Reel
DORNA/DELTA
1.5KW With Brake
1 Set
Z-Axis Arrangement
DORNA/DELTA
0.4KW With Brake
1 Set
A-Axis Feeding Line
PC Controller
YouHui
4 Caxis
1 Piece
8 Inches Screen
Reducer
1：3（110Flange）
1 Set
Y Axis
Solenoid valve
AIRTAC
210-08
4 Set
Peculiarity：
1. Realize single-circle automatic production, semi-automatic production of 8-figure continuous coil.
2. Realize automatic production of products.
3. Save post-process man-hours and improve efficiency.
4. Achieve face recognition, fingerprint recognition, password recognition, MES data collection and analysis, production data report output and other effective management methods for customers to choose
5.Realize the collaborative automation with other process equipment.
This machine can be wound the following coils, if you have coils need to customize, please feel free to contact us .
