Quick Details
-
Brand Name:
-
YONG SHENG
-
Product name:
-

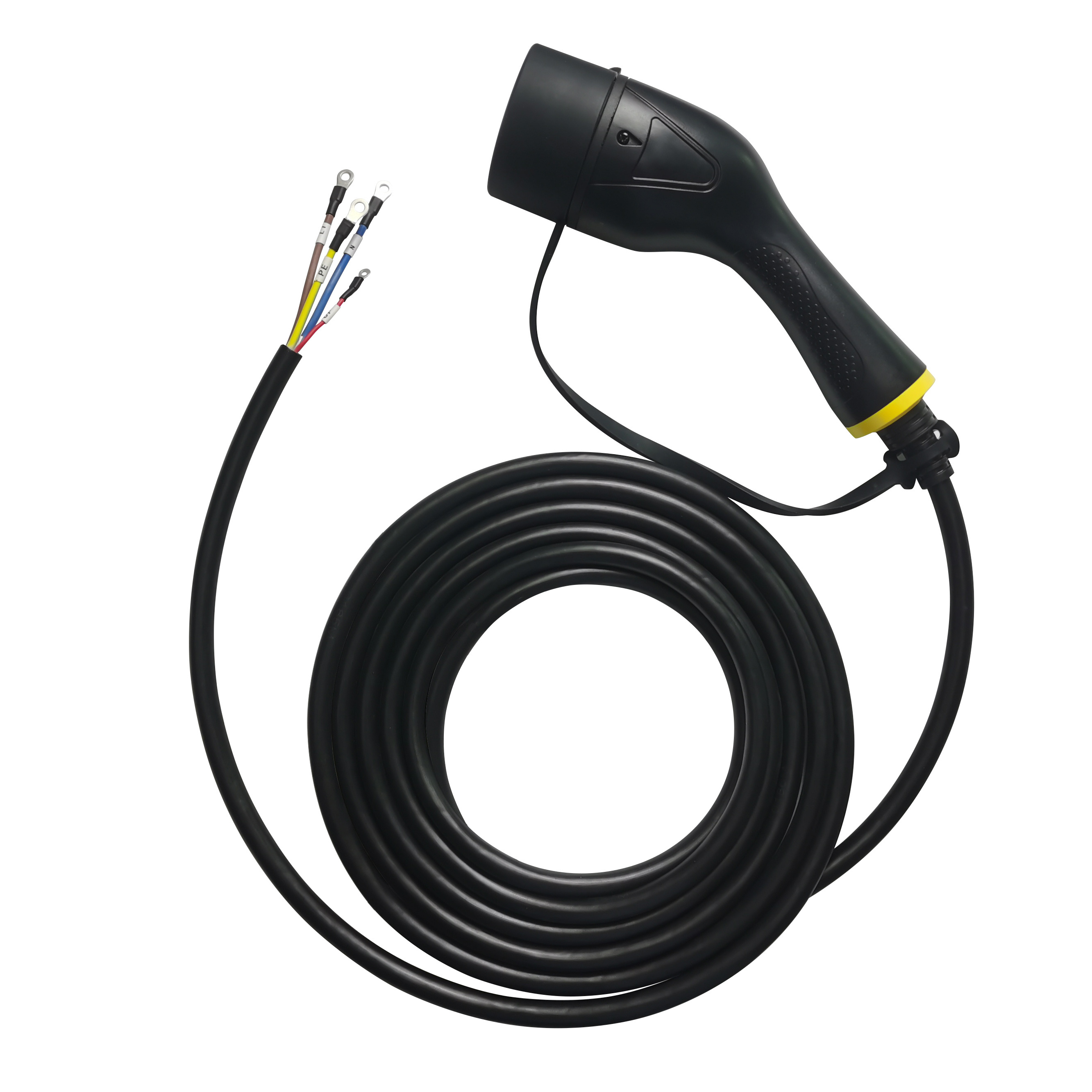

Mode 3 EV Cable
-
Color/Length/logo:
-
Customized
-
Mechanical Life:
-
>10000 times no-load plug in/out
-
Flame retardant grade:
-
UL94V-0
-
Rated Voltage:
-
250/480V AC
-
Work Temperature:
-
-30℃~+50℃
-
Terminal:
-
Copper alloy, silver plating
-
Cable Material:
-
TPU
-
Shipping Terms:
-
EXW FOB CIF
-
Lead-time:
-
2-4 Weeks
Quick Details
-
Purpose:
-
for electric car charging
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
Type 2
-
Brand Name:
-
YONG SHENG
-
Product name:
-
Mode 3 EV Cable
-
Color/Length/logo:
-
Customized
-
Mechanical Life:
-
>10000 times no-load plug in/out
-
Flame retardant grade:
-
UL94V-0
-
Rated Voltage:
-
250/480V AC
-
Work Temperature:
-
-30℃~+50℃
-
Terminal:
-
Copper alloy, silver plating
-
Cable Material:
-
TPU
-
Shipping Terms:
-
EXW FOB CIF
-
Lead-time:
-
2-4 Weeks
Product overviews
Specification
|
The Product Definition
|
|
Mechanical Behavior
|
|
|||
|
Standard
|
IEC 62196-2
|
Insertion & Pullout Times
|
> 10,000 times
|
|||
|
Charging Mode
|
Mode 3
|
Insertion force
|
<100N
|
|||
|
Current Type
|
AC
|
Withstanding Impact Force
|
5000 N
|
|||
|
Ambient Condition
|
|
Electrical Characteristics
|
|
|||
|
Ambient Temperature(working)
|
-30℃~+50℃
|
Rated Current
|
16A/32A
|
|||
|
Ambient Temperature(storage)
|
-30℃~+50℃
|
Rated Voltage
|
250Vac/480Vac
|
|||
|
Ingress Protection
|
IP54(mated)
|
Insulation Resistance
|
≥5MΩ
|
|||
|
Cable Configuration
|
|
|
|
|||
|
16A Single Phase
|
|
3*2.5mm²+1*0.75mm²
|
|
|||
|
16A Three Phase
|
|
3*6mm²+1*0.75mm²
|
|
|||
|
32A Single Phase
|
|
5*2.5mm²+1*0.75mm²
|
|
|||
|
32A Three Phase
|
|
5*6mm²+1*0.75mm²
|
|
|||
