Quick Details
-
Brand Name:
-
NEWGOER
-
Model Number:
-
NG-607
-
Max. Force:
-
500kg (customized)
-
Motor:
-
Panasonic Servo Motor
-
Clamping board size:
-
1200*1200mm
-
Lifting speed:
-
10-305mm/min
-
Clamping board adjustable height:
-
0~1000mm
-
Clamping board expansion width:
-
200~2000mm
-
Application:
-
packing of kitchen ware, furniture, household appliances
-
Product name:
-
Clamping Force Testing Machine
-
Function:
-
measure the deflections of product packages
-
Power supply:
-
380v 50/60HZ
Quick Details
-
Warranty:
-
1 year
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
NEWGOER
-
Model Number:
-
NG-607
-
Max. Force:
-
500kg (customized)
-
Motor:
-
Panasonic Servo Motor
-
Clamping board size:
-
1200*1200mm
-
Lifting speed:
-
10-305mm/min
-
Clamping board adjustable height:
-
0~1000mm
-
Clamping board expansion width:
-
200~2000mm
-
Application:
-
packing of kitchen ware, furniture, household appliances
-
Product name:
-
Clamping Force Testing Machine
-
Function:
-
measure the deflections of product packages
-
Power supply:
-
380v 50/60HZ

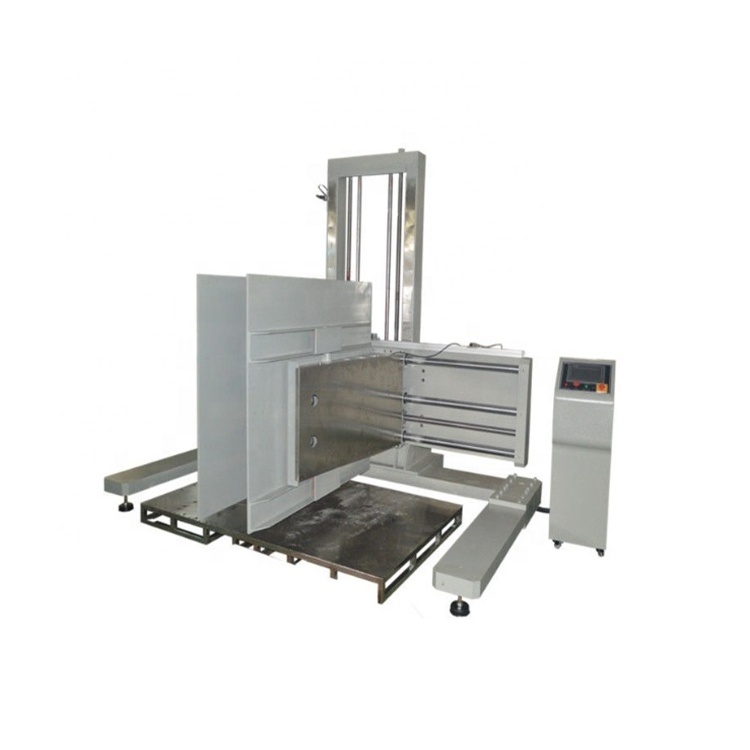

ISTA 6 Clamping Force Testing Machine, ASTM D6055 Package Clamp Handling Tester Horizontal Compression Tester Manufacturer
Summary:
Clamping force testing machine is designed to measure the deflections of product packages and protective capacity of packages for product when suffering level pressure in the process of transportation and storage to improve the quality of product package.
It is suitable for the packing of kitchen ware, furniture, household appliances, toys and other finished products, especially for the clamping strength test of the packing pieces required by SEARS in the United States.
Application Standards:
|
Standard
|
ISTA 6 SERIES: Member Performance Tests. |
|
ASTM D-642 |
|
|
ASTM D6055 |
Speficiations:
|
Max. Force |
500kg (customized) |
|
Motor |
Panasonic Servo Motor |
|
Clamping pressure force |
According to the transport diagram on the test sample, the operator can add 400~3000Lb (adjustable) pressure force on the corresponding surface |
|
Clamping board size |
1200*1200mm |
|
Clamping board adjustable height |
0~1000mm |
|
Lifting speed |
10-305mm/min |
|
Clamping board expansion width |
200~2000mm |
|
Baseboard dimension |
1500*1500mm |
|
Accuracy |
within ±5% |
|
Clamping board requirement |
Make sure the two clamping board are flat, parallel and non-deform under the work condition(2000Pound) and clamp board and land are vertical. Clamping board thickness no less than 25mm. |
|
Controller |
Touch screen |
|
Safety features |
E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat |
|
Power |
AC380V, 50Hz |
Features:
* The clamping force use the combination of ball screw and servo motor, and the output is stable and controllable.
* Clamping force is directly set on the operation interface, real-time display in the working process, real-time monitoring and adjustment of software
* The rise and fall of the plywood use the wire rod motor mechanism, the rise and fall is stable, with the height grating ruler, makes the height control easier and accurate
* Safety Protect: Overload protection, over voltage protection & limited position protection device
