Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
MONA
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
2400*2490*1650mm
-
Weight:
-
350 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field installation, commissioning and training, Online support
-
Name:
-
wheat and rice thresher
-
Product name:
-
bean wheat thresher grain thresher
-
Power type:
-
Diesel or motor or petrol
-
keywords:
-
soybean thresher
-
keywords1:
-
sorghum wheat thresher machine
-
Function:
-
Threshing Paddy Rice
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
Japan
-
Certification:
-
CE ISO
Quick Details
-
Type:
-
Agriculture
-
Use:
-
Thresher, thresher
-
Production Capacity:
-
99%
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
MONA
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
2400*2490*1650mm
-
Weight:
-
350 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field installation, commissioning and training, Online support
-
Name:
-
wheat and rice thresher
-
Product name:
-
bean wheat thresher grain thresher
-
Power type:
-
Diesel or motor or petrol
-
keywords:
-
soybean thresher
-
keywords1:
-
sorghum wheat thresher machine
-
Function:
-
Threshing Paddy Rice
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
Japan
-
Certification:
-
CE ISO

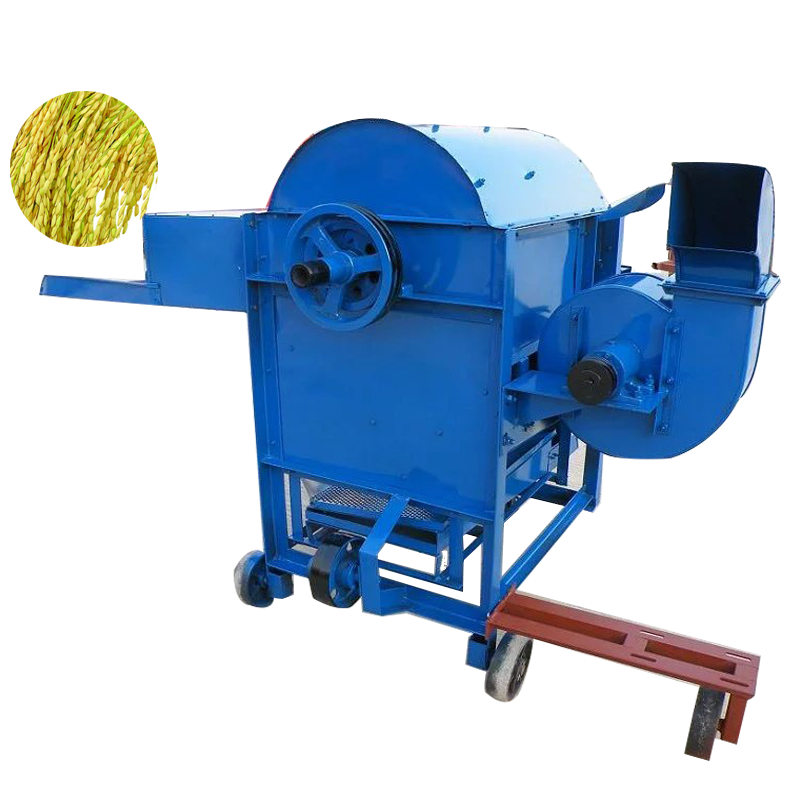

Large Multifunction Sheller Price Big Corn Thresher/sweet Corn Rice Paddy Wheat Thresher/corn Soybean Thresher Machine
Introduction of so
rghum wheat paddy rice thresher
It's main used for threshing of various crops like rice,wheat,corn,soybean,barley,sorghum and millet
etc.It can be driven by diesel to set on the tractor, also can be driven by the electric motor according to your needs, easy use high efficiency working.
Component: racks, concave screen, drum, cover, main fan, the second suction fan, motor, or (diesel), vibrating screen, traction-driven device component, it is used to shell many kinds of grains, such as: sorghum, millet, bean, wheat , rice and so on.
Principle of the
sorghum wheat paddy rice thresher
When the machine in operation, firstly put the crops into machine from feeder, and the crops will
be rubbed, squeezed, collided and shaken by assembly of rack and screen mesh, then to make
the grain seperated from culm, then flowing out from the screen mesh. Finally, the culm
will be thrown out by centrifugation of roller, and threshing is finished .
Note :The client could choose the machine without motor and with motor, diesel engine gasoline
Main parameter of sorghum wheat paddy rice thresher
|
Model |
MN-135 |
MN-125 |
MN-100 |
MN-70 |
MN-50 |
|
Capacity |
1200-1500kg/h |
800-1200kg/h |
750-1000kg/h |
550-600kg/h |
350-400kg/h |
|
Measurement(mm) |
2400x2670x1530 |
2400x2480x1530 |
2300x2000x1500 |
1070x2060x1340 |
1400x900x1050 |
|
(leng x width x height) |
|||||
|
Power(kw) |
13-15 |
11-13 |
7.5-11 |
7.5 |
5.5-7.5 |
|
gross weight(kg) |
500 |
450 |
420 |
260 |
150 |
|
rotating speed(r/min) |
1000 |
1000 |
1060 |
1200 |
1400 |
|
wrap angle of the concave |
240 |
||||
