Quick Details
-
Working Area(mm):
-
300*200*60
-
Voltage:
-
110 / 220V 50HZ
-
Running accuracy(mm):
-
0.01/Axis
-
Repeat accuracy(mm):
-
±0.005/Axis
-
Operation:
-
Teach pendant
-
Glue:
-
One component
-
Dispensing Volume:
-
10-100g/5s(based on 1:1 glue proportion)
-
Dispensing Precision:
-
Glue Amount±1%, Glue Proportion±1%
-
X/Y/Z Working Range:
-
From 300*300*100mm to 600*600*100mm
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BBA
-
Product name:
-
Glue dispensing machine
-
Working Area(mm):
-
300*200*60
-
Voltage:
-
110 / 220V 50HZ
-
Running accuracy(mm):
-
0.01/Axis
-
Repeat accuracy(mm):
-
±0.005/Axis
-
Operation:
-
Teach pendant
-
Glue:
-
One component
-
Dispensing Volume:
-
10-100g/5s(based on 1:1 glue proportion)
-
Dispensing Precision:
-
Glue Amount±1%, Glue Proportion±1%
-
X/Y/Z Working Range:
-
From 300*300*100mm to 600*600*100mm
Product Description
|

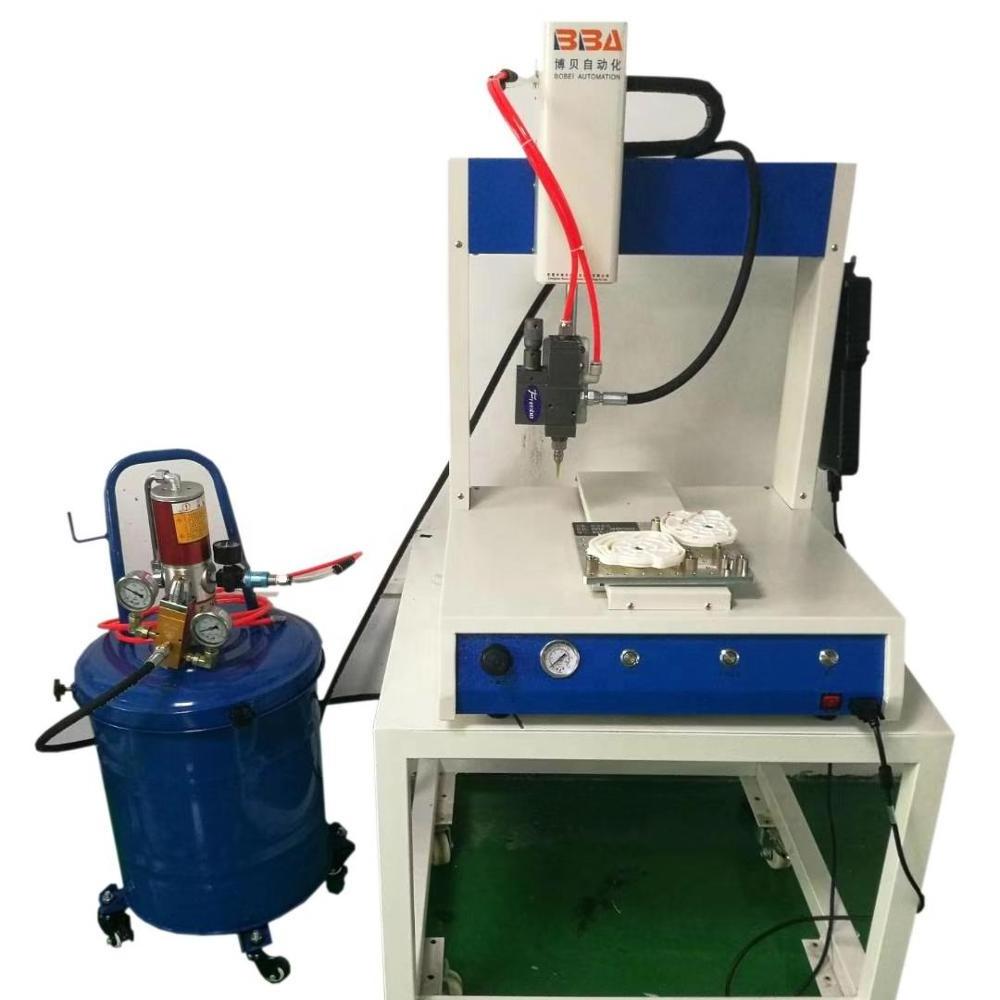

Model
|
BBA-331DJ
|
|
Working Area(mm)
|
300*200*60
|
|
Voltage
|
110 / 220V 50HZ
|
|
Running accuracy(mm)
|
0.01/Axis
|
|
Repeat accuracy(mm)
|
±0.005/Axis
|
|
Operation
|
Teach pendant
|
|
Work condition
|
Temperature 0-40°C / Humidity 20-90%
|
|
Glue
|
One component
|
|
Dispensing Volume
|
10-100g/5s(based on 1:1 glue proportion)
|
|
Dispensing Precision
|
Glue Amount±1%, Glue Proportion±1%
|
|
X/Y/Z Working Range
|
From 300*300*100mm to 600*600*100mm
|
|
XYZ Speed
|
Max 300mm/s
|
|
Patterns
|
Lines, Circles, Arcs, Continuous Paths, 3D Linear Interpolation
|
|
Input Pressure Range
|
0.5-0.8MPa
|
|
Head Seal Pressure
|
MAX≤2.6Mpa
|
|
Adhesive Viscosity
|
<10000cps Discuss for >10000cps
|
|
Control
|
Industrial control board
|
|
Motion Control System
|
Intelligent Motion Control Chip
|
|
Glue Injection Way
|
Pneumatic
|
Adhesive epoxy dispensing system, AB glue dispensing equipment, liquid dispenser robot
Bobang Dispensing Systems has the capability to integrate any of its meter/mix systems with commercially available XY motion systems from most manufacturers. In those cases where the required work envelope falls outside the practical limits of these units, we will design and manufacture a custom system to suit the needs of the application.
Bobang offers custom dispense positioning to fit your applications. Touch panel interface allows the user to custom tailor and save "recipes". Simple single point dispense or complex 3 axis arrays, we can supply the solution.
