Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
China
-
Weight (KG):
-
10 KG
-
Laser Power:
-
20W /30w/ 50w(Optional)
-
Laser source:
-
MAX
-
Keywords:
-
Handheld Laser Marking
-
Laser wavelength:
-
1064nm
-
Applicable Material:
-
Metal Materials
-
Machine type:
-
Laser Fiber Laser Markers
-
Minimum line width:
-
0.01mm
-
Working area:
-
110 * 110mm (optional)
-
Output Power:
-
10%-100%
Quick Details
-
Working Accuracy:
-
0.01mm
-
Graphic Format Supported:
-
PLT, DXF
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
China
-
Weight (KG):
-
10 KG
-
Laser Power:
-
20W /30w/ 50w(Optional)
-
Laser source:
-
MAX
-
Keywords:
-
Handheld Laser Marking
-
Laser wavelength:
-
1064nm
-
Applicable Material:
-
Metal Materials
-
Machine type:
-
Laser Fiber Laser Markers
-
Minimum line width:
-
0.01mm
-
Working area:
-
110 * 110mm (optional)
-
Output Power:
-
10%-100%

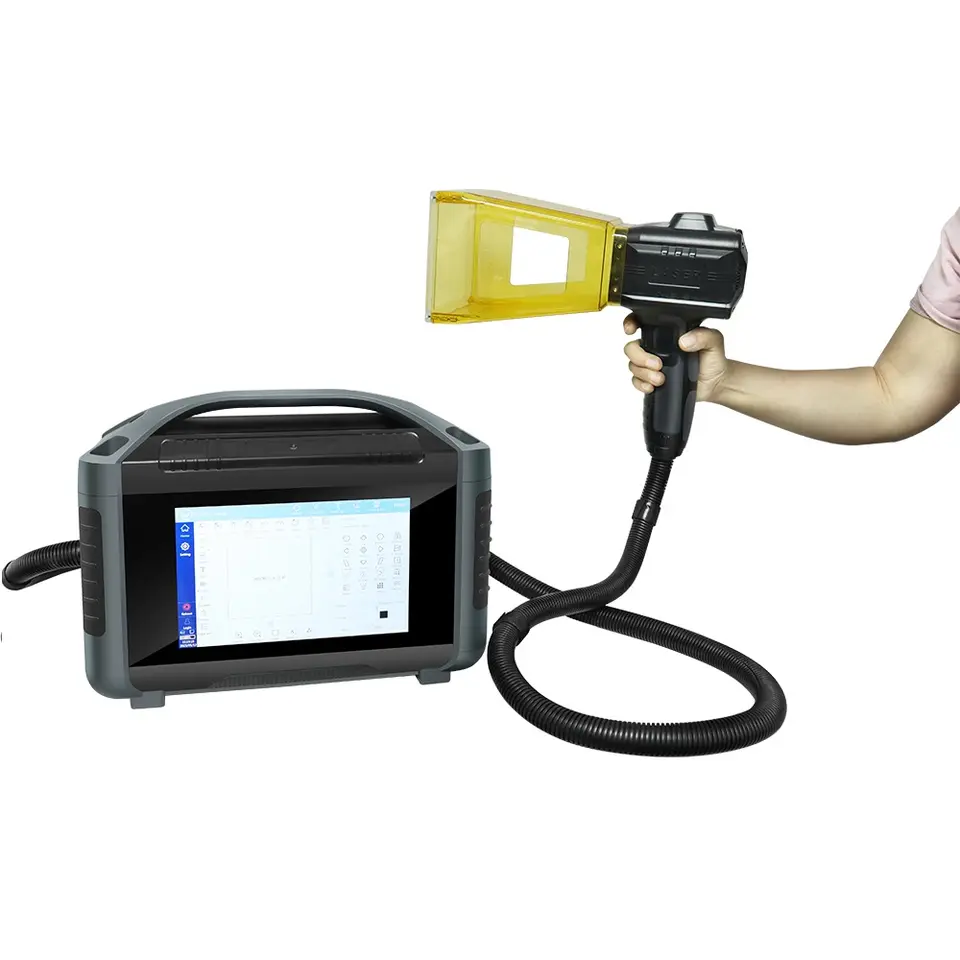

20W 30W 50W Portable laser marking machine handheld laser marker with battery and Plug
Product Introduction
This mini handheld fiber laser marking machine creatively adopts miniaturization and lightweight design, which greatly reduces the volume and weight of the whole machine and greatly improves its portability, making it more suitable for all kinds of mobile marking scenes. This machine is very compact, very light, simple to operate, worry-free and labor-saving. Unlike most products on the market, this machine supports up to 50W, so it has excellent performance. More importantly, it supports long characters model, which is very rare in similar products.
Product parameter
|
Model |
DPG-20 |
DPG-30 |
DPG-50 |
|
Output power |
20W |
30W |
50W |
|
Single pulse energy |
0.7mJ |
0.7mJ |
1.1mJ |
|
Pulse frequency range |
30~60kHz |
40~60kHz |
45~170kHz |
|
Laser marking range
|
70x70mm 100x100mm( selectable ) |
||
|
Wavelength |
1064nm |
||
|
Focusing lens |
130mm |
||
|
Marking speed |
≤7000mm/s |
||
|
Master control |
Integrated motherboard, 8 "capacitors fully fit the screen |
||
|
Operation system |
Linux System |
||
|
Marking line type |
Lattice, vector |
||
|
Marking line width |
0.03mm |
||
|
Repeated positioning accuracy |
0.01mm |
||
|
Positioning mode |
Red light positioning, focus |
||
|
Print speed |
800 characters (related to material, print content) |
||
|
Typeface |
Chinese and English, numerals, traditional Chinese and other standard character library |
||
|
File formats |
BMP,DXF,HPGL,JPEG,PLT |
||
|
Bar code |
CODE39,CODE128,CODE126,QR |
||
|
Power source |
· 110V/220V AC,( Optional lithium power supply 216wh) |
||
|
Overall power consumption |
145~250W |
||
|
Operating ambient temperature |
0~40℃ |
||
|
Machine weight |
6~8.8kg |
||
|
Dimension |
chassis :310x234.5x180mm, 310x271.5x180mm hand head :254.9x240.5x124mm |
||
