Quick Details
-
Voltage:
-
220/380V
-
Dimension(L*W*H):
-
2650x1050x2100 mm
-
Weight (KG):
-
2300
-
Power (kW):
-
1.5
-
After-sales Service:
-
Engineers available to service machinery overseas
-
Product name:
-
Cylinder block surface grinding machine
-
Max. Grinding Length:
-
1300 mm
-
Power(W):
-
1.5/2.4 kw
-
Max. Grinding Diameter:
-
350 mm
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
1 year
-
Certification:
-
CE ISO
-
Name:
-
cylinder grinding machine for engine
-
Keywords:
-
rectificadora para vlvulas
Quick Details
-
Year:
-
latest day
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
TIMAC TIMEAY
-
Voltage:
-
220/380V
-
Dimension(L*W*H):
-
2650x1050x2100 mm
-
Weight (KG):
-
2300
-
Power (kW):
-
1.5
-
After-sales Service:
-
Engineers available to service machinery overseas
-
Product name:
-
Cylinder block surface grinding machine
-
Max. Grinding Length:
-
1300 mm
-
Power(W):
-
1.5/2.4 kw
-
Max. Grinding Diameter:
-
350 mm
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
1 year
-
Certification:
-
CE ISO
-
Name:
-
cylinder grinding machine for engine
-
Keywords:
-
rectificadora para vlvulas
One-Stop Shopping
You can click on the picture to view the products you are interested in
Summary
1.
The machine is mainly used for grinding and milling the connecting surface between cylinder body and cylinder cover of every engine (of automobiles, tractors, tanks and ships).
2.
The machine adopt (1400/700r/min) two-speed motor 1400r/min be used to grind the surface of cylinder body or cylinder cover, which be made by cast-iron material. And 700r/min be used to milled the surface which be made by aluminium material.
Product Description

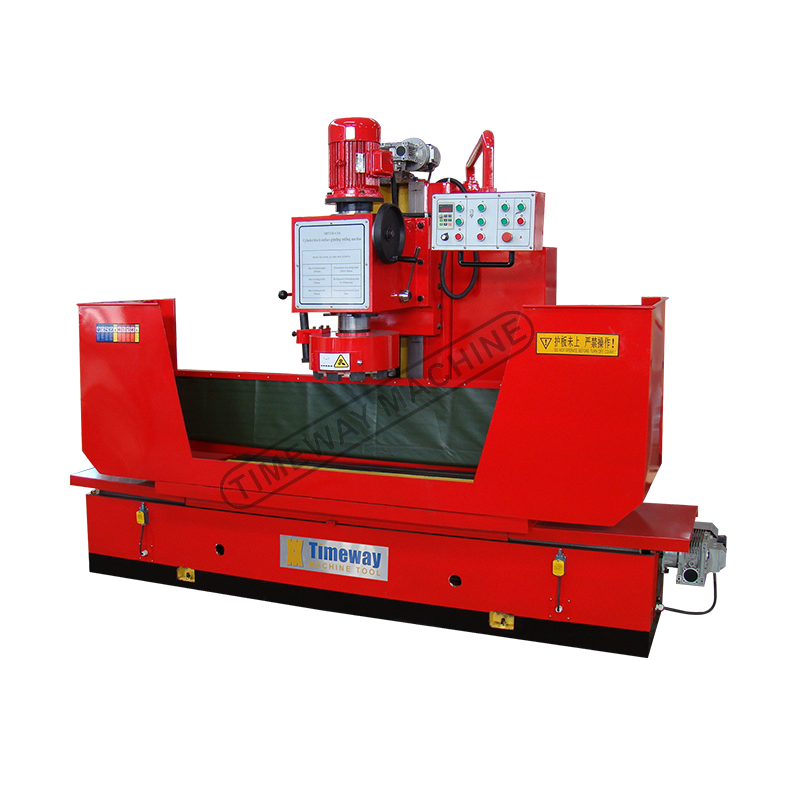

Cylinder Block Surface Grinding Machine
Feature：
1.
The machine can also grinding the surface of other parts if the electromagnetic chuck be equipped.
2.
Pulley adopt with unloading to make the main spindle only usutain twisting moment.
3.
The machine tool working table selects and uses the Y801-4 electric motor drive by rotating, on host face ply, the potentiometer whorl twists and to gain right feed speed, easy to operate reliable.
Specification
|
Specification
|
3M9735Ax130
|
3M9735Ax150
|
|
Working table size
|
1300x500mm
|
1500x500 mm
|
|
Max. length of grinding
|
1300 mm
|
1500 mm
|
|
Max. width of grinding
|
350 mm
|
350 mm
|
|
Max height of grinding
|
600 mm
|
800 mm
|
|
Grinding wheel disk diameter
|
360 mm
|
360 mm
|
|
Spindle speed
|
1400/700 r/min
|
1400/700 r/min
|
|
Power of the main motor
|
1.5/2.4 kw
|
1.5/2.4kw
|
|
N.W. / G.W.
|
2800 / 3100 kg
|
3000 / 3300 kg
|
Client feedback
Our Services
1. Free replacing parts available in the warranty period.
Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
