Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Shelly
-
Model Number:
-
Shelly RGBW2
-
Mechanical Life:
-
5 years
-
Product Name:
-
Wifi LED Dimmer Switch
-
Power supply DC:
-
12V/ 24V
-
Channels:
-
4 Channel
-
Operational temperature:
-
0℃ to +40℃
-
Wireless/WiFi Protocol:
-
802.11 b/g/n 2.4GHZ
-
Power measurement:
-
Yes
-
Dimming:
-
Yes
-
APP:
-
ShellyCloud
-
Integration:
-
Alexa, Google Assistant, Smart Things, etc.
-
Certificate:
-
CE, RoHS
Quick Details
-
Max. Current:
-
12A
-
Max. Voltage:
-
24V
-
Customized support:
-
Support
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Shelly
-
Model Number:
-
Shelly RGBW2
-
Mechanical Life:
-
5 years
-
Product Name:
-
Wifi LED Dimmer Switch
-
Power supply DC:
-
12V/ 24V
-
Channels:
-
4 Channel
-
Operational temperature:
-
0℃ to +40℃
-
Wireless/WiFi Protocol:
-
802.11 b/g/n 2.4GHZ
-
Power measurement:
-
Yes
-
Dimming:
-
Yes
-
APP:
-
ShellyCloud
-
Integration:
-
Alexa, Google Assistant, Smart Things, etc.
-
Certificate:
-
CE, RoHS

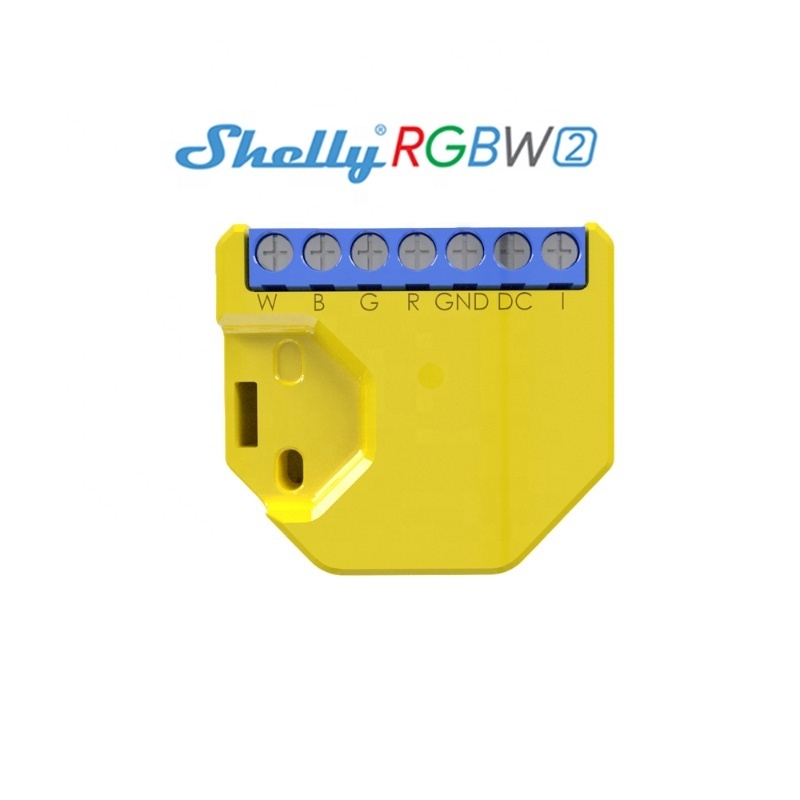

Wi-Fi-operated relay
for LED smart strips
Make your LED strips smart in one easy step. Shelly RGBW2 can connect like any LED controller and allows you to manage RGB+W, 4x single colour LED strips or any LED dimmable lights directly from your mobile device. Control 12-24 VDC, dim, power measure, and choose from a huge palette of RGB colours. Fast and easy to set up, it is designed to be easily fitted behind a built-in light switch, socket, junction, or electrical box.
Lights that follow the time of day
Use Shelly RGBW2 smart scheduling functions and set your LED strip to shine in a different colour based on the hour of the day.
That way you can start your day with bright blue light that resembles the morning sky and end it with fiery orange - the colour of the sunset. Colour indicators can also be used to remind you of unlocked doors, forgotten appliances, or important events.
That way you can start your day with bright blue light that resembles the morning sky and end it with fiery orange - the colour of the sunset. Colour indicators can also be used to remind you of unlocked doors, forgotten appliances, or important events.
|
Interfaces
|
|
|
|
|
4 ways PWM: R/G/B/W
3 ways PWM: R/G/B
4 ways PWM: 4xWhite strips or 4x12/24v led bulbs
|
|
|
Interface
|
Reset button, AC 230V switch input
|
|
|
AC switch
|
On/OFF and Dimming function
|
|
|
WiFi Parameters and Features
|
|
|
|
WiFi work mode
|
STA/AP/STA+AP/Smart Config
|
|
|
Security Specialty
|
None,WEPWPA-PSK,WPA2-PSK (TKIP/AES)
|
|
|
WiFi Standard
|
IEEE 802.11b/g/n
|
|
|
|
802.11b (CCK) 11Mbps: 20+/-1.5dBm
|
|
|
|
802.11g (OFDM) 54Mbps: 15.5+/-1.5dBm
|
|
|
|
802.11n(HT20@MCS7) 72.2Mbps: 14.5+/-1.5dBm
|
|
|
Frequency
|
2.4GHz-2.5GHz(2400M-2483.5M)
|
|
|
Antenna
|
Embedded
|
|
|
Power Input/output
|
|
|
|
DC Power Input
|
12-24V
|
|
|
DC Power Output 12V
|
144W - combined power; 45W - per channel
|
|
|
DC Power Output 24V
|
288W - combined power; 90W - per channel
|
|
|
Standby Current
|
≤50mA
|
|
|
Work environment
|
|
|
|
Working temperature
|
-10°C~50°C
|
|
|
Work humidity
|
5% to 95% (No condensing)
|
|
|
WiFi Range
|
Indoor: 35m, Outdoor: 60m (depending on the environment)
|
|
|
Dimensions(HxWxL)
|
43x38x14 mm
|
|
