DN80 stainless steel cast steel water pump flow control valve diaphragm water pump control valve

DN80 stainless steel cast steel water pump flow control valve diaphragm water pump control valve

FOB Reference Price: Get Latest Price

≥1 Pieces

US $192

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: 106X-16P

Brand Name:: RCV

Quick Details

Port Size:: DN50-DN300

Warranty:: 2 years

Place of Origin:: Anhui, China

Model Number:: 106X-16P

Brand Name:: RCV

Products Description

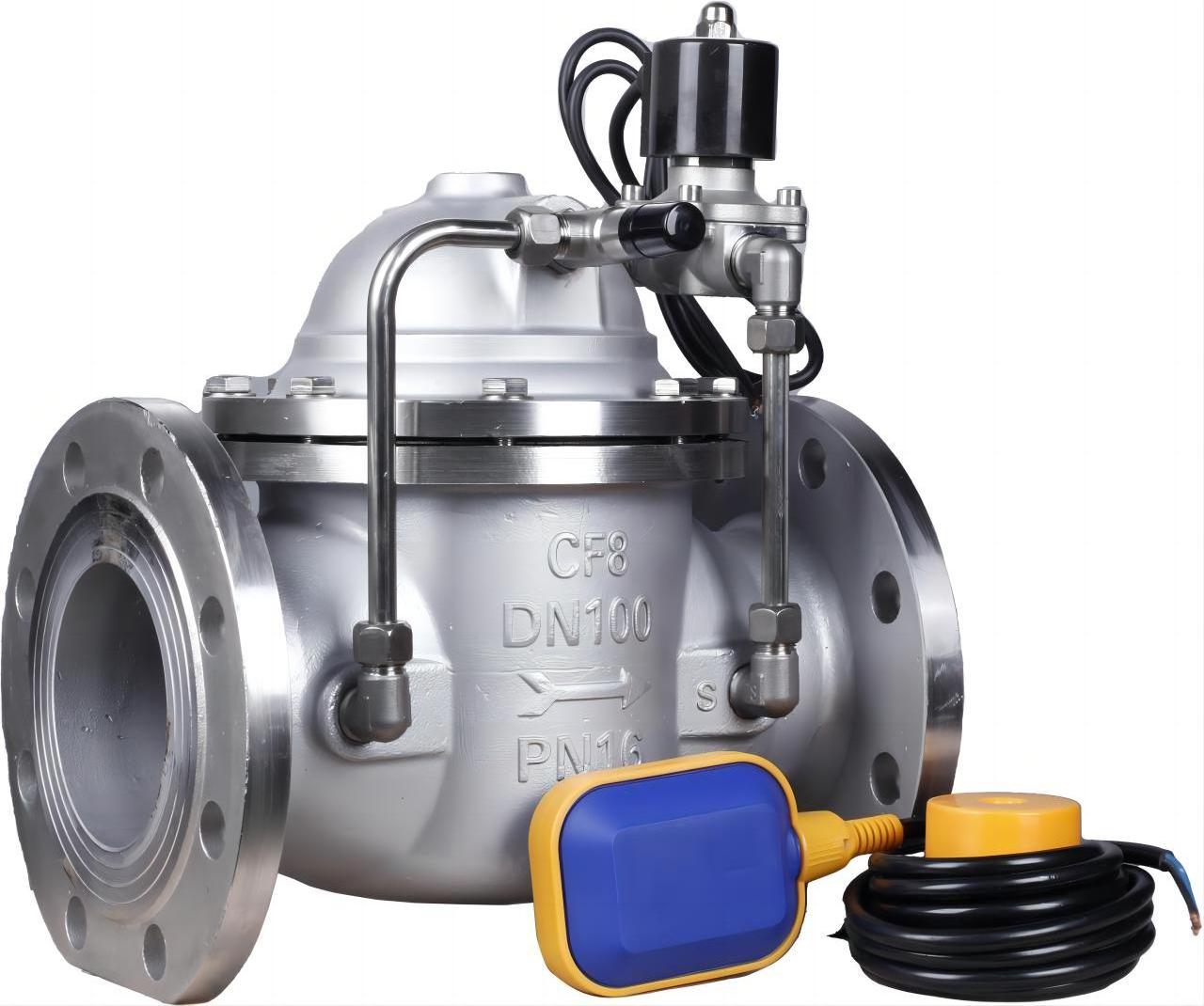

Remote control float valve is a hydraulic operated valve that combines multiple functions. Mainly installed at the inlet of a water pool or elevated water tower. When the water level reaches the set height, the main valve is controlled by a floating ball guide valve to close the inlet and stop supplying water; When the water level drops, the main valve is controlled by a float switch to open the water inlet and inject water into the pool, achieving automatic replenishment. Accurate liquid level control, not affected by water pressure interference; The 100X diaphragm type remote control float valve can be installed at any position according to the height and usage space of the water tank. It is easy to maintain, debug, and inspect, reliable in sealing, and has a long service life. Diaphragm valves have reliable performance, high strength, and flexible operation, and are suitable for pipelines with a diameter of DN450mm or less. It is recommended to use piston type for diameters above DN500mm.

Structural Characteristics

1. The valve body adopts a full channel and streamlined design, with low fluid resistance and high flow rate. 2. The connection between the body, cover, and piston rod is double sealed by a sealing gasket and a sealing ring, with no external leakage. 3. The valve body, piston cylinder, and piston are double guided, ensuring smooth and reliable movement. 4. All stainless steel piston cylinder, integral cast piston, NBR sealing ring. The perfect combination greatly extends the service life. 5. Introducing advanced technology for detachable valve seats, with clever structures, innovative ideas, and convenient maintenance and replacement. 6. For piston cylinders with guide holes, increase the resistance appropriately to make the piston movement more stable.
