Quick Details
-
Weight:
-
14.5 KG
-
Marketing Type:
-
Other
-
Core Components:
-
Top sub, External Cylinder, Drive Chuck
-
Drilling Diameter:
-
140mm, 146mm, 152mm, 165mm, 178mm
-
Name:
-
Middle Air Pressure Dth Hammers Without Foot Valve
-
Bit Shank:
-
BR1/BR2/BR3
-
External Diameter:
-
54mm/62mm/82mm
-
Length without bit:
-
707mm/868mm/889mm
-
Recommended Rotation Speed:
-
25-40r/min
-
Working Pressure:
-
0.7-1.8 Mpa
-
Achine Type:
-
Drilling Tool
-
Material:
-
Alloy Steel
-
Application:
-
Water Well Drilling Rock Drilling Mining Quarry Or Water Well Drilling
-
Local Service Location:
-
China
Quick Details
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Csdrill
-
Dimension(L*W*H):
-
707mm/868mm/889mm
-
Weight:
-
14.5 KG
-
Marketing Type:
-
Other
-
Core Components:
-
Top sub, External Cylinder, Drive Chuck
-
Drilling Diameter:
-
140mm, 146mm, 152mm, 165mm, 178mm
-
Name:
-
Middle Air Pressure Dth Hammers Without Foot Valve
-
Bit Shank:
-
BR1/BR2/BR3
-
External Diameter:
-
54mm/62mm/82mm
-
Length without bit:
-
707mm/868mm/889mm
-
Recommended Rotation Speed:
-
25-40r/min
-
Working Pressure:
-
0.7-1.8 Mpa
-
Achine Type:
-
Drilling Tool
-
Material:
-
Alloy Steel
-
Application:
-
Water Well Drilling Rock Drilling Mining Quarry Or Water Well Drilling
-
Local Service Location:
-
China

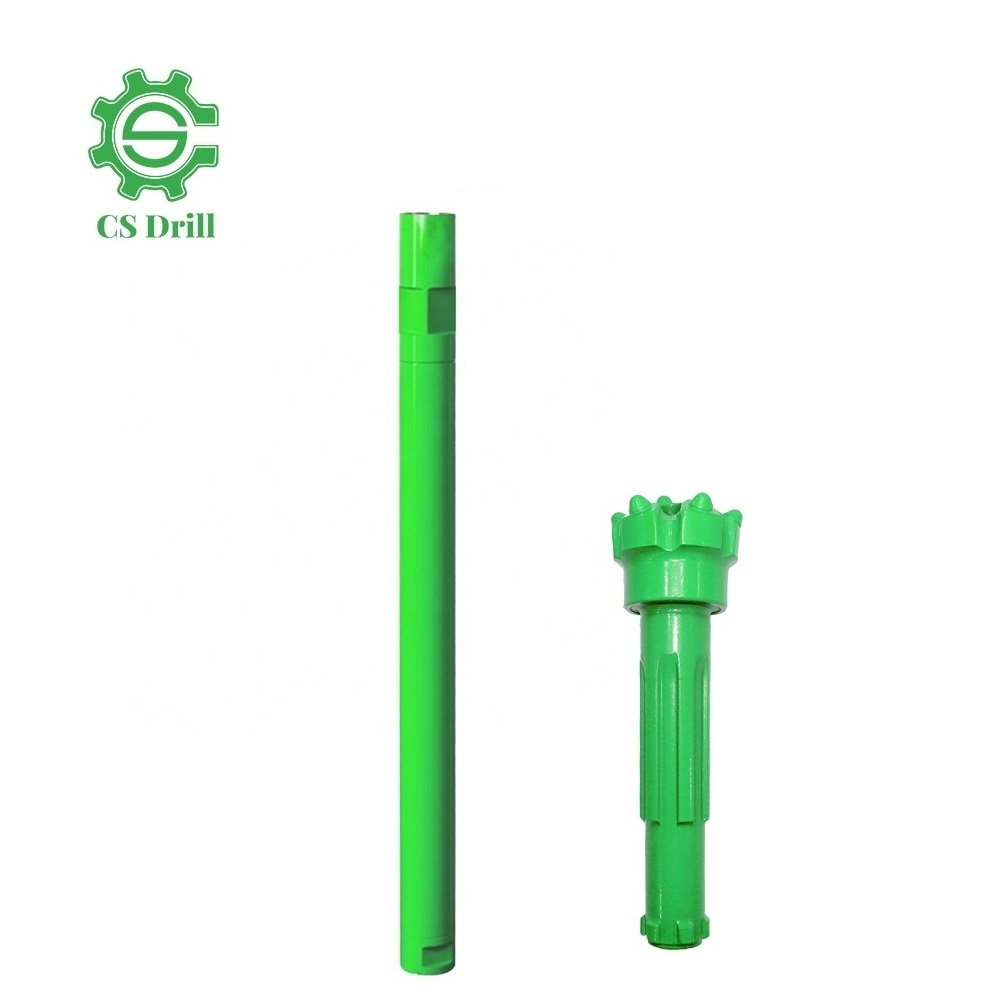

Middle air pressure DTH hammer BR1/BR2/BR3 Drilling machine
parts
Product Description
The BR1 and BR2 are both valved type hammers designed for high performance at low operating air pressures. Simplicity of design,ease of service and low air consumption are all factors which combine to make these hammers robust and reliable drilling tools.
Both hammers are available as standard with box backheads, RD40 for the BR1 and RD50 for the BR2. However alternative
backheadoptions are available on request.
The BR1 and BR2 hammers both incorporate a positive fitting check valve to guard against the ingress of ground water debris when the air is shut off.
|
Length
(without bit)
|
Weight (without bit)
|
External Diameter
|
Bit Shank
|
Hole range
|
|
|
|||
|
707mm
868mm 889mm |
10.0KG
14.5KG 26.0KG |
φ54mm
φ62mm φ82mm |
BR1
BR2 BR3 |
φ64-φ76mm
φ70-φ90mm
φ90-φ110mm
|
RD40 BOX
RD50 BOX API 2 3/8‘’ Reg |
|
|||
|
Working Pressure
|
Impact rate at 1.5Mpa
|
|
|
Air consumption
|
|
|
|||
|
|
|
|
|
0.7Mpa
|
1.0Mpa
|
1.4Mpa
|
|||
|
0.7-1.8Mpa
|
25HZ
|
25-40r/min
|
|
2.5m³/min
|
4.5m³/min
|
6.0m³/min
|
|||
Advantages :
1. Out of the trouble of foot valve fracture and expansion and contraction.
2. lower energy consumption and higher impact frequency.
The drilling speed is 15%-30% higher than the one with foot valve.
3. Simple structure, reliable parts, long life, easy and cheap maintenance.
4. Lower air and oil consumption. The oil consumption is about 10% lower than the one with foot valve.
1. Out of the trouble of foot valve fracture and expansion and contraction.
2. lower energy consumption and higher impact frequency.
The drilling speed is 15%-30% higher than the one with foot valve.
3. Simple structure, reliable parts, long life, easy and cheap maintenance.
4. Lower air and oil consumption. The oil consumption is about 10% lower than the one with foot valve.
Contact us
Company Introduction
Certificate
Application
Packing & Delivery
Using ply-wooden cases and pallet for package to protect the products and avoid the damaging during transportation. Also we can customize package according to your special requests.
