Agriculture greenhouse/poultry farm ventilating systems ventilation fan with CE
Agriculture greenhouse/poultry farm ventilating systems ventilation fan with CE
Agriculture greenhouse/poultry farm ventilating systems ventilation fan with CE
Agriculture greenhouse/poultry farm ventilating systems ventilation fan with CE
Agriculture greenhouse/poultry farm ventilating systems ventilation fan with CE
Agriculture greenhouse/poultry farm ventilating systems ventilation fan with CE
Agriculture greenhouse/poultry farm ventilating systems ventilation fan with CE
Agriculture greenhouse/poultry farm ventilating systems ventilation fan with CE

Agriculture greenhouse/poultry farm ventilating systems ventilation fan with CE

FOB Reference Price: Get Latest Price
≥1 Pieces
US $100
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Model Number:
MHC- Push pull exhaust fan
Place of Origin:
Shandong, China
Brand Name:
Weifang Muhe
Blades quantity:
6 pcs
Frame materials:
Galvanized sheet
Application model:
Poultry house, greenhouse, livestock, workshop
Motor:
China local motor or siemens motor
Bearing:
Double-row
Blades material:
Stainless steel
Belt:
Aluminum-magnesium alloy
Product name:
Muhe brand poultry ventilation fan

Quick Details

Size:
Large
Type:
Solar Agricultural Greenhouses
Cover Material:
Galvanized sheet and stainless steel
Model Number:
MHC- Push pull exhaust fan
Place of Origin:
Shandong, China
Brand Name:
Weifang Muhe
Blades quantity:
6 pcs
Frame materials:
Galvanized sheet
Application model:
Poultry house, greenhouse, livestock, workshop
Motor:
China local motor or siemens motor
Bearing:
Double-row
Blades material:
Stainless steel
Belt:
Aluminum-magnesium alloy
Product name:
Muhe brand poultry ventilation fan
Product Description

Description/ Specification of exhaust fan :


Frame:

galvanized steel sheet,  anti-corrosive, durable , zinc thickness 180g/m2. Thickness: 1.0 mm for the top, 0.8mm for the other sides.


Blade:

6 pieces of mirror finished stainless steel blades, attractive and durable with big air volume , passing the homeostasis test to ensure the air volume keeping the same as the very beginning during the operational life span, low noise, no distortion, no broken, Thickness: 1.2mm.


Motor:

Siemens motor or Chinese motor, high efficient and energy-saving with CCC certificate. Protection class: IP55, Insulation class: F. The voltage, HZ, phase can be customized.
Shutter:

made of high strength galvanized steel sheet , dustproof and waterproof. Thickness: 0.45mm .

Centrifugal system:

made of high quality nylon , opening the shutters at complete 90 degree to ensure the lowest air resistance and biggest air volume. When it is close, the tight sealing can efficiently block light and wind into the poultry house. The fasteners of centrifugal system are copper rivets, wear-resisting, no rust, and flexible.

Handles: designed as recessed type, easy for carry, transport and have no effect on installation and outlook.


Belt tensioner: made of high quality nylon or aluminium-magnesium alloy , avoiding belt loosening or dropping off, extending service life and avoiding distortion, waterproof .


Belt Pulley: made of aluminium-magnesium alloy by injection moulded , reducing the weight of blade and impeller, high corrosion resistance. Blast-sanding treatment for attractive appearance, eliminating internal stress to improve its own rigidity and stability, high strength.

Bearing: imported double-row bearing, super mute, high intension and durable, adopting special waterproof design, high intension, low noise, maintenance-free and long service life.


Belt: Mistubishi belt .



Technical parameters :

Model Diameter blades(mm) Blades speed(rpm) Motor speed(rpm) Air flow(m3/h) Total presure(Pa) Motor Outer side(mm)
MHC-900(36") 900 650 1400 28000 60 0.55KW380V50HZ 1000×1000×450
MHC-1000(40") 1000 600 1400 35000 70 0.75KW380V50HZ 1100×1100×450
MHC-1250(50") 1250 440 1400 44000 56 1.1KW380V50HZ 1380×1380×450

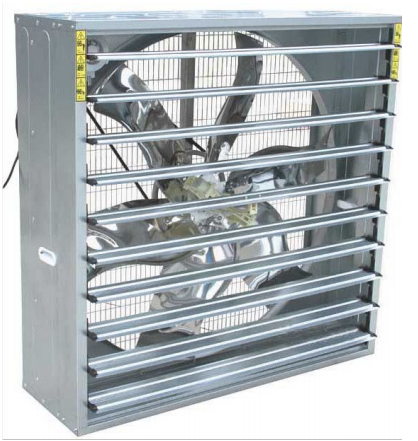

Exhaust fan picture:

Exhaust fan application:

Certificate:

Company info:

Weifang Muhe Machinery Co.,Ltd has been focusing on ventilation, cooling, humidification and heating equipments.

Our company is located in Qingzhou city, Shandong province. It covers an areaa of 20000m2, with 300 staff.
At present, our company can produce poultry fan, exhaust fan, gardening fan, circulation fan, evaporative cooling pad, auto coal, electric, gas, hot water heater, which contains 10 series of more than 100 varieties of specifications and now the production capacity is 30000 pieces and cooling equipments 2000 pieces of heaters.
These products are widely used in greenhouse, poultry house, livestock and workshop.
The company has pass the ISO9001:2000 and CE certificate.

Now we have 20 selling-networks in China and exports to Asia, EU, Africa and America etc more than 40 countries and areas.

We stick to our consistent aim of " Admiring customers and relying on quality" and offers high quality products and perfect service to society.

Our services:

  • 100% T/T is perfect. But you can also 30% T/T in advance, the balance after checking the B/L copy.

  • We can offer you the samples and offer the best products with competitive price.

  • Price items: EXW, FOB Qingdao, CFR or CIF.
  • Offer you the products with high quality and reasonable price.
  • Long service life about the products.
  • We can offer the whole equipments for poultry house and greenhouse.
  • Good after-sales service.
  • 24 hours online service.
  • Delivery time is short, convenient transportation.
  • Have experience in exporting countries in the world.
  • Online exchange of various chat tools.
