Quick Details
-
Brand Name:
-
Yuanquan
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Certification:
-
ce
Quick Details
-
Material Capabilities:
-
cashmere
-
Weight (KG):
-
2000
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Yuanquan
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Certification:
-
ce
Product description:

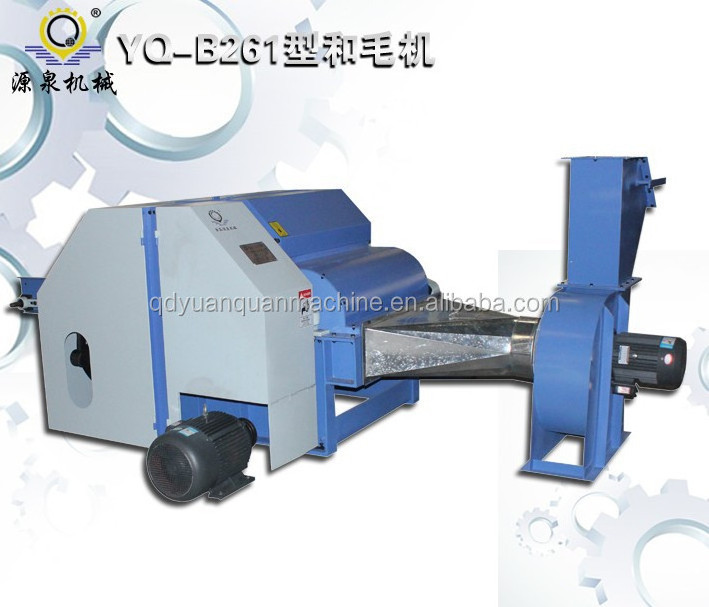

1 This machine can open all kinds of cleaned hair, velvet, plant fiber, chemical fiber, remove the debris, and added proper amount of emulsified oil, make the fiber loose, increase the softness, reduce electrostatic, ready for next carding or spinning.
Specifications:
1 right hand
2 cylinder width:900mm
3 Dimensions :
Main engine: 2315mm*1650mm*1250mm (Not including motor installation position)
4Weight of machine:2Tons
5 Power
|
|
Motor type |
Kw/h |
r/min |
quantity |
|
Main engine |
YQ-DJ-5.5-730 |
5.5kw |
730r/min |
1 |
|
Fan |
YQ-DJ-4.0-1400 |
4.0kw |
1400r/min |
1 |
|
Refueling device |
YQ-DJ-1.1-1440 |
1.1kw |
1440r/min |
1 |
6 Main parts parameter:
|
Name |
diameter |
speed |
|
Feed roller |
120mm |
21.62r/min |
|
.cylinder |
650mm |
347.6 r/min |
|
doffer |
400mm |
834.28r/min |
|
Working roll |
158mm |
18.67r/min |
|
Stripping roller |
120mm |
22.8r/min |
7 Output:500-800kg/h
