Quick Details
-
Grade:
-
Q195 Q235 45# 60# 70# 72A 72B 80# 82B
-
Standard:
-
AiSi, ASTM, bs, DIN, GB, JIS
-
Place of Origin:
-
Shandong, China
-
Model Number:
-
Q195 Q235 45# 60# 65# 70# 80# 82B
-
Product name:
-
Galvanized Steel Wire Rope
-
Color:
-
Silver Bright
-
Surface:
-
Galvanised Zinc
-
Material:
-
Reliable Raw Material
-
Key word:
-
6mm galvanized steel wire
-
Package:
-
Standard Seaworth Packing
-
Diameter:
-
1mm-16mm
-
MOQ:
-
1 Ton
-
Technique:
-
Hot Rolled Cold Rolled
-
Featrue:
-
High Tension
Quick Details
-
Steel Grade:
-
Q195 Q235 45# 60# 65# 70# 80# 82B
-
Type:
-
galvanized
-
Tolerance:
-
±1%
-
Grade:
-
Q195 Q235 45# 60# 70# 72A 72B 80# 82B
-
Standard:
-
AiSi, ASTM, bs, DIN, GB, JIS
-
Place of Origin:
-
Shandong, China
-
Model Number:
-
Q195 Q235 45# 60# 65# 70# 80# 82B
-
Product name:
-
Galvanized Steel Wire Rope
-
Color:
-
Silver Bright
-
Surface:
-
Galvanised Zinc
-
Material:
-
Reliable Raw Material
-
Key word:
-
6mm galvanized steel wire
-
Package:
-
Standard Seaworth Packing
-
Diameter:
-
1mm-16mm
-
MOQ:
-
1 Ton
-
Technique:
-
Hot Rolled Cold Rolled
-
Featrue:
-
High Tension

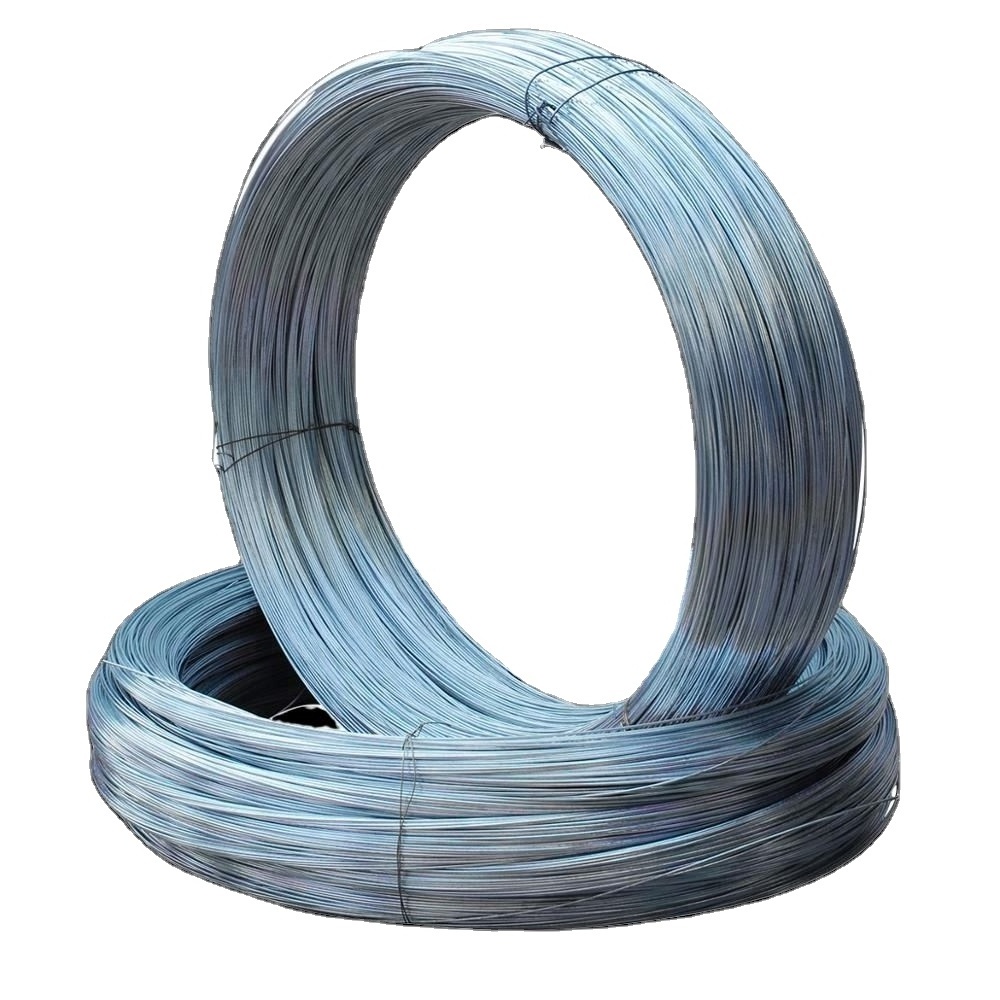

Galvanized Iron Wire
is designed to prevent rusting and shiny silver in color. It is solid,durable and extremely versatile, it is widely used by landscapers, craft makers, building and constructions,ribbon manufacturers, jewelers and contractors.Its aversion to rust makes it extremely useful around the shipyard,in the backyard, etc. Galvanized wire is divided into hot dipped galvanized wire and cold galvanized wire (electro galvanized wire). Galvanized wire has good toughness and flexibility, the maximum amount of zinc can reach 350 g /sqm. With zinc coating thickness, corrosion resistance and other characteristics.
1)Hot-dip galvanized iron wire
Hotdip galvanized iron wire is made with choice low carbon steel wire, through wire drawing, acid washing and rust removing,annealing and coiling. It’s mainly used in construction, handicrafts, woven wire mesh, express way fencing mesh, packaging of
products and other daily uses.
Size range: BWG 8-BWG 22
Zinc coat: 45-180g/m2
Tensile strength: 350-550N/mm2
Elongation: 10%
products and other daily uses.
Size range: BWG 8-BWG 22
Zinc coat: 45-180g/m2
Tensile strength: 350-550N/mm2
Elongation: 10%
2)Electro galvanized iron wire
Electro galvanized iron wire is made with choice mild steel, through wire drawing, wire galvanizing and other processes. Electro galvanized iron wire has the characteristics of thick zinc coating, good corrosion resistance, firm zinc coating, etc. It’s mainly used in construction, express way fencing, binding of flowers and wire mesh weaving.
Size range: BWG 8-BWG 22, BWG 8-BWG 28
Zinc coat: 10-18g/m2
Tensile strength: 350-550N/mm2
Elongation: 10%
Size range: BWG 8-BWG 22, BWG 8-BWG 28
Zinc coat: 10-18g/m2
Tensile strength: 350-550N/mm2
Elongation: 10%
Details Images
Product Parameters
|
Product Name
|
Galvanized Wire
|
|
Material
|
Q195 / Q235
|
|
Wire Diametre
|
0.5--4.1mm
|
|
Zinc Coating
|
10-230g/m2
|
|
Wire Gauge
|
0.19mm-3.8mm
|
|
Tensile Strength
|
400-500MPA
|
|
Finish
|
Electro Galvanized, Hot Dipped Galvanized
|
|
Standard
|
AISI, ASTM, BS, DIN, GB, JIS.ect
|
|
Surface
|
Galvanized
|
|
MOQ
|
1 Ton, Samples available
|
|
Application
|
Mainly used in producing wire mesh products like welded wire mesh, hexagonal wire mesh, crimped wire mesh, basket, fence mesh panel, U-type wire and etc.
|
|
Delivery time
|
Within 7 days, the time depends on the quantity
|
|
Packaging
|
1.Plastic film inside and woven bag outside
2.Plastic film inside and hessian bag outside
3.Other special package according to customers' requirements.
|
|
Gauge
|
SWG
|
|
BWG
|
|
AWG
|
|
|||
|
|
Inch
|
mm
|
Inch
|
mm
|
Inch
|
mm
|
|||
|
8
|
0.16
|
4.046
|
0.165
|
4.191
|
0.1285
|
3.264
|
|||
|
9
|
0.144
|
3.658
|
0.148
|
3.759
|
0.1144
|
2.906
|
|||
|
10
|
0.128
|
3.215
|
0.134
|
3.404
|
0.1019
|
2.588
|
|||
|
11
|
0.116
|
2.946
|
0.12
|
3.048
|
0.0907
|
2.305
|
|||
|
12
|
0.104
|
2.642
|
0.109
|
2.769
|
0.0808
|
2.053
|
|||
|
13
|
0.092
|
2.337
|
0.095
|
2.413
|
0.072
|
1.828
|
|||
|
14
|
0.08
|
2.032
|
0.083
|
2.108
|
0.0641
|
1.628
|
|||
|
15
|
0.072
|
1.829
|
0.072
|
1.829
|
0.0571
|
1.45
|
|||
|
16
|
0.064
|
1.626
|
0.065
|
1.651
|
0.0508
|
1.291
|
|||
|
17
|
0.056
|
1.422
|
0.058
|
1.473
|
0.0453
|
1.15
|
|||
|
18
|
0.048
|
1.219
|
0.049
|
1.245
|
0.0403
|
1.024
|
|||
|
19
|
0.04
|
1.016
|
0.042
|
1.067
|
0.0359
|
0.912
|
|||
|
20
|
0.036
|
0.914
|
0.035
|
0.839
|
0.032
|
0.812
|
|||
|
21
|
0.032
|
0.813
|
0.032
|
0.831
|
0.0285
|
0.723
|
|||
|
22
|
0.028
|
0.711
|
0.028
|
0.711
|
0.02535
|
0.644
|
|||
|
23
|
0.024
|
0.61
|
0.025
|
0.635
|
0.02256
|
0.573
|
|||
|
24
|
0.022
|
0.559
|
0.022
|
0.559
|
0.02011
|
0.511
|
|||
|
25
|
0.02
|
0.508
|
0.02
|
0.508
|
0.01791
|
0.455
|
|||
|
26
|
0.018
|
0.457
|
0.018
|
0.457
|
0.01594
|
0.405
|
|||
Product Testing
Application
Product packaging
1.Plastic film inside and woven bag outside.
2.Other special package according to customers' requirements.
