Quick Details
-
Place of Origin:
-
Hubei, China
-
Product name:
-

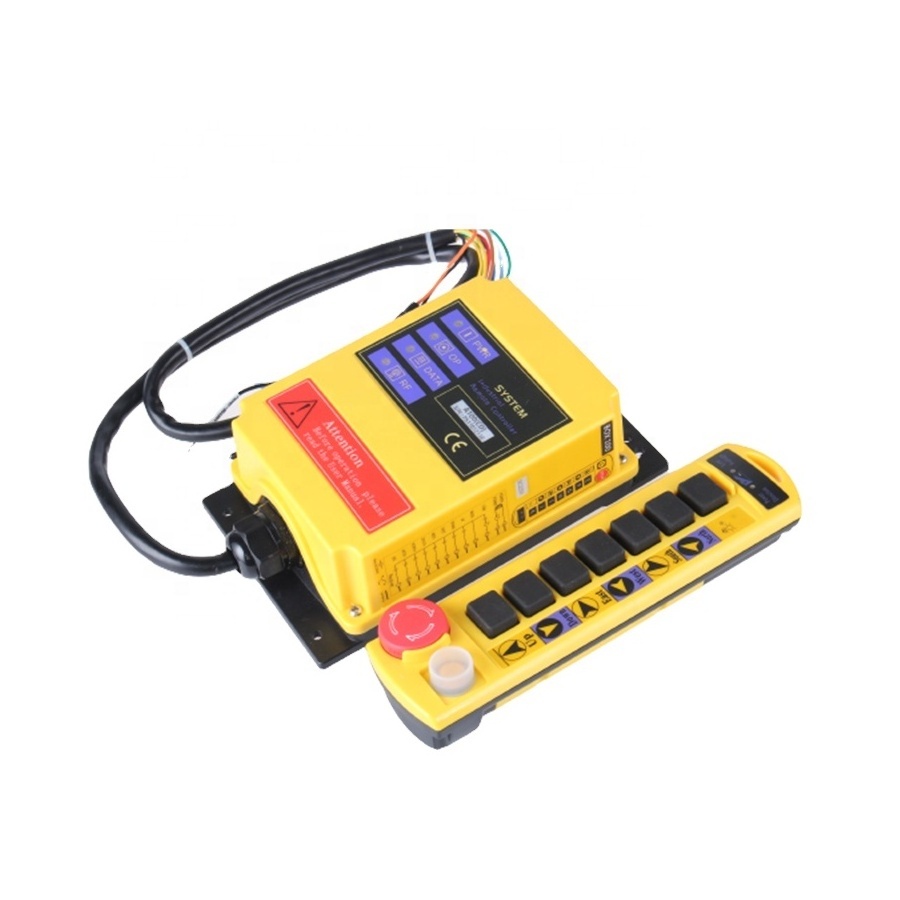

A100 Remote Control
-
Frequency:
-
430~440MHz
-
Working temp:
-
-30℃ - +70℃
-
Relative humidity:
-
90%RH
-
Shell material:
-
ABS
-
Field conditions:
-
Surrounded by strong vibration, strong electromagnetic field
-
Protection class:
-
IP65
-
Usage:
-
Industrial Control
-
Model:
-
A100
Quick Details
-
Function:
-
Waterproof, Digital LED Display
-
Brand Name:
-
VOHOBOO
-
Model Number:
-
A100
-
Place of Origin:
-
Hubei, China
-
Product name:
-
A100 Remote Control
-
Frequency:
-
430~440MHz
-
Working temp:
-
-30℃ - +70℃
-
Relative humidity:
-
90%RH
-
Shell material:
-
ABS
-
Field conditions:
-
Surrounded by strong vibration, strong electromagnetic field
-
Protection class:
-
IP65
-
Usage:
-
Industrial Control
-
Model:
-
A100
Product Description
Product Description:
1.
The original jog macro function, the minimum moving distance of driving is 50% smaller than that of similar products in the market
2.
Built-in antenna
3.
The appearance design of the transmitter is the same as that of the TV remote control, with a good feel, and the receiver panel has a display light
A100 (CD type) configuration: 6 single-speed direction keys, plus 2 multi-function jog keys, push-in and screw-out emergency stop keys; remote control distance 100m
System advantages:
●
Improved operator safety and freedom
It can be controlled from a short distance or remotely from a safe place.
●
Improved the accuracy of actions
The operator can control the equipment at the exact destination and perform precise positioning through micro-motion.
●
Ensures the continuity and convenience of operation
There are no blind spots in the whole process, and the remote control transmitter can be carried with you, which is convenient to use.
●
Improved production efficiency
The work that requires the cooperation of several people can be easily done by one person with the wireless remote control system of the PISO system, which greatly improves the work efficiency and production efficiency.
Product Parameters
Transmitter
|
|
Receptor
|
|
||
Frequency
|
430~440MHz
|
|
|
||
Max dBm
|
10dBm
|
Sensitivity
|
-116dBm
|
||
Distance
|
100M
|
Power dissipation
|
<5W
|
||
Encoding quantity
|
4200000000
|
|
|
||
Antenna form
|
Built-in, 50Ω
|
|
|
||
Protection class
|
IP64
|
Protection class
|
IP65
|
||
Shell material
|
ABS
|
|
|
||
Working temp
|
-20°C ~ +70°C
|
Working temp
|
-30°C ~ +70°C
|
||
Supply Voltage
|
DC9V(6F22*1)
|
Supply Voltage
|
36V/220V/380V
AC 50Hz/60Hz
*customizable* |
||
Operating current
|
<1mA
|
|
|
||
Relative humidity
|
90% RH
|
|
|
||
Atm
|
86-106KPa
|
|
|
||
Field conditions
|
Surrounded by strong vibration, strong electromagnetic field
|
|
|
