Quick Details
-
Place of Origin:
-
Guangdong, China
-
Frequency Up:
-
824-849,869-894MHz/1850-1910,1930-1990MHz/ 1710-1755 ,2110-2155MHz
-
Cellular Networks:
-
2G/3G/4G
-
Gain:
-
70dB
-
coverage:
-
200-700m2
-
RF connector:
-
N-Type Female
-
warranty:
-
3years
-
Key words:
-
repeater
-
Weight:
-
1.2kg
-
Size:
-
225x140x35mm
-
Color:
-
gold, gray, black, custormization
Quick Details
-
Brand Name:
-
ATNJ
-
Model Number:
-

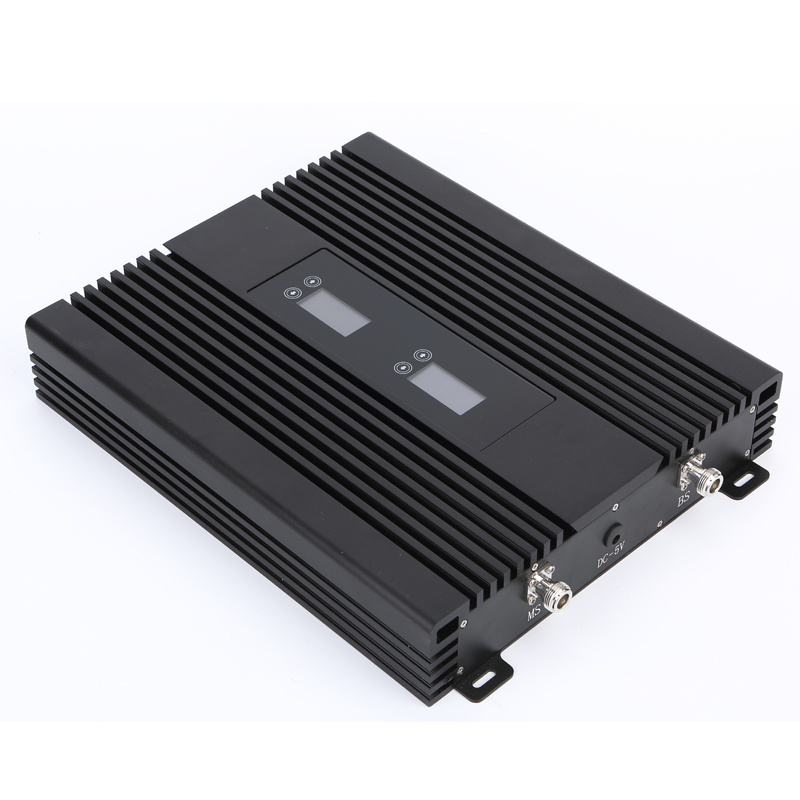

ATNJ-TR 850/1900/AWS/L
-
Type:
-
2/3G signal booster
-
Place of Origin:
-
Guangdong, China
-
Frequency Up:
-
824-849,869-894MHz/1850-1910,1930-1990MHz/ 1710-1755 ,2110-2155MHz
-
Cellular Networks:
-
2G/3G/4G
-
Gain:
-
70dB
-
coverage:
-
200-700m2
-
RF connector:
-
N-Type Female
-
warranty:
-
3years
-
Key words:
-
repeater
-
Weight:
-
1.2kg
-
Size:
-
225x140x35mm
-
Color:
-
gold, gray, black, custormization
Product Description
Specification
Frequency Range (Customers to Choose)
|
Uplink
|
824-849MHz, 1850-1910MHz, 1710-1755MHz
|
|
|
Downlink
|
869-894MHz, 1930-1990MHz, 2110-2155MHz
|
|
Frequency Bandwidth (3dB Bandwidth)
|
|
25MHz,75MHz,60MHz
|
|
Gain
|
|
80dB
|
|
Automatic gain control (Step Attenuation)
|
|
31dB @ 1dB/ Step
|
|
Auto Gain Control
|
|
20dB Min.
|
|
Output Power(Customers to Choose)
|
|
27dBm
|
|
Spurious Emission
|
|
≤ -15dBm/30kHz
|
|
|
|
9kHz~1GHz: ≤ -36dBm/30kHz
|
|
|
|
1GHz~12.75GHz: ≤ -30dBm/30kHz
|
|
Inter-Modulation Attenuation ACPR
|
|
≤ -40dBc / 30kHz (measured under rated output power)
|
|
In-band Ripple
|
|
≤ 3dB
|
|
VSWR
|
|
<=2
|
|
I/O Impedance
|
|
50 Ω
|
|
Noise Figure
|
|
≤ 5dB
|
|
System Delay
|
|
≤ 5μs
|
|
RF Connector(Customers to Choose)
|
|
SMA (Female)
|
|
Operating Temperature
|
|
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C
|
|
Power Supply
|
|
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter)
|
|
Weight
|
|
≤0.8 kg(Net)
|
|
Alarm Monitoring System
|
|
Alarm for uplink self-oscillation
|
|
Indication LED
|
|
Power supply
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
