Quick Details
-
Model Number:
-
GB/T3683.1-2006/SAE100R1A/1AT/SAE100R2A/2AT
-
Product name:
-

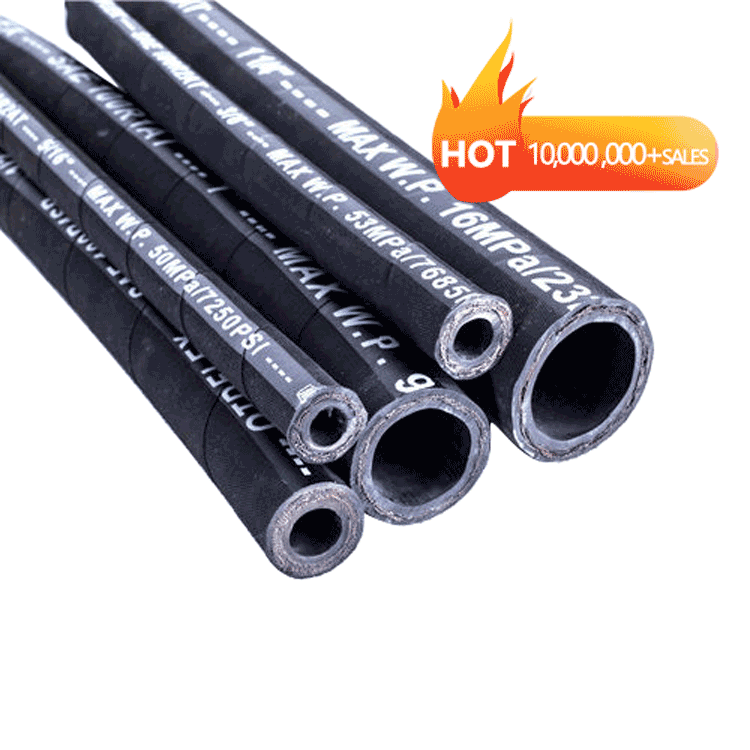

Hydraulic Hose High Pressure Rubber Hose
-
color:
-
black,red,blue etc.
-
feature:
-
spiralled&braided
-
layer:
-
1-6 layers steel wire reinforced
-
type:
-
oil resistant industrial hydraulic hose
-
pressure:
-
1-110Mpa
-
application:
-
carry hydraulic fluids&gas
-
temperature:
-
-40℃~+100℃
-
key words:
-
hydraulic rubber hose
-
Material:
-
Synthetic Rubber
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
PSF
-
Model Number:
-
GB/T3683.1-2006/SAE100R1A/1AT/SAE100R2A/2AT
-
Product name:
-
Hydraulic Hose High Pressure Rubber Hose
-
color:
-
black,red,blue etc.
-
feature:
-
spiralled&braided
-
layer:
-
1-6 layers steel wire reinforced
-
type:
-
oil resistant industrial hydraulic hose
-
pressure:
-
1-110Mpa
-
application:
-
carry hydraulic fluids&gas
-
temperature:
-
-40℃~+100℃
-
key words:
-
hydraulic rubber hose
-
Material:
-
Synthetic Rubber
Product Paramenters
|
hydraulic rubber hose parameters
|
|
SAE100R1AT/DIN(EN853)1ST,1SN/EN857 1SC
|
|
|
|
|
||||
|
Specification
inch/mm |
|
OD
|
Working pressure
Mpa / PSI |
Bar
|
||||
|
1/4"
|
6
|
13.7
|
32 / 4640
|
320
|
||||
|
5/16"
|
8
|
15.7
|
28 / 4060
|
280
|
||||
|
3/8"
|
10
|
17.7
|
26 / 3770
|
260
|
||||
|
1/2"
|
13
|
20.7
|
23 / 3335
|
230
|
||||
|
5/8"
|
16
|
24
|
18 / 2610
|
280
|
||||
|
3/4"
|
19
|
27.5
|
16 / 2320
|
160
|
||||
|
1"
|
25
|
35
|
12 / 1740
|
120
|
||||
|
1-1/4"
|
32
|
42
|
9 / 1305
|
90
|
||||
|
1-1/2"
|
38
|
48.5
|
7 / 1015
|
70
|
||||
|
2"
|
51
|
61.5
|
4 / 580
|
40
|
||||
|
SAE100R2AT/DIN(EN853)2SN,2ST/EN857 2SC
|
|
|
|
|
||||
|
Specification
inch/mm |
|
OD
|
Working pressure
Mpa / PSI |
Bar
|
||||
|
1/4"
|
6
|
15.7
|
60 / 8700
|
600
|
||||
|
5/16"
|
8
|
17.7
|
55 / 7975
|
550
|
||||
|
3/8"
|
10
|
19.7
|
53 / 7685
|
530
|
||||
|
1/2"
|
13
|
22.5
|
40 / 5800
|
400
|
||||
|
5/8"
|
16
|
26
|
25 / 3625
|
250
|
||||
|
3/4"
|
19
|
29
|
21.5 / 3117
|
215
|
||||
|
1"
|
25
|
37
|
18 / 2610
|
180
|
||||
|
1-1/4"
|
32
|
43.5
|
16 / 2320
|
160
|
||||
|
1-1/2"
|
38
|
50.5
|
14 / 2030
|
140
|
||||
|
2"
|
51
|
63.6
|
8 / 1160
|
80
|
||||
|
EN856 4SC,4SH/4SP,GB/T
|
|
|
|
|
||||
|
Specification
inch/mm |
|
OD
|
Working pressure
Mpa / PSI |
Bar
|
||||
|
1/4"
|
6
|
19
|
100/14500
|
1000
|
||||
|
5/16"
|
8
|
20.5
|
80/11600
|
800
|
||||
|
3/8"
|
10
|
24
|
70 / 10150
|
700
|
||||
|
1/2"
|
13
|
27
|
60 / 8700
|
600
|
||||
|
5/8"
|
16
|
30
|
55 / 7975
|
550
|
||||
|
3/4"
|
19
|
33
|
42 / 6090
|
420
|
||||
|
1"
|
25
|
39
|
35 / 5075
|
350
|
||||
|
1-1/4"
|
32
|
49
|
32.5 / 4713
|
325
|
||||
|
1-1/2"
|
38
|
56
|
29 / 4205
|
290
|
||||
|
2"
|
51
|
69
|
25 / 3625
|
250
|
||||
The characteristics of hydraulic rubber hose (PSF)
1.High pressure resistance
2.High temperature resistance
3.Soft and portable
4.Deformation resistant
5.Beautiful appearance
6.Striated, smooth or cloth surface
7.Good Insulation and abrasion resistance
8.Steel wire braided or spiraled layers reinforcement
9.Durable with high quality
10.Free sample
11.Fast delivery
12.Temperature Range:-40°C To +100°C (-40°F To +212°F)
1.High pressure resistance
2.High temperature resistance
3.Soft and portable
4.Deformation resistant
5.Beautiful appearance
6.Striated, smooth or cloth surface
7.Good Insulation and abrasion resistance
8.Steel wire braided or spiraled layers reinforcement
9.Durable with high quality
10.Free sample
11.Fast delivery
12.Temperature Range:-40°C To +100°C (-40°F To +212°F)
Product Details
Notice about the hydraulic rubber hose (PSF)
1.The hose should not be used to exceed the designed pressure.
2.The temperature of the medium being conveyed through the hose should be in the normal case, or reduce the use life of the hose.
3.The hose should not be used less than the minimum bend radius of the hose, in order to avoid bending near the pipe joints .
4.The hose should be handled carefully, and should not drag on the sharp and rough surface, should not be bent and squashed.
5.Pls keep the hose clean and prevent external objects into the hose, in case of hindering the transmission fluid and damaging the equipment.
6.If the hose’s weight cause excessive deformation,the hose should be supported.
1.The hose should not be used to exceed the designed pressure.
2.The temperature of the medium being conveyed through the hose should be in the normal case, or reduce the use life of the hose.
3.The hose should not be used less than the minimum bend radius of the hose, in order to avoid bending near the pipe joints .
4.The hose should be handled carefully, and should not drag on the sharp and rough surface, should not be bent and squashed.
5.Pls keep the hose clean and prevent external objects into the hose, in case of hindering the transmission fluid and damaging the equipment.
6.If the hose’s weight cause excessive deformation,the hose should be supported.
Our products we can supply as following
:
1) Steel wire braided hydraulic hose
SAE 100 R1AT/DIN EN 853 1SN SAE 100 R2AT/DIN EN 853 2SN
DIN EN 857 1SC / 2SC SAE 100 R1A/R2A
SAE 100 R16/R17 Steam hose((1W,2W)
SAE 100 R5 ( 1T/B + 1W/B)
2) Multi steel wire Spiral hydraulic hose
DIN EN856 4SP DIN EN856 4SH
SAE 100 R12 SAE 100 R13
SAE 100 R1AT/DIN EN 853 1SN SAE 100 R2AT/DIN EN 853 2SN
DIN EN 857 1SC / 2SC SAE 100 R1A/R2A
SAE 100 R16/R17 Steam hose((1W,2W)
SAE 100 R5 ( 1T/B + 1W/B)
2) Multi steel wire Spiral hydraulic hose
DIN EN856 4SP DIN EN856 4SH
SAE 100 R12 SAE 100 R13
3) Other hydraulic hose
SAE 100 R3/R6 SAE 100 R7/R8
SAE 100 R14(Teflon hose)
SAE 100 R3/R6 SAE 100 R7/R8
SAE 100 R14(Teflon hose)
4) Industrial hose
Oxygen / acetylene hoses, Twin welding hose, air/water/oil hose, sand blast hose,slurry hose, suction and discharge hoses
Oxygen / acetylene hoses, Twin welding hose, air/water/oil hose, sand blast hose,slurry hose, suction and discharge hoses
5) Automobile hose
Hydraulic/air brake hose(SAE J1401,SAE J1402), Air conditioning hose,Power steering hose, Car radiator hose
Hydraulic/air brake hose(SAE J1401,SAE J1402), Air conditioning hose,Power steering hose, Car radiator hose
If you’re not sure what type of hose you should be using for your application
, please feel free to contact with us,
we will provide you with the correct hose for the job.
We execute relevant national standards,American SAE standard and German DIN standard, We can also manufacture according to customer standard.Welcome to trade with us.We will provide warm services to you.
We are satisfactory to service for you, quotation and send samples to you for testing.
APPLICATION:
This hose can be used in construction, machine tool and agriculture field.E.g. Mine hydraulic fluid, oil exploration, crane,forging metallurgy, mining equipment, ships, injection molding machinery, agricultural machinery and various machines tools.etc.
