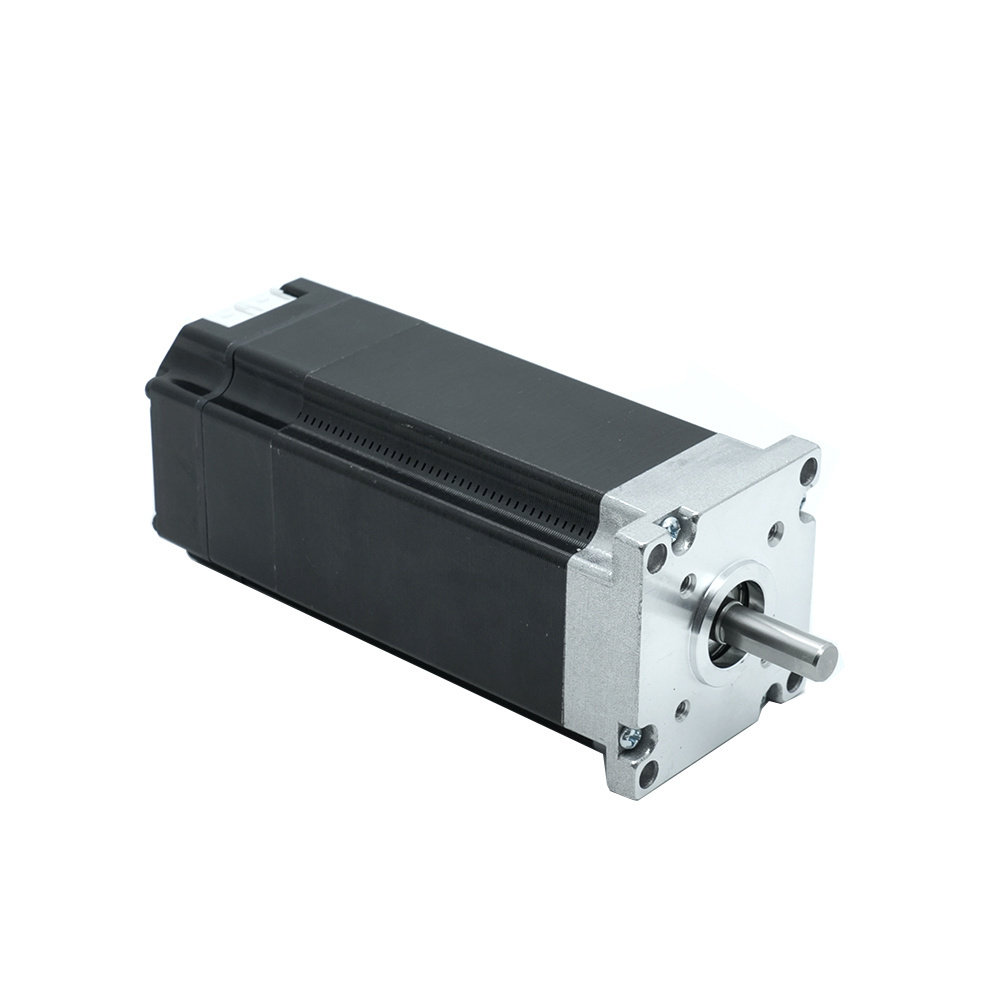

Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Jkongmotor
-
Model Number:
-
JKIDS57-P03A
-
Torque:
-
0.64N.m
-
Motor Name:
-
iintegrated dc servo motor
-
Model Name:
-
JKIDS57-P03A
-
Voltage:
-
36 / 48V
-
Power:
-
200W
-
Control method (optional):
-
Pulse / RS485 / Canopen
-
Encoder Type:
-
17Bit
-
Protection level:
-
Waterproof type: IP30, IP54, IP65, optional
-
Certification:
-
ISO, CE, Rohs, Reach
-
Other dc servo motor:
-
42mm / 57mm / 60mm / 80mm integrated dc servo motor
Quick Details
-
Speed(RPM):
-
3000Rpm
-
Continuous Current(A):
-
7.5A
-
Efficiency:
-
IE 4
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Jkongmotor
-
Model Number:
-
JKIDS57-P03A
-
Torque:
-
0.64N.m
-
Motor Name:
-
iintegrated dc servo motor
-
Model Name:
-
JKIDS57-P03A
-
Voltage:
-
36 / 48V
-
Power:
-
200W
-
Control method (optional):
-
Pulse / RS485 / Canopen
-
Encoder Type:
-
17Bit
-
Protection level:
-
Waterproof type: IP30, IP54, IP65, optional
-
Certification:
-
ISO, CE, Rohs, Reach
-
Other dc servo motor:
-
42mm / 57mm / 60mm / 80mm integrated dc servo motor
Specification
Model naming rules for low voltage integrated dc servo motor
1.Jkongmotor company name
2.Product series model, IDS: Integrated Dc Servo Motor
3.Frame number (42/57/60/80)
4.Control method optional (P/R/C) P——pulse, R——RS485, C——CANopen
5.The motor model
6.Encoder type: A——17 bit
Characteristics of Integrated Dc Servo Motor:
1、 Adopting a new 32-bit M4+core with 120M or 240M main frequency
2、 Stable torque characteristics from low to high speeds, with high speed and precision
3、 Equipped with brake resistor interface to prevent damage to the electromechanical braking system
4、Wide speed range, low temperature rise, and high efficiency
4、Wide speed range, low temperature rise, and high efficiency
5、 Integrated motor and drive, compact size, simple wiring, and drive Good compatibility with the motor
6、 Equipped with overcurrent, overvoltage, over temperature, and over differential protection functions
7、 Configure a 17 bit single turn absolute encoder
Communication method:
1、Pulse type
2、RS485 MOdbus RTU network type
3、CANopen network type
Protection level:
Waterproof type: IP30, IP54, IP65, optional
Usage:
Medical equipment, logistics transportation, industrial automation, textile machinery, laser, drawing, traditional Chinese
medicine ingredient industry, etc
Communication method:
1、Pulse type
2、RS485 MOdbus RTU network type
3、CANopen network type
Protection level:
Waterproof type: IP30, IP54, IP65, optional
Usage:
Medical equipment, logistics transportation, industrial automation, textile machinery, laser, drawing, traditional Chinese
medicine ingredient industry, etc
Integrated solution for precision control motors
Traditional split solution
|
42mm Square Integrated Dc Servo Motor
|
|
|
|
|
|
|
|
|
||||||||
|
Model
|
Power (W)
|
Rated Voltage (VDC)
|
Rated Current (A)
|
Rated Speed (rpm)
|
Rated Torque (N.m)
|
Body Length L (mm)
|
Encoder
|
Control method (optional)
|
||||||||
|
JKIDS42-P01A
|
26
|
24
|
1.8
|
4000
|
0.0625
|
61
|
17bit
|
Pulse / RS485 / CANopen
|
||||||||
|
JKIDS42-P02A
|
53
|
24
|
3.3
|
4000
|
0.125
|
81
|
17bit
|
Pulse / RS485 / CANopen
|
||||||||
|
JKIDS42-P03A
|
78
|
24
|
4.5
|
4000
|
0.185
|
101
|
17bit
|
Pulse / RS485 / CANopen
|
||||||||
|
JKIDS42-P04A
|
78
|
24
|
4.5
|
3000
|
0.25
|
120
|
17bit
|
Pulse / RS485 / CANopen
|
||||||||
|
57mm Square Integrated Dc Servo Motor
|
|
|
|
|
|
|
|
|
||||||||
|
Model
|
Power (W)
|
Rated Voltage (VDC)
|
Rated Current (A)
|
Rated Speed (rpm)
|
Rated Torque (N.m)
|
Body Length L (mm)
|
Encoder
|
Control method (optional)
|
||||||||
|
JK57IDS57-P01A
|
91
|
24/36
|
3.5
|
3000
|
0.29
|
101
|
17bit
|
Pulse / RS485 / CANopen
|
||||||||
|
JK57IDS57-P02A
|
140
|
24/36
|
5.4
|
3000
|
0.45
|
121
|
17bit
|
Pulse / RS485 / CANopen
|
||||||||
|
JK57IDS57-P003A
|
200
|
36/48
|
7.5
|
3000
|
0.64
|
141
|
17bit
|
Pulse / RS485 / CANopen
|
||||||||
|
60mm Square Integrated Dc Servo Motor
|
|
|
|
|
|
|
|
|
||||||||
|
Model
|
Power (W)
|
Rated Voltage (VDC)
|
Rated Current (A)
|
Rated Speed (rpm)
|
Rated Torque (N.m)
|
Body Length L (mm)
|
Encoder
|
Control method (optional)
|
||||||||
|
JKIDS60-P01A
|
200
|
24
|
12
|
3000
|
0.64
|
94
|
17bit
|
Pulse / RS485 / CANopen
|
||||||||
|
JKIDS60-P02A
|
400
|
48
|
11
|
3000
|
1.27
|
112
|
17bit
|
Pulse / RS485 / CANopen
|
||||||||
|
80mm Square Integrated Dc Servo Motor
|
|
|
|
|
|
|
|
|
||||||||
|
Model
|
Power (W)
|
Rated Voltage (VDC)
|
Rated Current (A)
|
Rated Speed (rpm)
|
Rated Torque (N.m)
|
Body Length L (mm)
|
Encoder
|
Control method (optional)
|
||||||||
|
JKIDS80-P01A
|
750
|
48/72
|
19/12
|
3000
|
2.4
|
155
|
17bit
|
Pulse / RS485 / CANopen
|
||||||||
|
JKIDS80-P02A
|
1000
|
72
|
17
|
3000
|
3.2
|
175
|
17bit
|
Pulse / RS485 / CANopen
|
||||||||
BLDC Motor
1、Various Size:
42mm to 130mm
2、Different Gearbox:
Planetary Gearbox / Worm Gearbox / Eccentric Gearbox
3、Parameters Customized:
Shaft / Flange / Brake / Encoder / Integrated Driver / Cables
4、
Complete and mature drive system support
5、
Without brush,
low interference, long life, low maintenance cost, low noise, smooth operation
BLDC Gear / Brake Motor
1、
Planetary Gearbox
2、
High Precision Planetary Gearbox
3、
Worm Gearbox
4、
Eccentric Gearbox
5、
Encoder / Brake
6、
Integrated Dc Servo Motor
7、
High-precision output
8、
High-performance transmission can achieve high torque transmission, high-precision output, high rigidity and low noise
9、
Small size, compact structure, large load-bearing capacity, and the design itself can also achieve high-precision positioning
BLDC Motor Driver
1、
Including：JKBLD120 / JKBLD300 / JKBLD480 / JKBLD720 / JKBLD750 / JKBLD1100 / JKBLD2200
2、
Suitable for the bldc motor with Hallsensor or without hallsensor
3、Optional for RS232 / RS485 Control
4、
Stable operation and can be appropriately overloaded
5、
Suitable for brushless motors of various specifications
6、
Complete and mature drive system support
7、
Perfect pre-sales, during-sales and after-sales services
Stepper Motor
1、Various Size:
20mm to 130mm
2、Parameters Customized:
Shaft / Flange / Brake / Encoder / Integrated Driver / Cables
Geared / Brake Stepper Motor
1、
Planetary Gearbox /
High Precision Planetary Gearbox /
Worm Gearbox /
Eccentric Gearbox
2、
Encoder / Brake optional
Stepper Motor Driver
1、
Different type for stepper motors from nema 8 to nema 52 stepping motors
2、
Suitable for Hybrid Stepper Motor or Closed Loop Stepping Motor
Linear Screw Motor
1、
Linear Actuators / Linear Guide Rail
2、
Ball Screw / T-Screw...
Integrated Servo Motor
1、
Integrated Dc Servo Motor
2、
Integrated Stepper Motor
3、
Encoder / Brake / Gearbox / Shaft
Brush Dc Motor
1、
From 42mm to 90mm
2、
Encoder / Brake / Gearbox optional
