Quick Details
-
Filling Accuracy:
-
±0.5%
-
Voltage:
-
380V, 3P 50-60HZ, 220V/380V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Grepack
-
Weight:
-
800 KG, 800 kg
-
name:
-
Piston Oil Filling Machine
-
Certification:
-
CE & ISO
-
model:
-
GP Series
-
Nozzles:
-
4-12 Nozzles
-
capacity:
-
1200-3600bottle/hour
Quick Details
-
Machinery Capacity:
-
1200-3600BPH(Based on 1000ml)
-
Packaging Material:
-
Plastic, Wood
-
Filling Material:
-
Other, Oil
-
Filling Accuracy:
-
±0.5%
-
Voltage:
-
380V, 3P 50-60HZ, 220V/380V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Grepack
-
Weight:
-
800 KG, 800 kg
-
name:
-
Piston Oil Filling Machine
-
Certification:
-
CE & ISO
-
model:
-
GP Series
-
Nozzles:
-
4-12 Nozzles
-
capacity:
-
1200-3600bottle/hour

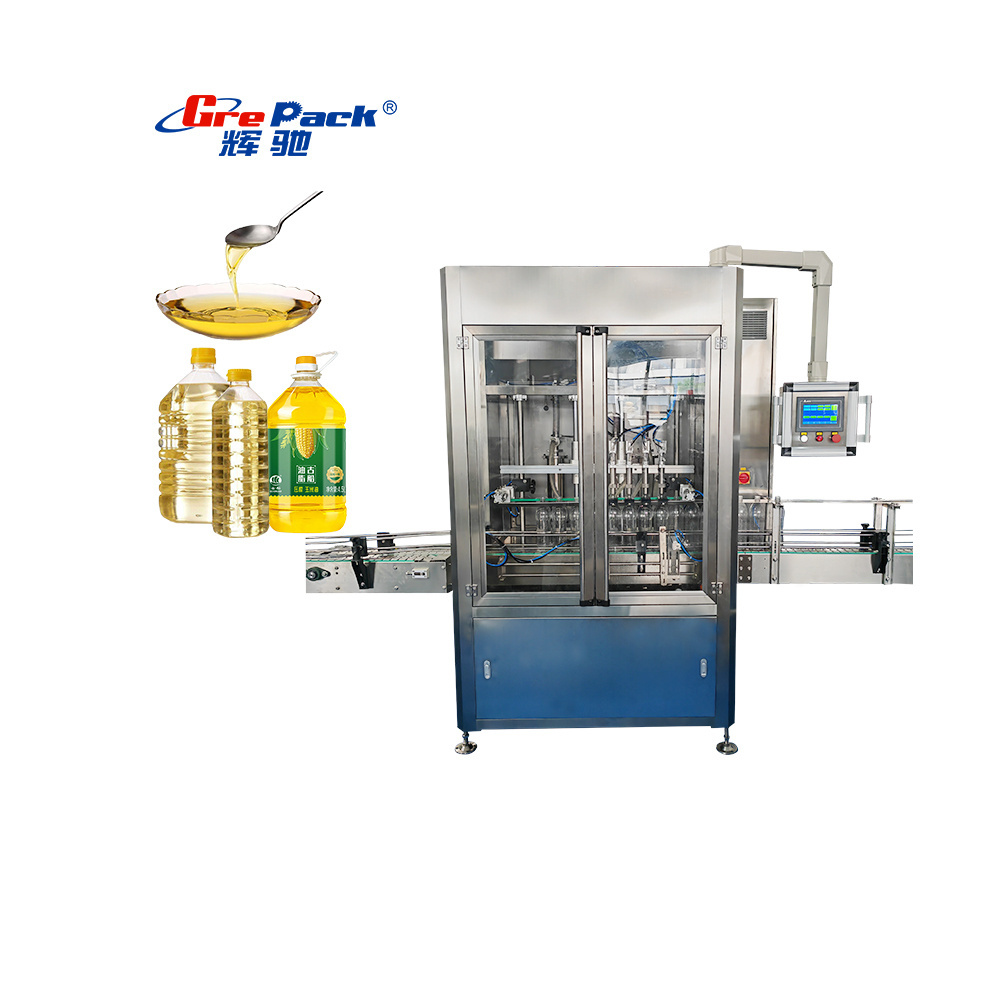

Automatic Edible Oil Filling Machine：
Automatic edible oil filling machine which is specially designed & used at oil filling machine, each of machine technical details based on edible oil property. Adopt Suck-back nozzle deisgn to guarantee no-dripping issue. Piston driven by servo motor allows filling accuracy & stability.
Advantages:
1）Different volume can be set on HMI directly;
2）Fast adjustment for different size bottles within 10-20min;
3）Piston driven by servo motor, high accuracy within +/-0.5% and high stability;
4）Hyginenic tri-clamps connection, easy to remove and clean, comply with GMP standards;
5）Diving nozzle design for fomaing liquid and sucking back device installed for
oil related products to assure no foaming, no dripping;
2）Fast adjustment for different size bottles within 10-20min;
3）Piston driven by servo motor, high accuracy within +/-0.5% and high stability;
4）Hyginenic tri-clamps connection, easy to remove and clean, comply with GMP standards;
5）Diving nozzle design for fomaing liquid and sucking back device installed for
oil related products to assure no foaming, no dripping;
|
Model
|
GP-4
|
GP-6
|
GP-8
|
GP-10
|
GP-12
|
||||
|
Filling Range
|
30-125ml,50-500ml,100-1000ml,500-3000ml,1000-5000ml
|
|
|
|
|
||||
|
Filling Nozzle
|
4
|
6
|
8
|
10
|
12
|
||||
|
Filling Capacity
(Based on 1000ml) |
≤ 1200BPH
|
≤ 1800BPH
|
≤2400BPH
|
≤3000BPH
|
≤3600BPH
|
||||
|
Filling Accuracy
|
≤±0.5%
|
|
|
|
|
||||
|
Voltage
|
AC220V/380V 50-60HZ (Special customizable)
|
|
|
|
|
||||
|
Power
|
2.0-3.5KW
|
2.0-4.0KW
|
2.5-4.5KW
|
3.0-5.5KW
|
3.0-6.5KW
|
||||
|
Air Pressure
|
0.5-0.8Mpa
|
|
|
|
|
||||
