Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LEYU
-
Model Number:
-
Emergency Stop Switch
-
IP level:
-
IP65
-
Product name:
-
Emergency Stop Switch
-
Case Color:
-
Silver
-
switch type:
-
Reset/self-locking
-
Size:
-
22mm
-
working temperature:
-
-22℃~+55℃
-
Switch value:
-
5V/250VAC
-
Operation type:
-
Push lock ,Turn release
Quick Details
-
Protection Level:
-
IP67
-
Max. Current:
-
5A
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LEYU
-
Model Number:
-
Emergency Stop Switch
-
IP level:
-
IP65
-
Product name:
-
Emergency Stop Switch
-
Case Color:
-
Silver
-
switch type:
-
Reset/self-locking
-
Size:
-
22mm
-
working temperature:
-
-22℃~+55℃
-
Switch value:
-
5V/250VAC
-
Operation type:
-
Push lock ,Turn release
Products Description
Specification
|

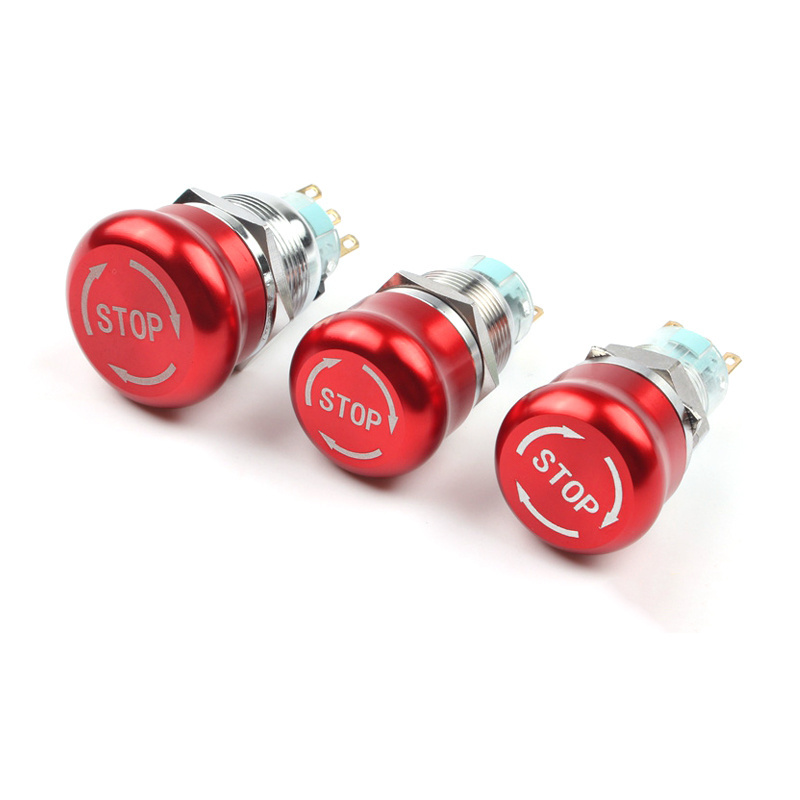

Metal Emergency Stop Switch
|
|
|
|
Mounting hole size:
|
18mm 22mm 24mm
|
|
|
Switch value:
|
5A/250V AC
|
|
|
Operation type:
|
Push lock ,Turn release
|
|
|
Contact configuration:
|
1NO1NC
|
|
|
Head shape:
|
Mushroom head
|
|
|
Crust material:
|
Aluminum alloy
|
|
|
Terminal type:
|
Pin terminal
|
|
|
Electrical life :
|
≥50,000 times
|
|
|
Mechanical life:
|
≥1,000,000 times
|
|
|
Contact Resistance:
|
≤50mΩ
|
|
|
Operation stroke:
|
about 3.1mm
|
|
|
IP Class:
|
IP65,IK09
|
|
|
Symbol:
|
With Arrow, "STOP" text
|
|
