- Product Details
- {{item.text}}
Quick Details
-
Engine Capacity:
-
> 8L
-
Gross Vehicle Weight:
-
23000
-
Drive Wheel:
-
6x4
-
After-sales Service Provided:
-
Onsite Installation
-
Brand Name:
-
SHACMAN
-
Place of Origin:
-
China
-
Dimensions (L x W x H) (mm):
-
8760X3255X3950MM
-
Engine model:
-
WD12G375E211
-
Engine power:
-
375hp/276kw
-
Torque(Nm/ rp m):
-
1500/1300-1500
-
Inner dimension of loading space(mm):
-
5600X3000X1500mm
-
Lifting mode:
-
Front lifting
-
Front axle:
-
Peng Xiang 12T
-
Rear axle:
-
Peng Xiang 25TX2
-
Product name:
-
Shacman 50 ton Mining dump truck off-road dumper for sale
Quick Details
-
Condition:
-
New
-
Horsepower:
-
375hp/276kw
-
Emission Standard:
-
E-II
-
Engine Capacity:
-
> 8L
-
Gross Vehicle Weight:
-
23000
-
Drive Wheel:
-
6x4
-
After-sales Service Provided:
-
Onsite Installation
-
Brand Name:
-
SHACMAN
-
Place of Origin:
-
China
-
Dimensions (L x W x H) (mm):
-
8760X3255X3950MM
-
Engine model:
-
WD12G375E211
-
Engine power:
-
375hp/276kw
-
Torque(Nm/ rp m):
-
1500/1300-1500
-
Inner dimension of loading space(mm):
-
5600X3000X1500mm
-
Lifting mode:
-
Front lifting
-
Front axle:
-
Peng Xiang 12T
-
Rear axle:
-
Peng Xiang 25TX2
-
Product name:
-
Shacman 50 ton Mining dump truck off-road dumper for sale

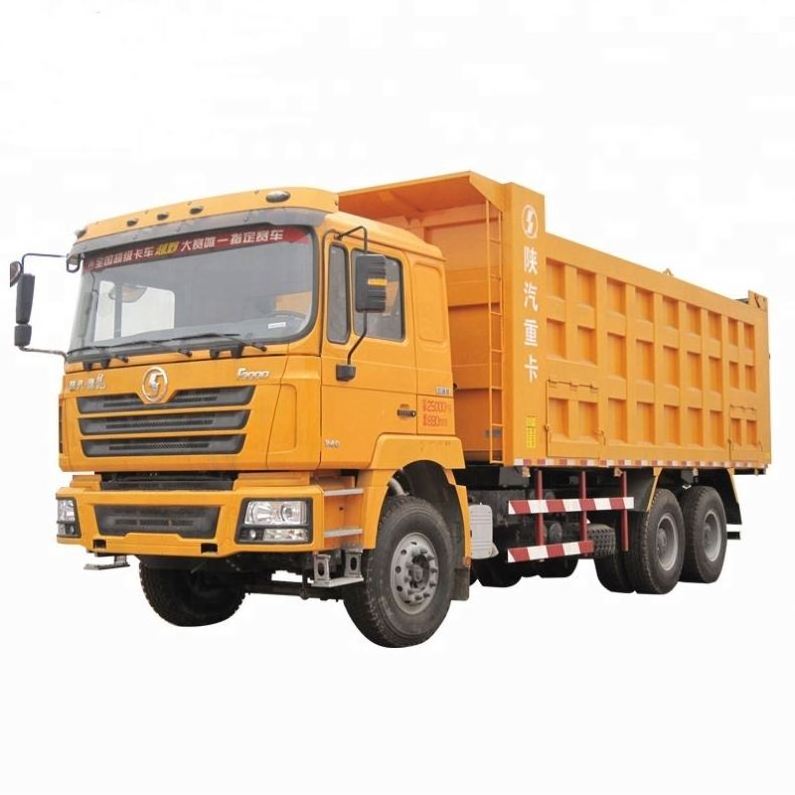

Shacman 50 ton Mining dump truck off-road dumper for sale
Contact person:Jin Zou
Mobile/Whatspp/Wechat/Skype:+86 17707042688
Email:jin at evangelchina.com
|
Technical Parameters of “ SHACMAN Kingway 70 ” off-road dumper |
|
|
Drive form |
6×4 |
|
Curb weight(kg) |
23000 |
|
Payload(kg) |
50000 |
|
Dimension(Lx W xH)(mm) |
8760×3255×3950 |
|
Max. speed (km/h) |
46 |
|
Minimum ground clearance(mm) |
380 |
|
Max.gradeability(%) |
≥40 |
|
Wheel base(mm) |
3750+1560 |
|
Axle number |
3 |
|
Cab |
Offset mining cab |
|
Enginebrand |
Weichai |
|
Engine model |
WD12G375E211 |
|
Engine power |
375hp/276kw |
|
Torque(N.m r. p. m) |
1500/1300-1500 |
|
Emission Standard |
E-II |
|
Gearbox |
FAST 10JSD180K-B,10 Forward&2Reverse |
|
Front axle |
Peng Xiang 12T |
|
Rear axle |
Peng Xiang 25T×2 |
|
Frame(mm) |
Dual layer(10+8) |
|
Tank capacity(L) |
380L Iron |
|
Tire |
14.00-24 |
|
Inner dimension of loading space(mm) |
5600×3000×1500mm |
|
Material thickness of loading(mm) |
Bottom14mm,Side10mm,16Mn,Fixed thickness 10mm of front plate |
|
Lifting mode |
Front lifting |
