Quick Details
-
Brand Name:
-
ABBA
-
Linear block type:
-
Flange Type Block
-
Preload:
-
ZF,Z0,Z1
-
Precision of linear guide:
-
N
-
Old Item Number:
-
BRH25A
-
Lubrication:
-
grease
-
Rod length:
-
customized
-
Seales type:
-
standard(S)
-
Weight:
-
0.57KG/block,3.6KG/ of 1000mm rails
-
ABBA Linear Block Type:
-
flange with standard type
-
Linear guide application:
-
CNC,Lathe
Quick Details
-
Weight (KG):
-
0
-
Model Number:
-
BRC25A0
-
Place of Origin:
-
Taiwan, China
-
Brand Name:
-
ABBA
-
Linear block type:
-
Flange Type Block
-
Preload:
-
ZF,Z0,Z1
-
Precision of linear guide:
-
N
-
Old Item Number:
-
BRH25A
-
Lubrication:
-
grease
-
Rod length:
-
customized
-
Seales type:
-
standard(S)
-
Weight:
-
0.57KG/block,3.6KG/ of 1000mm rails
-
ABBA Linear Block Type:
-
flange with standard type
-
Linear guide application:
-
CNC,Lathe
25mm Normal rail with counter bore holes BRC25A0 ABBA
Country (Region) of origin :
Made In CHINA TaiWan,
This is Original part
that we are selling.
Please be advised the ABBA linear guide is the length of 4000mm each pieces,The butt-jointing is required when lengths exceed max. For detailed information,please contact me immediately. We can cut the length for your need.
| ABBA Linear guide Details : | |
| A Different Name | linear guide rail, slide block, linear motion, linear guide |
| ABBA linear guideway, ABBA linear Carriage,ABBA linear guide block,ABBA linear guideway | |
| Brand | ABBA |
| Model | BRC25A0,Old Number(BRH25A) |
| Rail lenght | 60mm/-4000mm lenght can provide |
| size: | following list |
| Minimum quantity: |
1 piece slide block and 1pcs 60mm rails each
|
| Precision: | N |
| Preload: | ZF=Clearance.Z0=No preload.Z1=Light preload,0-0.02C |
| Lubrication: | grease |
| Seal Types | S(standard seal) |
| Material: | Chrome Steel |
| Packing | original color box packaging,OrWooden Carrying Case. |
| Block Type | Flange type block |
| Square type ABBA Linear Guide | Square type ABBA Linear Guide | Flange type ABBA Linear Guide | Flange type ABBA Linear Guide | Low Profile ABBA Linear Guide | Low Profile ABBA Linear Guide |
| BRC15R0 | BRD15R0 | BRC15A0 | BRD15A0 | BRC15U0 | BRD15U0 |
| BRC20R0 | BRD20R0 | BRC20A0 | BRD20A0 | BRC15SU | BRD15SU |
| BRC20LR | BRD20LR | BRC20LA | BRD20LA | BRC20U0 | BRD20U0 |
| BRC25R0 | BRD25R0 | BRC25A0 | BRD25A0 | BRC20SU | BRD20SU |
| BRC25LR | BRD25LR | BRC25LA | BRD25LA | BRC25U0 | BRD25U0 |
| BRC30R0 | BRD30R0 | BRC30A0 | BRD30A0 | BRC25SU | BRD25SU |
| BRC30LR | BRD30LR | BRC30LA | BRD30LA | BRC30U0 | BRD30U0 |
| BRD35R0 | BRD35A0 | BRC30SU | BRD30SU | ||
| BRD35LR | BRD35LA | BRD35U0 | |||
| BRD45R0 | BRD45A0 | BRD35SU | |||
| BRD45LR | BRD45LA | BRD45U0 |
Drawing for ABBA linear guide
The Precision Data for ABBA linear guide
Linear guide rail Mounting procedure
- Clear and dry the mounting surface.
- Coat each surface with low viscosity spindle oil , Then place the rail on the surface and then lightly tighten the mounting bolts temporarily.
- Place the carriage plate on the blocks carefuly and tighten the mounting bolts temporarily.
- Position the carriage plate by tightening the master block against the reference surface using the selected securing method and tighten the mounting bolts with a torque wrench.
Linear block mounting procedure
- Clamp the reference rail in place and tighten the mounting bolts with a torque wrench,Making several passes to reach the desired torque.
- Please acrefully position the table with bearings onto the rails and tighten the non refernence blocks with torque rrench.
- Starting at one end,move the table along the rail and tighten the non reference rail slowly during swveral passes with a final pass using the torque wrench.Please don't over tiighten.

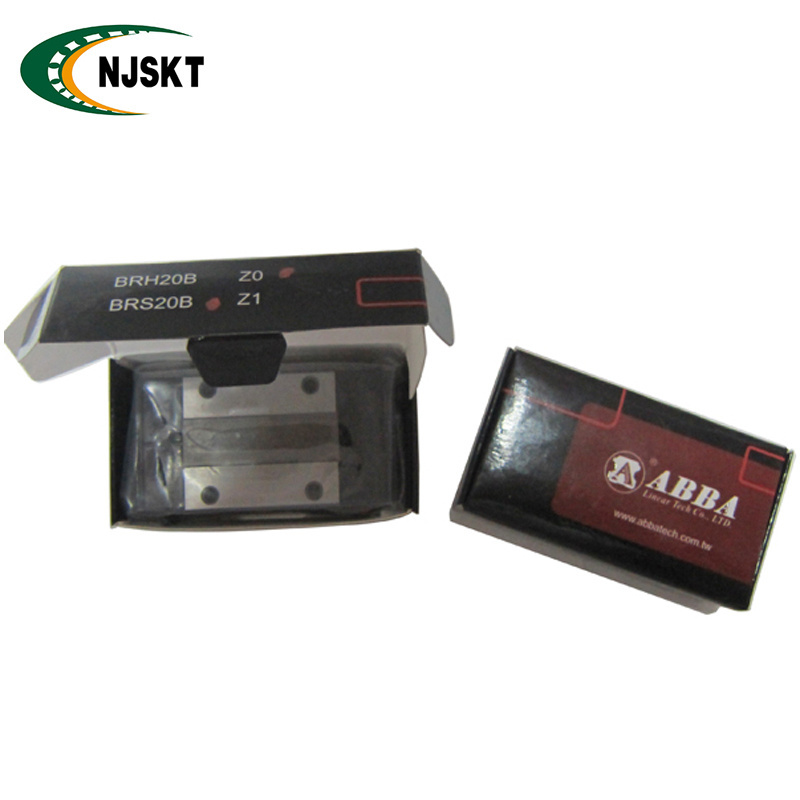

Picture Showing
MOQ:
-
Standard size:Different model and size have different requirement
- Non-standard size: :500PCS to 1000PCS
Payment :
- T/T ,L/C, Western Union,PayPal, Credit Card
Sample :
- Free sample after deposit,or sample cost at buyer's cost( refundable )
Shipping :
- For Small orders (1pc-500pc)and samll Size,we send by express UPS,DHL,FEDEX, or EMS,china post with Thracking number
- For Big quantity (1000pc-100000pc) , we will ship by sea.
