Quick Details
-
Model Number:
-
XB4BG23=ZB4BG2+ZB4BZ103
-
Max. Current:
-
10 A
-
Product type:
-
XB4BG23=ZB4BG2+ZB4BZ103
-
Device short name:
-
XB4
-
Bezel material:
-
Chromium metal
-
Type of operator:
-
Fixed positions
-
Contact operation:
-
Slow opening
-
Height:
-
47 mm
-
Width:
-
30 mm
-
Depth:
-
68 mm
-
Net Weight:
-
0.095 kg
-
Certification:
-
CSA
Quick Details
-
Max. Voltage:
-
600 V
-
Place of Origin:
-
France
-
Brand Name:
-
Schneider
-
Model Number:
-
XB4BG23=ZB4BG2+ZB4BZ103
-
Max. Current:
-
10 A
-
Product type:
-
XB4BG23=ZB4BG2+ZB4BZ103
-
Device short name:
-
XB4
-
Bezel material:
-
Chromium metal
-
Type of operator:
-
Fixed positions
-
Contact operation:
-
Slow opening
-
Height:
-
47 mm
-
Width:
-
30 mm
-
Depth:
-
68 mm
-
Net Weight:
-
0.095 kg
-
Certification:
-
CSA
Product Description
>> What are the main features of
Schneider XB4
pushbutton key switch selector

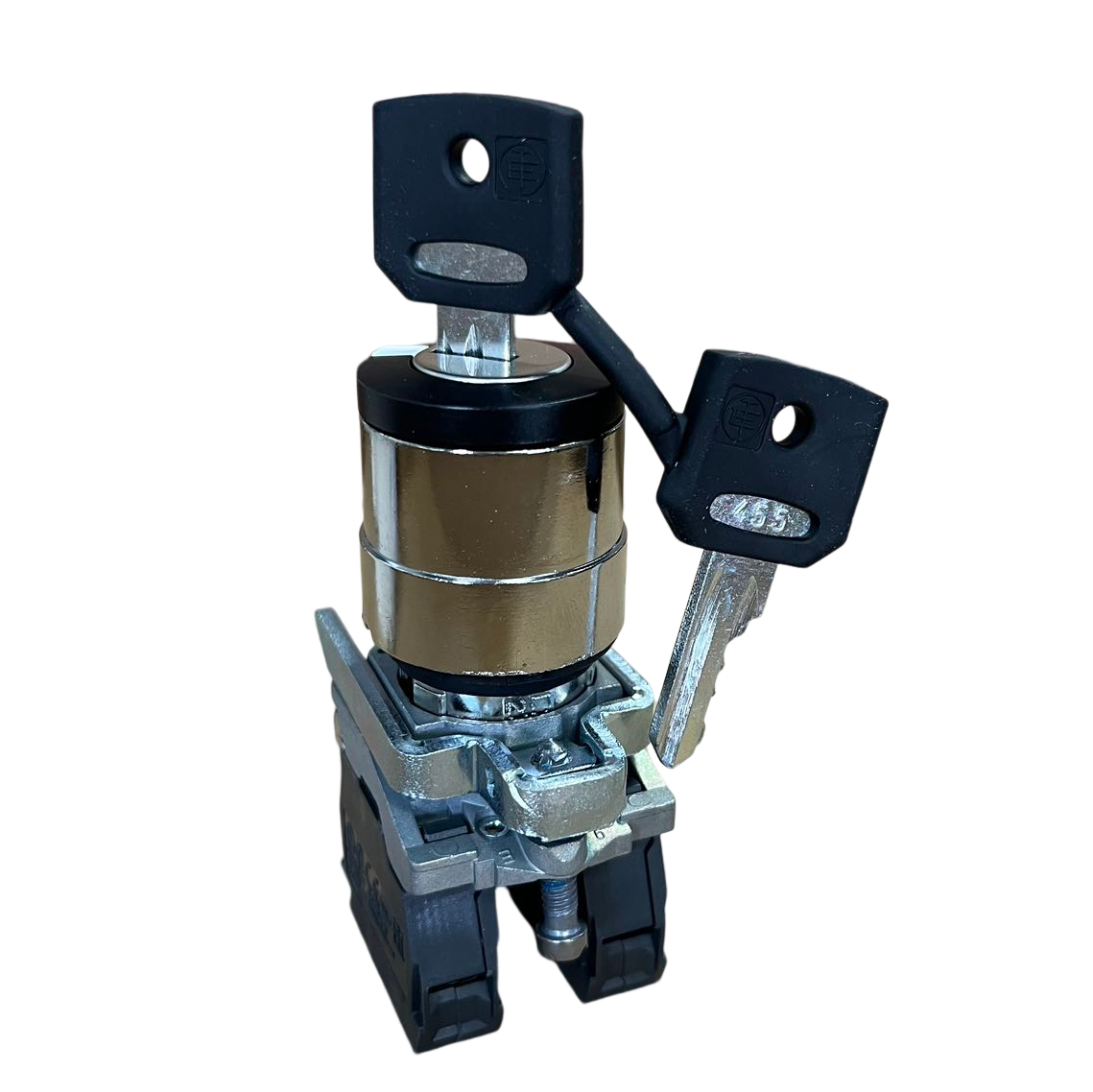

XB4BG23
?
|
Main
|
|
|
Product line
|
Harmony XB4
|
|
Type of product or component
|
Selector switch
|
|
Device short name
|
XB4
|
|
Bezel material
|
Chromium plated metal
|
|
Fixing collar material
|
Zamak
|
|
Mounting diameter
|
22 mm
|
|
Sale per indivisible quantity
|
1
|
|
Head type
|
Standard
|
|
Shape of signaling unit head
|
Round
|
|
Type of operator
|
Stay put
|
|
Operator profile
|
key switch
|
|
Operator position information
|
3 positions +/- 45°
|
|
Contacts type and composition
|
2 NO
|
|
Contact operation
|
Slow-break
|
|
use of contacts
|
Standard contacts
|
|
positive break
|
Without
|
|
Torque value
|
0.14 N.m NO changing electrical state
|
|
mechanical durability
|
1000000 cycles
|
|
tightening torque
|
0.8…1.2 N.m conforming to EN 60947-1
|
|
screw head shape
|
Cross compatible with Philips Nº 1 screwdriver
Cross compatible with pozidriv Nº 1 screwdriver With slots compatible with Plano Ø 4 mm screwdriver With slots compatible with Plano Ø 5.5 mm screwdriver |
|
contact material
|
Silver alloy (Ag/Ni)
|
|
Short-circuit protection
|
10 A Cartridge fuse type gG according to EN/IEC 60947-5-1
|
|
[Ith] conventional free air thermal current
|
10 A according to EN/IEC 60947-5-1
|
|
[Ui] rated insulation voltage
|
600 V (pollution degree 3) according to EN 60947-1
|
|
[Uimp] rated impulse withstand voltage
|
6 kV EN 60947-1
|
|
[Ie] rated operational current
|
3 A @ 240 V, CA-15, A600 as per EN/IEC 60947-5-1
6 A @ 120 V, CA-15, A600 as per EN/IEC 60947-5-1 0.1 A @ 600 V, DC- 13, Q600 as per EN/IEC 60947-5-1 0.27 A at 250 V, DC-13, Q600 as per EN/IEC 60947-5-1 0.55 A at 125 V, DC-13, Q600 as per EN/ IEC 60947-5-1 1.2 A @ 600 V, AC-15, A600 as per EN/IEC 60947-5-1 |
|
electrical durability
|
1000000 cycles, CA-15, 2 A at 230 V , duty rate < 3600 cic/h , load factor: 0.5 as per EN 60947-5-1, appendix C
1000000 cycles, CA-15, 3 A at 120 V , duty rate < 3600 cic/h , load factor: 0.5 as per EN 60947-5-1, appendix C
1000000 cycles, CA-15, 4 A @ 24 V , duty rate < 3600 cic/h , load factor: 0.5 as per EN 60947-5-1, appendix C 1000000 cycles, DC-13, 0.2 A @ 110 V , operating rate < 3600 cic/h , load factor: 0.5 as per EN 60947-5-1, appendix C 1000000 cycles, DC-13, 0.5 A @ 24 V , duty rate < 3600 cic/h , load factor: 0.5 as per EN 60947-5-1, appendix C |
|
Electrical reliability
|
Λ < 10exp(-6) at 5 V and 1 mA In clean environment as per EN/IEC 60947-5-4
Λ < 10exp(-8) at 17 V and 5 mA In clean environment as per EN/IEC 60947-5-4 |
|
Device presentation
|
Complete product
|
>> What condition of the environment could
Schneider XB4
pushbutton
key switch selector
XB4BG23
be used?
|
Environment
|
|
|
Protective treatment
|
TH
|
|
Ambient air temperature for storage
|
-40…70 °C
|
|
Ambient air temperature for operation
|
-40…70 °C
|
|
Electrical shock protection class
|
Class I conforming to IEC 60536
|
|
IP degree of protection
|
IP66 conforming to IEC 60529
IP69
IP69K
IP67
|
|
NEMA degree of protection
|
NEMA 13
NEMA 4X
|
|
Standards
|
UL 508
JIS C8201-5-1 EN/IEC 60947-5-1 CSA C22.2 No 14 EN/IEC 60947-1 EN/IEC 60947-5-4 EN/IEC 60947-5-5 JIS C8201-1 |
|
Product certifications
|
LROS (Lloyds register of shipping)
DNV BV GL CSA UL |
|
Vibration resistance
|
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
|
|
Shock resistance
|
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
>> What is the dimension of Schneider
XB4 pushbutton
key switch selector
XB4BG23
?
|
Dimension
|
|
|
Depth
|
47 mm
|
|
Height
|
30 mm
|
|
Width
|
68 mm
|
|
Net weight
|
0.095 kg
|
