Gelgoog Small Industries Food Injera Making Machinery Ethiopia Injera Maker Baking Machine For Injera

Gelgoog Small Industries Food Injera Making Machinery Ethiopia Injera Maker Baking Machine For Injera

FOB Reference Price: Get Latest Price

≥1 Sets

US $6800

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 220/380V

Power:: 13kw

Dimension(L*W*H):: 4.3*0.8*1.35m

Weight:: 400 KG

Marketing Type:: New Product 2024

Product name:: Ethiopia Injera Maker Baking Machine For Injera

Application:: Processing Spring Roll Skin

Function:: Multifunctional

Material:: Stainless Steel

Raw material:: Wheat Flour

Usage:: Making Spring Roll Skin

Capacity:: 500-1000pcs/h

Feature:: Full Automatic

Quick Details

Production Capacity:: 500-1000pcs/h

Place of Origin:: Henan, China

Brand Name:: GELGOOG

Voltage:: 220/380V

Power:: 13kw

Dimension(L*W*H):: 4.3*0.8*1.35m

Weight:: 400 KG

Marketing Type:: New Product 2024

Product name:: Ethiopia Injera Maker Baking Machine For Injera

Application:: Processing Spring Roll Skin

Function:: Multifunctional

Material:: Stainless Steel

Raw material:: Wheat Flour

Usage:: Making Spring Roll Skin

Capacity:: 500-1000pcs/h

Feature:: Full Automatic

Gelgoog Small Industries Food Injera Making Machinery Ethiopia Injera Maker Baking Machine For Injera

Products Description

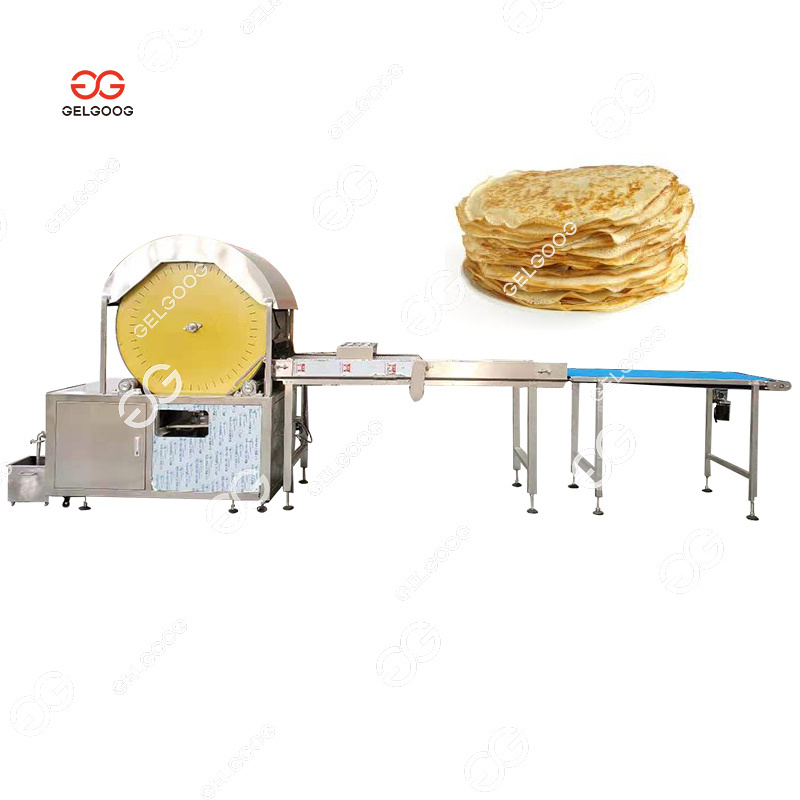

Introduction of Baking Machine For Injera

pancake producing machinery also can be called Injera Wrapper Making Machine, it mainly used to make the spring roll, the crepe, and can also make the Fillo Pastry.It can make different shapes of spring roll skin,round shape and the quadrate,etc.It is composed of mixer, automatic batter feeding part, heating&shaping cylinder, cutter, conveying & cooling part and sheet stacking parts, 6QP series spring roll sheet machines can make injeras in either round or rectangular shapes.

Feature of Baking Machine For Injera ：

1. Production of product size, thickness, crisp, moisture, softness, hardness, can be controlled. 2. Machine is full automatic, just need one worker. 3. Machine is made of stainless steel materaial, safe and easy to clean. 4. If you want make different size, we can customized the mould according to your requirement.

Function of Baking Machine For Injera ：

Baking Machine For Injera also can be called Injera Wrapper Making Machine, it can product round flake food/dough sheet between 0.3-1.0mm in thickness, such as injera,spring roll wrapper, samosa wrapper, egg sheet and France pancakes. It is suitable for food factory, restaurant, fast food restaurant etc.

Product Paramenters

Model	GG-3620	GG-5029	GG-8045	GG-12060
Voltage	380/220V（50/60HZ）	380/220V（50/60HZ）	380/220V（50/60HZ）	380/220V（50/60HZ）
Dia. of heating Cylinder	400mm	500mm	800mm	1200mm
Power	8/10kw or gas	18kw or gas	40kw or gas	59kw or gas
Host Power	0.4	0.4	0.4	0.75
Cutter Power	0.2	0.2	0.2	0.2
Belt power	-	0.36	0.36	0.55
Capacity	500-1000pcs/h	1000-1500pcs/h	3500pcs/h	9000pcs/h
Dimension	41009501350mm	52009501350mm	650011001600mm	620013002300mm
Rotating speed	1-2.5r/min	1-2.5r/min	1-3r/min	1-3r/min
Weight	330kg	520kg	1000kg	1750kg
Size of the sheet ( Max.)	200mm	300mm	450mm	600mm
Thickness of the sheet	0.3-2.0mm	0.3-2.0mm	0.3-2.0mm	0.3-2.0mm

Important reminder: 1,The technical parameters are for reference only. 2,The product quotation is for reference only, It is based on the actual purchased model and configuration. 3,For more information, please call or consult customer service.

Details Images

Workflow of Baking Machine For Injera：

After the baking wheel is heated, the pulp is heated, the slurry is moved to the nozzle, and the clutch operating rod is operated to make the slurry adhere to the arc surface of the roast wheel. When the roast wheel is rotated, the pulp is cured and separated automatically from the roast wheel to form a fixed thickness spring roll or the roll of spring rolls immediately. The heating way of the baking wheel is divided into electric heating and gas heating, which are for users to choose.
