Quick Details
-
Brand Name:
-
LAMMIN
-
Connection Mode:
-
bolts
-
Model No:
-
LLP5100NLA
-
Input Voltage:
-
AC 0-230V
-
Max Load Current:
-
28mA
-
Installation:
-
bolts
Quick Details
-
Warranty(Year):
-
3-Year
-
Max. Load Power:
-
60W
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LAMMIN
-
Connection Mode:
-
bolts
-
Model No:
-
LLP5100NLA
-
Input Voltage:
-
AC 0-230V
-
Max Load Current:
-
28mA
-
Installation:
-
bolts
Product Description

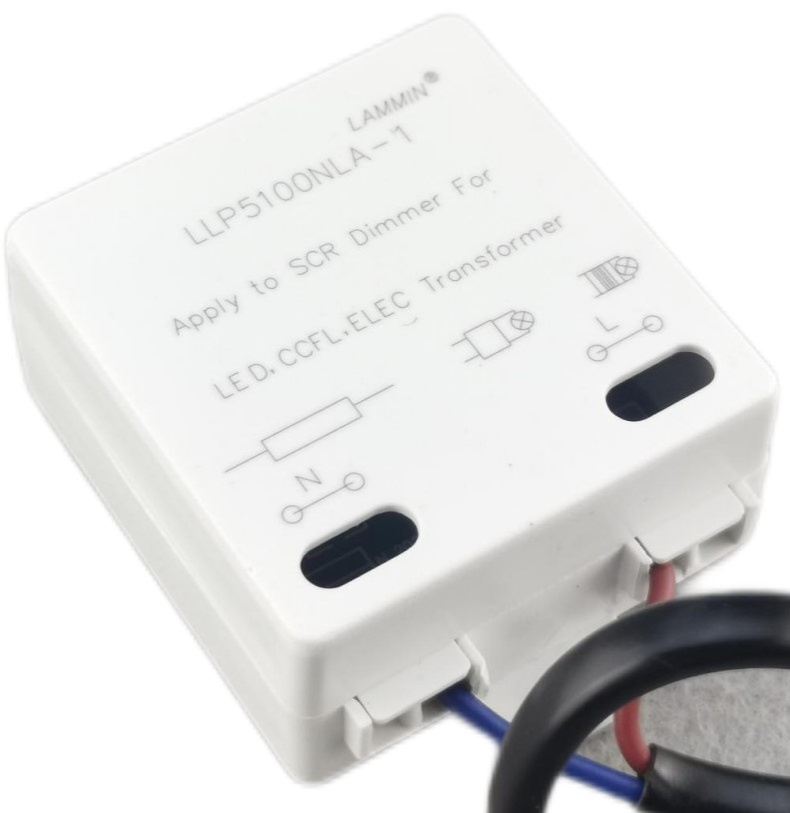

TRIAC Dimmer Absorption Module
●To solve the problem of flickering and turning off when TRAIC dimmer is connected to small loads such as LED and electronic transformer
●It can maintain the normal working current of TRAIC dimmer and eliminate the low-end flicker phenomenon of the lamp, and completely turn off the load.
Features
●No impact for the load of the lamp
●The current consumption does not change with the voltage
●Suitable for retrofitting the TRACI dimmer project
●Small size, easy to carry and install
Product Paramenters
|
Model No
|
LLP5100NLA
|
|
Brand
|
LAMMIN
|
|
Input Voltage
|
AC 0-230V
|
|
Max Load Current
|
28mA
|
|
Certification
|
CE
|
|
Working Temp
|
-20℃~+50℃
|
|
Warranty
|
3 years
|
|
Size(L*W*H)MM
|
40*58*22
|
|
Installation
|
Φ3 bolts
|
Mechanical Structures and Installations
●When connecting LED small load, if there is low-end flashing, it cannot be completely turned off, at the output end of the TRAIC dimmer or the load end of the LED lamp, according to the diagram, the input line of the absorption module is connected in parallel
●If there is still flashing in parallel, 2-3 absorption modules can be connected in parallel to the same circuit.
●If the flickering is not solved in 3 modules connection, it is recommended to replace the LED dimmable driver.
Company Introduction
Guangzhou LAMMIN Electronics Co., Ltd. founded in 2008, is a high-tech enterprise dedicated to research and development, production, sales of professional intelligent control system and accessories.
We provide KNX/EIB, DALI, MODBUS, EnOcean,WIZ protocol intelligent lighting control system, (SCR, 0/1-10V, DALI) dimmable LED power supply, professional dimmers.
