Heating use room indoor floor portable diesel heater

Heating use room indoor floor portable diesel heater

FOB Reference Price: Get Latest Price

≥1 Sets

US $1999

≥2 Sets

US $1949

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Power:: 24-60KW

Place of Origin:: Shandong, China

Brand Name:: YUESEN

Model Number:: YBF-10

Dimension(L*W*H):: 1230X500X1335 mm

Weight:: 160KG

Warranty:: 12 monthes, One Year

After-sales Service Provided:: Overseas third-party support available

Product name:: Heating use room indoor floor portable diesel heater

Model:: Indoor floor type heater

Color:: classic silver or do as requirement

Oil consumption:: 2-10L/H

Source power:: diesel or kinds of waste oils

Exhausting air:: 4000m3/h

Heating area:: under 550 ㎡

Waste oil air heater:: waste oil air heater

Certification:: CE

Quick Details

Type:: Air Heater

Power Source:: Diesel

Voltage:: 20V/110V, 110V 220 V

Power:: 24-60KW

Place of Origin:: Shandong, China

Brand Name:: YUESEN

Model Number:: YBF-10

Dimension(L*W*H):: 1230X500X1335 mm

Weight:: 160KG

Warranty:: 12 monthes, One Year

After-sales Service Provided:: Overseas third-party support available

Product name:: Heating use room indoor floor portable diesel heater

Model:: Indoor floor type heater

Color:: classic silver or do as requirement

Oil consumption:: 2-10L/H

Source power:: diesel or kinds of waste oils

Exhausting air:: 4000m3/h

Heating area:: under 550 ㎡

Waste oil air heater:: waste oil air heater

Certification:: CE

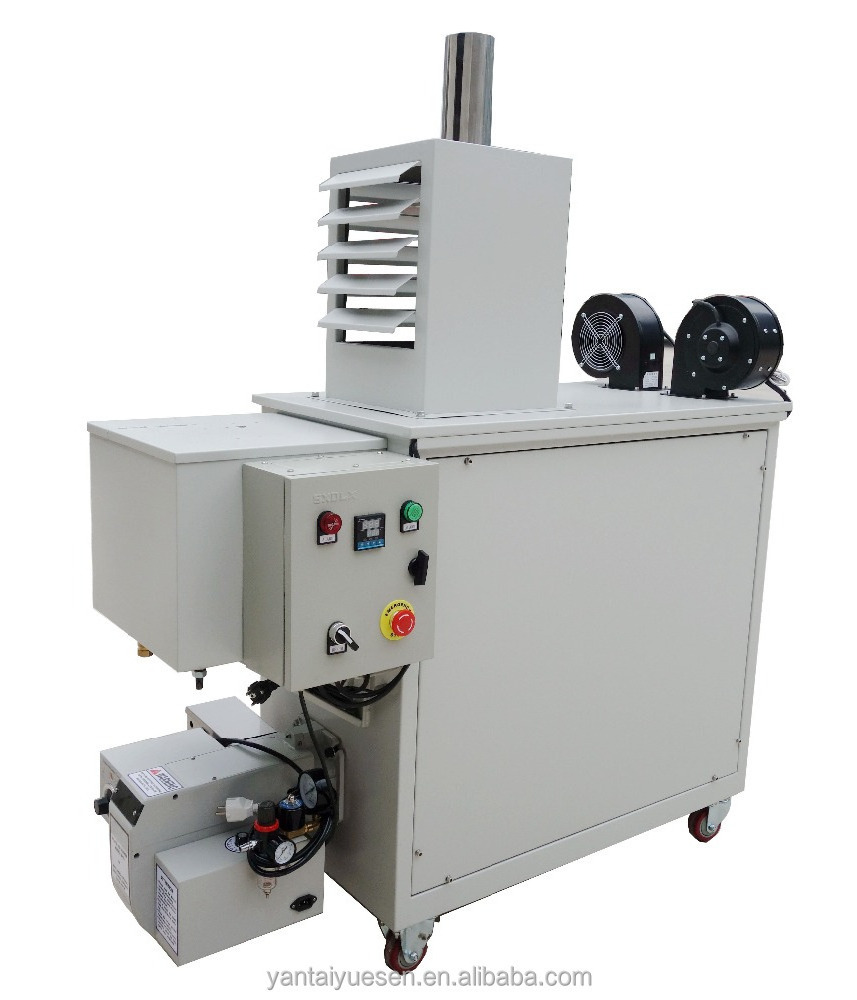

Heating use room indoor floor portable diesel heater

Product Description

Application:

Fuels

waste oil calorific value between 8000-10,000Kcal,no solidification,no volatility,

no water,is available to use. such as:

used engine oil,used crankcase oil
used cooking oil,used transmission oil
used hydraulic oil,used synthetic oil
used mixed oil,used vegetable oil
used diesel oil,used tyre pyrolysis oil
waste machine shop cutting oil
used grades #1,#3,#4 heating oils
note:regular oils,such as diesel are also available,
gasoline can't be used

Specification

1. Motor direct-drive Fan, 200WX2 Sets=400W;(volute type)
2. Exhausting air of Fan : 630M3/H*2 Sets=1260M3
3. Heat Exchanger: Stainless Steel tube;
4. Two applications available. Equipped with window blinds exhausting,

and pipings exhausting, which can be connected to two individual rooms;
5. Indoor floor type, automatic running, low noise and powerful blowing;
6. Remote control;
7. Heating adjustable by adjusting burner’s output.
8. Exhausting air complies with the requirements of EURO III;
9. Hiden Oil tank 40L;
10. Heater dimensions: 1350(L)mmx680(W)mmx1470(H)mm

With Waste oil burner

YB-05		Oil consumption: 2 - 5 (KG/Hour) Output heat power: 24-59(KW) Output heat: 20400-52000(KCal/h) Nozzle(s): 1 x 1.0 (mm) Distance of screw bore in the flange: 160x160(mm) Compressed Air Pressure: 0.05-0.1MPa 220V/50Hz & 110V/60Hz both available
YB-10		Oil consumption: 2 - 10 (KG/Hour) Output heat power: 24-119 (KW) Output heat: 20400-102000(KCal/h)/80,000-400,000(BTU/H) Nozzle(s): 1 x 2.0 (mm) Distance of screw bore in the flange: 160x160(mm) Compressed Air Pressure: 0.05-0.1MPa 220V/50Hz & 110V/60Hz both available
