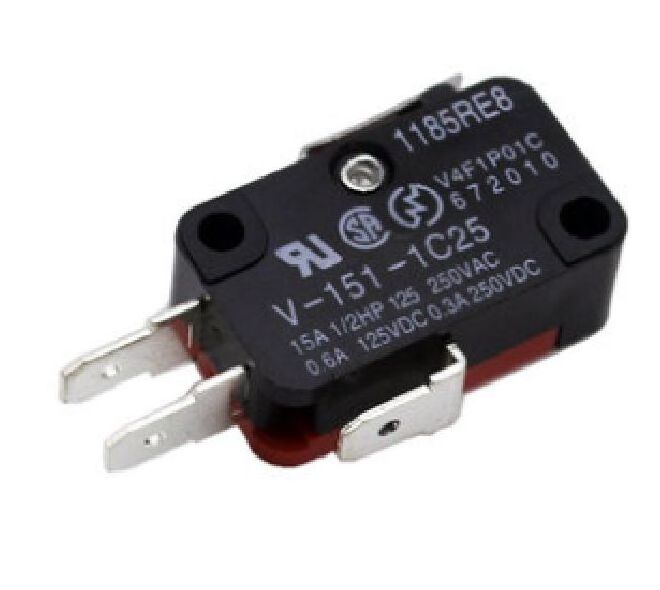

short lever type 3 pin micro switch micro switch MX12-8 V-151-1C25

FOB Reference Price: Get Latest Price

≥10 Pieces

US $1.3

Free Inquiry

Customized Request

Quick Details

Feature

1. High accuracy of action position.
2. Good shock resistance ,maximum 1000m/s².
3. Good heat resistance,maximum operating temperature is T105°C.

4. High-strength shell,when mounting,the plastic shell can withstand torsional moment of 6kgf.cm without break.

specification

Contact resistance	15mΩ. max (initial)
Insulation resistance	100mΩ min. (at 500VDC)
Dielectric strength	1,000VAC 50/60Hz for 1 minute
Life	Mechanical: 10,000,000 operations min. Electrical:100, 000 operations min. ( full road)

Item	Value
Operation speed	0.01mm to 50m/Sec
Action frequency	120 times/Minute
Contact resistance	Under 15mΩ (Initial)
Insulation resistance	100mΩ above (under 500VDC)
Vibration	Action: 10 to 55Hz: 1.5mm pairs swing
Ambient temperature	-25°C to 80°C
Protection structure	IEC specification: IP65
Humidity	Below 95%RH
Serve life	Mechanically: 10000000 times above (at rated ot); Electrically: 500000 times above
Hitting	Machine: 400m/Sec² (about 40G'S); Action: 100m/Sec² (about 10G'S)
Bearing voltage	Non-contact end: 1000VAC, 50/60Hz for one minute, Current parts and noncurrent, parts and end and connect opsition: 1500VAC, 50/60Hz for one minute
