Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
SAGA
-
Voltage:
-
380v
-
Weight (KG):
-
15000 KG
-
Power (kW):
-
30KW
-
Dimension(L*W*H):
-
2900*1300*2200mm
-
Warranty:
-
One Year
-
Number of Layers:
-
1
-
Machine Name:
-
High frequency solid chair and leg wood bending press machine
-
Machine working principle:
-
high frequency dielectric heating
-
Application:
-
Bent wood,plywood pressing and glue curing
-
Input power:
-
40kva
-
Oscillation:
-
6.78Mhz
-
Curing size:
-
1300*2500mm
-
Daylight of press:
-
1100mm
-
Hydraulic cylinder stroke:
-
600mm
-
Vertical pressure:
-
150 ton
-
Other name:
-
Plywood bending machine,bent wood pressing machine
-
Certification:
-
Patent
Quick Details
-
Max.Pressure(T):
-
150 T
-
Working Table Size(mm):
-
2500x1300mm
-
Pressure:
-
150T
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
SAGA
-
Voltage:
-
380v
-
Weight (KG):
-
15000 KG
-
Power (kW):
-
30KW
-
Dimension(L*W*H):
-
2900*1300*2200mm
-
Warranty:
-
One Year
-
Number of Layers:
-
1
-
Machine Name:
-
High frequency solid chair and leg wood bending press machine
-
Machine working principle:
-
high frequency dielectric heating
-
Application:
-
Bent wood,plywood pressing and glue curing
-
Input power:
-
40kva
-
Oscillation:
-
6.78Mhz
-
Curing size:
-
1300*2500mm
-
Daylight of press:
-
1100mm
-
Hydraulic cylinder stroke:
-
600mm
-
Vertical pressure:
-
150 ton
-
Other name:
-
Plywood bending machine,bent wood pressing machine
-
Certification:
-
Patent

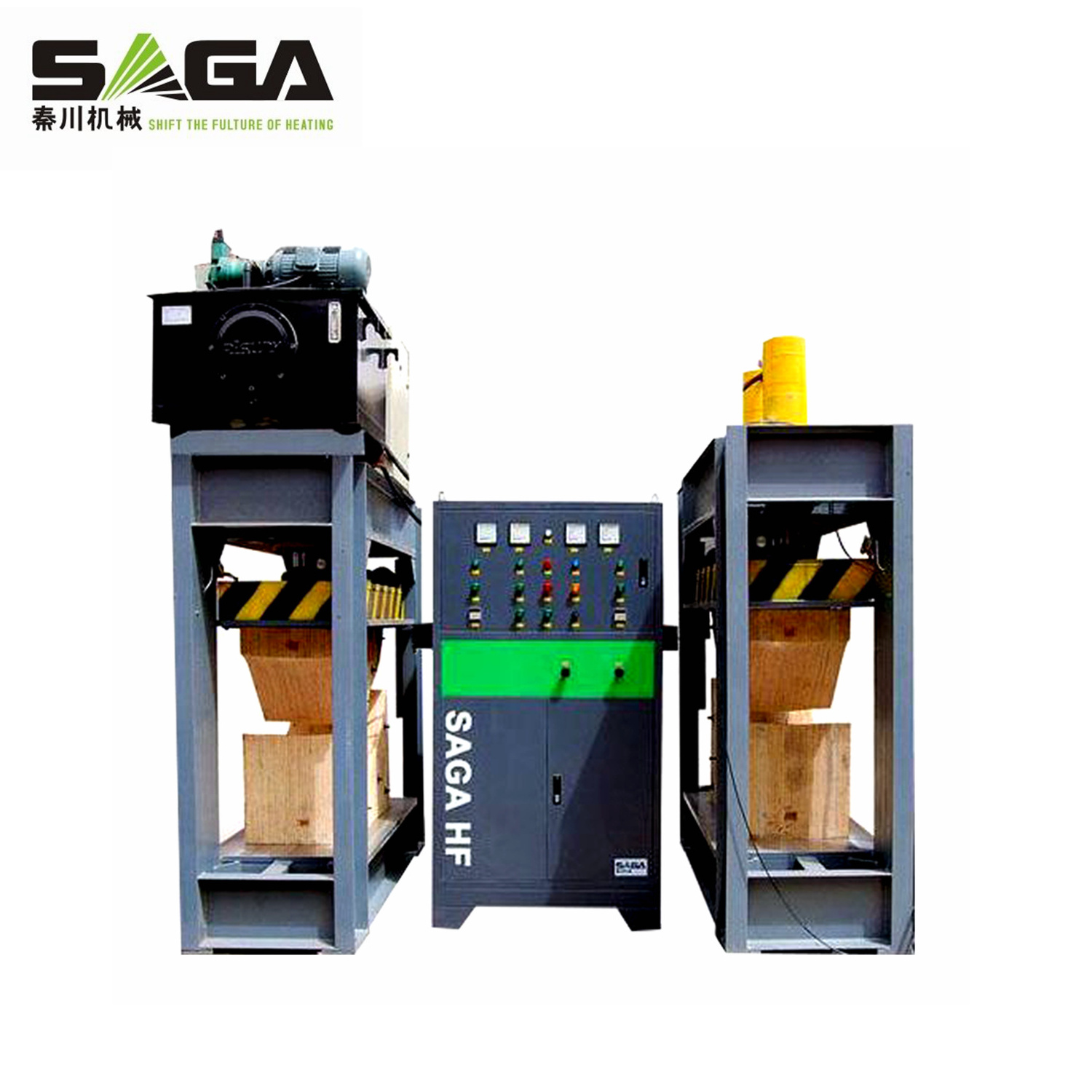

High frequency solid chair and leg wood bending press machine
1.High frequency wood bending press applies high frequency generator to hydraulic press, by mould and electrode.
2.It transfers the high frequency power to the work piece to achieve the function of fast gluing and forming.
3.Be suitable for: bent plywood chair, bent or arc plywood for the furniture or bed or other bent plywood products like cloth hanger or surface of musical instrument.
................................................................................................................................................................................................................
Character of
Radio frequency plywood hot press woodwork machine
1. Fast and uniformly heating.
2. Bending shape is stable, not easy to change delamination.
3. High frequency power is a selectively heating power, it concentrates only on water or glue, wood not consume High Frequency power, so HF heating is effective and power saving.
4. Wooden or MDF mould used, much ecnomic than metal mould if shape is frequently changed.
Basic Parameter
|
Mode |
YX80-SA |
YX150-SA |
|
HF Generator |
20kW, 2 Output |
30kW, 2 Output |
|
Press Working Size |
1600*800mm |
2500*1300mm |
|
Cylinder |
80T(2PCS) |
150T(2PCS) |
|
Stroke of cylinder |
600mm |
600mm |
|
Control |
Automatic |
Automatic |
|
Power of Hydraulic |
7.5kW |
7.5kW |
|
Opening of Plate |
1200mm |
1200mm |
|
Over size |
2300*800*2200mm |
2900*1300*2200mm |
Detail information please contact Saga Machinery
...............................................................................................................................................................................................................
ABOUT SAGA :
Saga Machinery Co,. Ltd specializes in developing, designing and producing High Frequency Machineries. We are a
professional HF Machinery supplier in China. Our products cover with High Frequency Hot Press, High Frequency Generator,
High Frequency Curved Plywood Press, High Frequency Vacuum Wood Dryer, High Frequency Guitar Machine, Wood Kiln, High
Frequency Belt Conveyor, etc
