Quick Details
-
Application:
-
Energy Supply Pipe
-
Color:
-
Blue
-
Feature:
-
High efficiency and energy saving
Quick Details
-
Production Capacity:
-
High
-
Power(KW):
-
60-2400
-
Shape of tube:
-
round/square/rectangular/oval pipe/special pipe
-
Application:
-
Energy Supply Pipe
-
Color:
-
Blue
-
Feature:
-
High efficiency and energy saving
Product Description

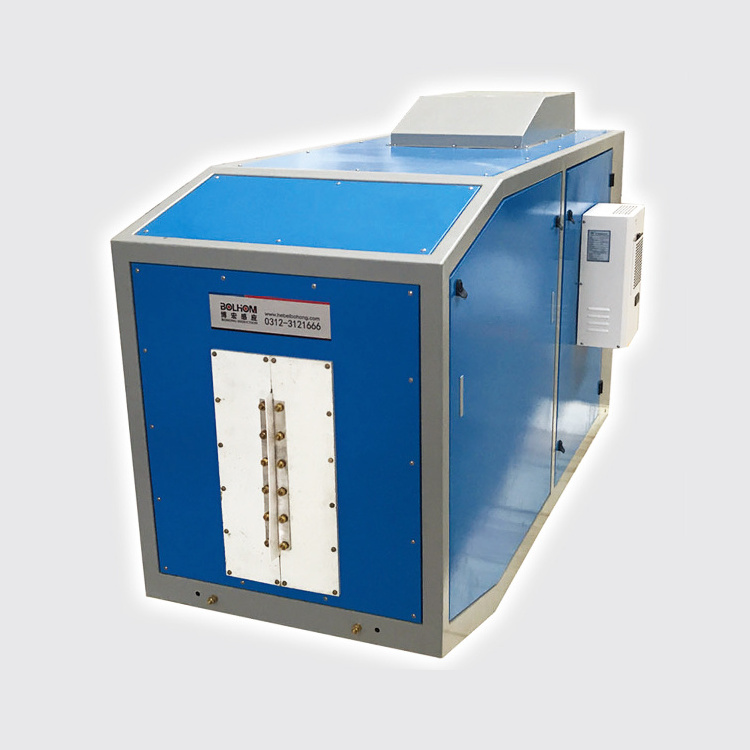

Surface induction heat treatment plant,surface heat treating plant,Hardening heat treat plant
primarily used for surface hardening. The heating process does not affect the core structure
Specifications
Induction heat treatment plant is primarily used for surface hardening. The heating process does not affect the core structure.
Induction heat treating is primarily used for surface hardening. The heating process does not affect the core structure. It is possible to heat a material locally where it is functionally desired. Other sectors of the material remain untreated and it is easy to machine them.
Applications:Bearings,Hubs,Joints,Clutch Plates,Roller Pins,Shafts.Gears,Sprockets,Lawn Mower Cams,Truck Cams,Car Camshafts,Axle Shafts,Drive Shafts,worm gears,etc.
Heating methods:Hardening, Heating penetration
Feature:
1. Using high-powerIGBT.
2. Using dual-loop PI regulator of voltage and current so can ensure the constant power output when the electric network voltage changes.
3. The power range is adjusted from 0-100% .
4. Using pulse width modulation or voltage regulation circuit microcomputer control based, adjustment stable with high precision, small harmonic interference.
5. It has fault protection system with over-frequency,lack-frequency,over-voltage, over-current, lack phase and less water-pressure etc.
6.PLL circuit has some characteristics such as excellent frequency automatic tracking capacity,and the range of phase lock is wide,the reaction speed of tracking is fast and so on.
7.Control circuit has a soft start and soft stop function,it will not has the impact to the electric network.
Reference data:
| IGBT IF Series(0.5-10KHz) | IGBT super audio Series (20-50KHz) | Dimension | ||||||
| Model |
Rated
DC Voltage (V) |
Rated
DC Current (A) |
Peak
Voltage (V) |
Model |
Rated
DC Voltage (V) |
Rated
DC Current (A) |
Peak
Voltage (V) |
L×W×H (mm) |
| GZP50 | 500 | 100 | 850 | GCYP50 | 450 | 120 | 850 | 1000×800×2000 |
| GZP100 | 500 | 200 | 850 | GCYP100 | 450 | 230 | 850 | |
| GZP160 | 500 | 320 | 850 | GCYP160 | 450 | 360 | 850 | 1500×1000×2000 |
| GZP200 | 500 | 400 | 850 | GCYP200 | 450 | 450 | 850 | |
| GZP250 | 500 | 500 | 850 | GCYP250 | 450 | 560 | 850 | |
| GZP300 | 500 | 600 | 850 | GCYP300 | 450 | 670 | 850 | |
| GZP400 | 500 | 800 | 850 | GCYP400 | 450 | 900 | 850 | |
| GZP500 | 500 | 1000 | 850 | GCYP500 | 450 | 1100 | 850 | |
| GZP750 | 500 | 1500 | 850 | GCYP750 | 450 | 1700 | 850 | 1800×1200×2100 |
| GZP1000 | 500 | 2000 | 850 | GCYP1000 | 450 | 2250 | 850 | |
For more information, please click here .
Q1. Which countries your products are exported to?
Our products are sold all over the world and with related certifications.
Q2. How about the warranty?
One year guarantee, anything componets broken ,seller will provide at free.
Q3. How to install your machine?
Seller provides the instrucion and electrical blueprint of the machine, the seller engineers supervise
the installation on site and fulfil the adjustment.
Q4. What are the terms of payment?
T/T, L/C or other ways.
Q5. How long is the production cycle ?
About one month.
Q6. What is your nature of your company: dealer or factory ?
We are manufacturer and have a big factory ,warmly welcome to visit our factory and contact us.
