Quick Details
-
Standard or Nonstandard:
-
Standard
-
Material:
-
Stainless steel
-
Brand Name:
-
EPT
-
Place of Origin:
-
Zhejiang, China
-
Product Name:
-
Disc coupling
-
Torsion:
-
33-8900N.m
-
Rotates speed:
-
6300-20000R/M
-
Finished hole:
-
standard spline,square or hexagonal
-
Application:
-
all kinds of general mechanical situation
-
Surface Treatment:
-
Blacken
-
Operating angle:
-
up to 45° Per joint
-
Customize:
-
OEM/ODM
-
Wide choice of hub:
-
configurations
-
HS code:
-
8483600090
Quick Details
-
Warranty:
-
3 years
-
Applicable Industries:
-
Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Energy & Mining, Construction works
-
Structure:
-
Disc
-
Standard or Nonstandard:
-
Standard
-
Material:
-
Stainless steel
-
Brand Name:
-
EPT
-
Place of Origin:
-
Zhejiang, China
-
Product Name:
-
Disc coupling
-
Torsion:
-
33-8900N.m
-
Rotates speed:
-
6300-20000R/M
-
Finished hole:
-
standard spline,square or hexagonal
-
Application:
-
all kinds of general mechanical situation
-
Surface Treatment:
-
Blacken
-
Operating angle:
-
up to 45° Per joint
-
Customize:
-
OEM/ODM
-
Wide choice of hub:
-
configurations
-
HS code:
-
8483600090

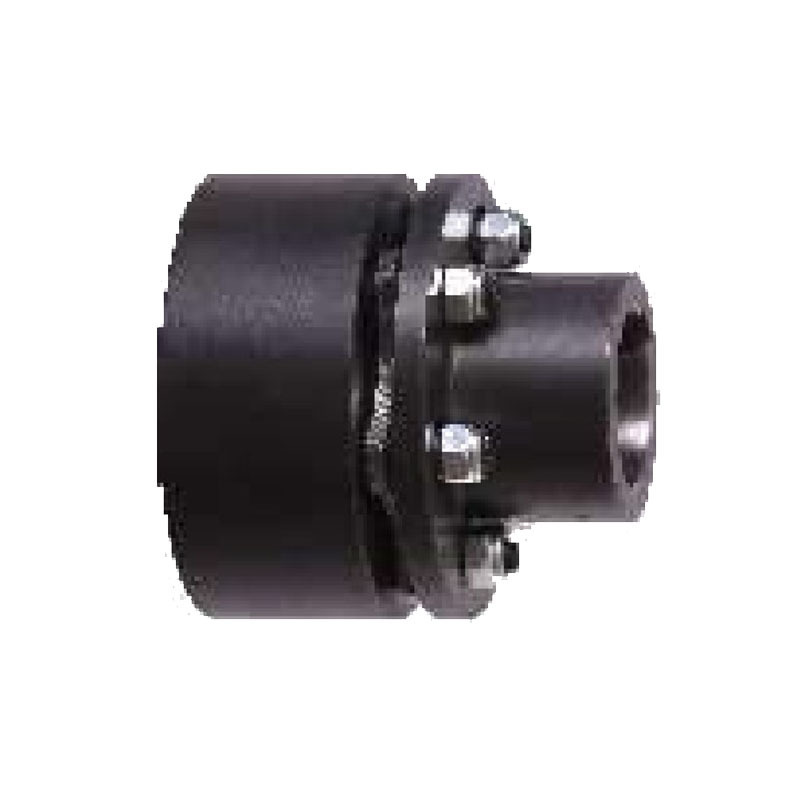

Product Description
Metal flex couplings are disc type couplings in which several flexible metallic elements are alternately attached with bolts to opposite flanges. As polymeric elastomer is replaced by metal disc, Metal Flex coupling provides excellent temperature capability without sacrificing angular and axial misalignment. The coupling provides low axial and bending stiffness while possessing high torsional rigidity. The stretched shim pack design of EPT Metal Flex couplings provides zero backlash. EPT Metal Flex couplings are available up to 13367 Nm torque with single shim pack (UMK) and double shim pack (UMS) series.
FEATURES
1.Power to weight ratio high
2.Accommodates angular and axial misalignments
3.High temperature application
4.Visual inspection is possible without dismantling equipments
5.Low axial stiffness with high torsional rigidity
6.High-speed capacity
7.Range up to 12000 Nm
8.Added advantage of stretch fitted shim pack
DIMENSIONS & TECHNICAL DATA
|
Click here for more details!
|
|
Material Available
|
Stainless Steel:SS201,SS301, SS303, SS304, SS316, SS416 etc.
35CrMo 40CrMo42 CrMo Steel:mild steel, Carbon steel, 4140, 4340, Q235, Q345B, 20#, 45# Aluminum:AL6061, Al6063, AL6082, AL7075, AL5052, A380 etc. Iron:A36, 45#, 1213, 12L14, 1215 etc. Plastic:ABS, PC, PE, POM, Delrin, Nylon, , PP,PEI, Peek or as customer required . |
|
CNC Turning
|
-0.5 - -300 * 750 mm,+/-0.005 mm
|
|
CNC Milling
|
510 * 1020 * 500 mm(max),+/-0.001 mm-+/-0.005 mm
|
|
Surface Finish
|
Aluminum:Clear Anodized,Color Anodized,Sandblast Anodized,Chemical Film,Brushing,Polishing,Chroming.
Stainless Steel:Polishing,Passivating,Sandblasting,Laser engraving. Steel:Zinc plating,Oxide black,Nickel plating,Chrome plating,Carburized, Heat treatment,Powder Coated. Plastic:Painting,Chrome plating,polishing,Sandblast,Laser engraving. |
|
Drawing Format
|
IGS,STP,X_T ,DXF,DWG , Pro/E, PDF
|
|
Test Equipment
|
Measurement instrument, Projector, CMM, Altimeter, Micrometer, Thread Gages, Calipers, Pin Gauge etc.
|
