Quick Details
-
Place of Origin:
-
Anhui, China
-
Power:
-
8kw
-
Dimension(L*W*H):
-
1900*1950*1600mm
-
Sheet Thickness (mm):
-
0.4-1.5
-
Production Capacity:
-
15m/min
-
Material Width:
-
1500mm
-
Coiler max weight:
-
7T
-
Name:
-
Auto duct line 2
-
Main import brand:
-
Siemens Mitsubishi Schneider
-
Raw material:
-
steel
-
Color:
-
Customer Selected
-
Machine Type:
-
Duct making
-
work material:
-
Galvanized /stainness sheet
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
Pakistan, India, Japan
-
After-sales Service Provided:
-
Video technical support, Online support
-
Certification:
-
CE ISO
Quick Details
-
Brand Name:
-
SUNTAY
-
Condition:
-
new
-
Weight:
-
3.5T
-
Place of Origin:
-
Anhui, China
-
Power:
-
8kw
-
Dimension(L*W*H):
-
1900*1950*1600mm
-
Sheet Thickness (mm):
-
0.4-1.5
-
Production Capacity:
-
15m/min
-
Material Width:
-
1500mm
-
Coiler max weight:
-
7T
-
Name:
-
Auto duct line 2
-
Main import brand:
-
Siemens Mitsubishi Schneider
-
Raw material:
-
steel
-
Color:
-
Customer Selected
-
Machine Type:
-
Duct making
-
work material:
-
Galvanized /stainness sheet
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
Pakistan, India, Japan
-
After-sales Service Provided:
-
Video technical support, Online support
-
Certification:
-
CE ISO

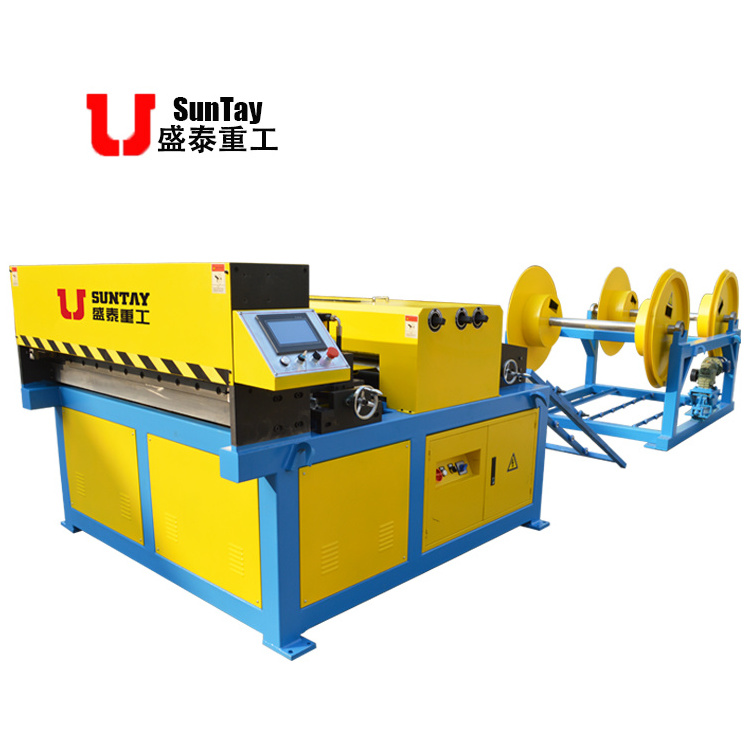

Air conditioning system AML-II-1250 auto air duct production line with electric decoiler
Working Schematic Diagram
Function
Duct production line 2 can drive blanking for duct and TDF flange forming machine at the same time. Combined with TDF flange forming machine, rolling reel machine, crimping machine and relevant corner code, duct production line 2 can produce high-quality products.
Performance Features
* Aluminium alloy suspension arm makes the machine easy to operate.
* The build-in control cabinet reduces wiring as a whole structure and makes it easy to move.
* The imported configuration is very stable and comfortable to use.
* The build-in control cabinet reduces wiring as a whole structure and makes it easy to move.
* The imported configuration is very stable and comfortable to use.
Main Import Configuration
*
Germany Siemens CNC system +Schneider electrical system
*
Beijing Huade or hydraulic system from Taiwa
*
Japan Omron encoder
*
Japan
Mitsubishi
Control system
Basic Configuration
*
One electric coil cradle (two material trays)
* One set of leveling and beading equipment
* Hydraulic angle-shearing machine with four sets of die
* Hydraulic sheet-shearing machine
* A set of CNC computer control system and production software
* One set of leveling and beading equipment
* Hydraulic angle-shearing machine with four sets of die
* Hydraulic sheet-shearing machine
* A set of CNC computer control system and production software
Main Technical Parameters
|
Model
|
Sheet thickness(mm)
|
Max width(mm)
|
Max working speed(m/min)
|
Coiler max weight(T)
|
Dimensions(m)
|
|
|
Power(kw)
|
Weight
(T)
|
||
|
|
|
|
|
|
L
|
W
|
H
|
|
|
||
|
ADL-2-1250
|
0.5-1.2
|
1250
|
15
|
7
|
1900
2500
|
1950
1950 |
1500
1600 |
8
|
3.2
|
||
|
ADL-2-1500
|
0.5-1.2
|
1500
|
15
|
7
|
1900
2500
|
2150
2150 |
1500
1600 |
8
|
3.7
|
||
Main Import Configuration
Electronic Parts
Brand: Schneider from Germany
Suntay offer Schneider electric of Germany on the duct production line for customer choose.
Brand: Schneider from Germany
Suntay offer Schneider electric of Germany on the duct production line for customer choose.
PLC / Driver / Inverter
Brand: Mitsubishi from Japan
Our standard of all duct line machines use china brand PLC, Driver and Inverter, Japan- Mitsubishi and Schneider brand also can be choosed.
Brand: Mitsubishi from Japan
Our standard of all duct line machines use china brand PLC, Driver and Inverter, Japan- Mitsubishi and Schneider brand also can be choosed.
Control system
Brand: Mitsubishi from Japan
Usually we use China brand control system. Mitsubishi display screen and overall set of Mitsubishi Control system also can be
choosed.
Brand: Mitsubishi from Japan
Usually we use China brand control system. Mitsubishi display screen and overall set of Mitsubishi Control system also can be
choosed.
Encoder
Brand: Omron from Japan
We use Omron encoder, the technology is more accurate.
Brand: Omron from Japan
We use Omron encoder, the technology is more accurate.
