Quick Details
-
Weight (KG):
-
0.05 KG
-
Style:
-
High light output
Quick Details
-
Place of Origin:
-
China
-
Spare Parts Type:
-
None
-
Brand Name:
-
OPTICRYSTAL
-
Weight (KG):
-
0.05 KG
-
Style:
-
High light output
Products Description

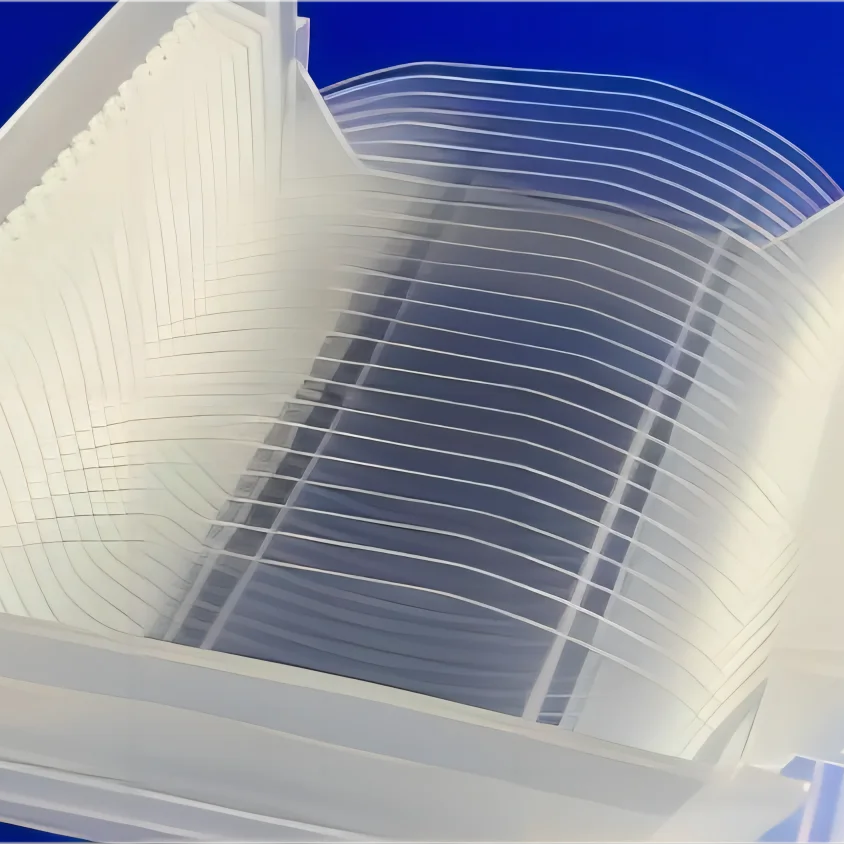

Quartz
Quartz crystal is a kind of piezoelectric crystal. The piezoelectric effect of quartz crystal is used to realize frequency control, stability or selection. The electronic components made include quartz crystal resonators, quartz crystal oscillators and quartz crystal filters. Mainly used in communications, home appliances, automobiles and other various industrial and consumer electronics products.
Typical application :
surface wave substrate
optical window
Carrier Wafer or Bulk Wave Chip
Also used to make commercial and military grade crystals
filter
OCXO
TCXO
Product Parameters
|
Growth method
|
Hydrothermal
|
|
Crystal structure
|
hexagonal
|
|
Lattice constant
|
a=4.914Å
c=5.405Å |
|
Density
|
2.684g/ cm3
|
|
Hardness
|
7 (mohs)
|
|
Heat capacity
|
0.18cal/gm
|
|
Melting point
|
1610°C (phase transition point: 573.1°C)
|
|
Thermal conductivity
|
0.0033cal/cm℃
|
|
Thermoelectric constant
|
1200uv/°C (300°C)
|
|
Refractive index
|
1.544
|
|
Thermal expansion coefficient
|
α11: 13.71×10 6 /℃ α33: 7.48×10 6 /℃
|
|
Q value
sound velocity, SAW level frequency constant piezoelectric coupling |
1.8×10 6 min
3160 (m/sec) 1661 (kHz/mm) K2(%) BAW: 0.65 SAW: 0.14 |
|
Wrapping
|
IEC Grade
|
|
Material
|
quartz crystal
|
|
|
|
|||
|
Tangential
|
X/Y/Z/AT32, 33, 36/BT/ST42.75°-cut etc
|
|
|
|
|||
|
Size
|
3"(76.2mm)
|
4" (100mm)
|
6"(150mm)
|
8"(200mm)
|
|||
|
Tolerance (±)
|
<0.20 mm
|
|
|
|
|||
|
Thickness
|
0.08mmMin
|
0.10mmMin
|
0.20mmMin
|
≥0.35mm
|
|||
|
main reference edge
|
22mm
|
32mm
|
42.5mm
|
57.5mm
|
|||
|
LTV (5mmx5mm)
|
＜1µm
|
|
|
|
|||
|
TTV
|
＜3µm
|
|
|
|
|||
|
Bow
|
-30＜bow＜30
|
|
|
|
|||
|
Warp
|
＜40µm
|
|
|
|
|||
|
PLTV(<0.5um)
|
≥95%(5mm*5mm)
|
|
|
|
|||
|
Orientation Flat
|
All available
|
|
|
|
|||
|
Polishing
|
Single Throw/Double Throw
|
|
|
|
|||
|
Surface roughness
|
Ra＜0.5nm
|
|
|
|
|||
|
Back
|
0.2-0.5µm
|
|
|
|
|||
|
Chamfer
|
R=0.2mm
|
|
|
|
|||
|
Material properties
|
ECD
|
better than grade 4
|
|
|
|||
|
|
envelope
|
Better than II
|
|
|
|||
|
|
Q-Value
|
better than C
|
|
|
|||
|
Surface finish
|
Particle ￠>0.3 µm
|
≦ 30
|
|
|
|||
|
|
Scratches, Chipping
|
none
|
|
|
|||
|
|
flaw
|
Five chipped edges, scratches, stains, etc.
|
|
|
|||
|
Package
|
quantity
|
25 pieces/box
|
|
|
|||
