High-brightness
*
High reliability
*
Low-voltage characteristics
*
Narrow view angle
*
Pb FREE Products
*
RoHS Compliant
- Product Details
- {{item.text}}
Quick Details
-
Description:
-
5mm 940nm IR led
-
Place of Origin:
-
Taiwan, China
-
Application:
-
LAMP
-
Max. Forward Voltage:
-
1.8
-
Max. Reverse Voltage:
-
5
-
Max. Forward Current:
-
100
-
Max. Reverse Current:
-
10
-
Operating Temperature:
-
-25~85
-
Package / Case:
-
.
-
Capacitance @ Vr, F:
-
52
-
Power Dissipation (Max):
-
100mW
-
Size:
-
5mm
-
Emitting color:
-
IR
-
Material:
-
GaAlAs
-
Storage temperature:
-
-25 ~ 85
-
Lens color:
-
Water Clear
-
Certification:
-
ROHS
-
Forward Current:
-
100 MA
-
Product name:
-

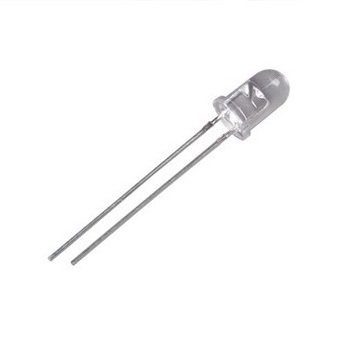

940nm IR LED 5mm Round Infrared LED
Quick Details
-
Model Number:
-
ADR050L-2030EIR940
-
Brand Name:
-
Super Brite/ All Brite
-
Mounting Type:
-
.
-
Description:
-
5mm 940nm IR led
-
Place of Origin:
-
Taiwan, China
-
Application:
-
LAMP
-
Max. Forward Voltage:
-
1.8
-
Max. Reverse Voltage:
-
5
-
Max. Forward Current:
-
100
-
Max. Reverse Current:
-
10
-
Operating Temperature:
-
-25~85
-
Package / Case:
-
.
-
Capacitance @ Vr, F:
-
52
-
Power Dissipation (Max):
-
100mW
-
Size:
-
5mm
-
Emitting color:
-
IR
-
Material:
-
GaAlAs
-
Storage temperature:
-
-25 ~ 85
-
Lens color:
-
Water Clear
-
Certification:
-
ROHS
-
Forward Current:
-
100 MA
-
Product name:
-
940nm IR LED 5mm Round Infrared LED
Specification
5mm IR 940 nm 30 Degree LED
ADR050L-2030EIR940
Product Description
Applications
Package Outline Dimensions
Luminous
Color
Absolute Maximum Ratings(Ta=25℃)
|
Parameter
|
Symbol
|
Max
|
Unit
|
|
Power Dissipation Per Chip
|
Pd
|
100
|
mW
|
|
Forward Current Per Chip
|
IF
|
100
|
mA
|
|
Peak Forward Current
(0.1 ms Pulse Width, 10% Duty Cycle) |
IPF
|
300
|
mA
|
|
Reverse Voltage Per Chip
|
VR
|
5
|
V
|
|
Operating Temp.
|
Topr
|
–25 ~ ＋85
|
℃
|
|
Storage Temp.
|
Tstg
|
–25 ~ ＋85
|
℃
|
Electro-Optical Characteristics(Ta=25℃)
