Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
MILES
-
Voltage:
-
110V-240V
-
Dimension(L*W*H):
-
1850*780*1220mm
-
Weight:
-
240 kg, 240kg
-
Product name:
-
Integrated cutting machine
-
Model:
-
MT-500T
-
Max cutting width:
-
500mm
-
Cutting speed:
-
50m/min
-
Cutting precision:
-
0.1mm
-
Cutting length:
-
1-9999mm
-
Advantage:
-
Fully Automic
-
Dimension:
-
1850*780*1220mm
Quick Details
-
Type:
-
Paper Cutting Machine
-
Production Capacity:
-
50 m/min
-
Max. workable width:
-
500mm
-
Place of Origin:
-
China
-
Brand Name:
-
MILES
-
Voltage:
-
110V-240V
-
Dimension(L*W*H):
-
1850*780*1220mm
-
Weight:
-
240 kg, 240kg
-
Product name:
-
Integrated cutting machine
-
Model:
-
MT-500T
-
Max cutting width:
-
500mm
-
Cutting speed:
-
50m/min
-
Cutting precision:
-
0.1mm
-
Cutting length:
-
1-9999mm
-
Advantage:
-
Fully Automic
-
Dimension:
-
1850*780*1220mm
Product Description

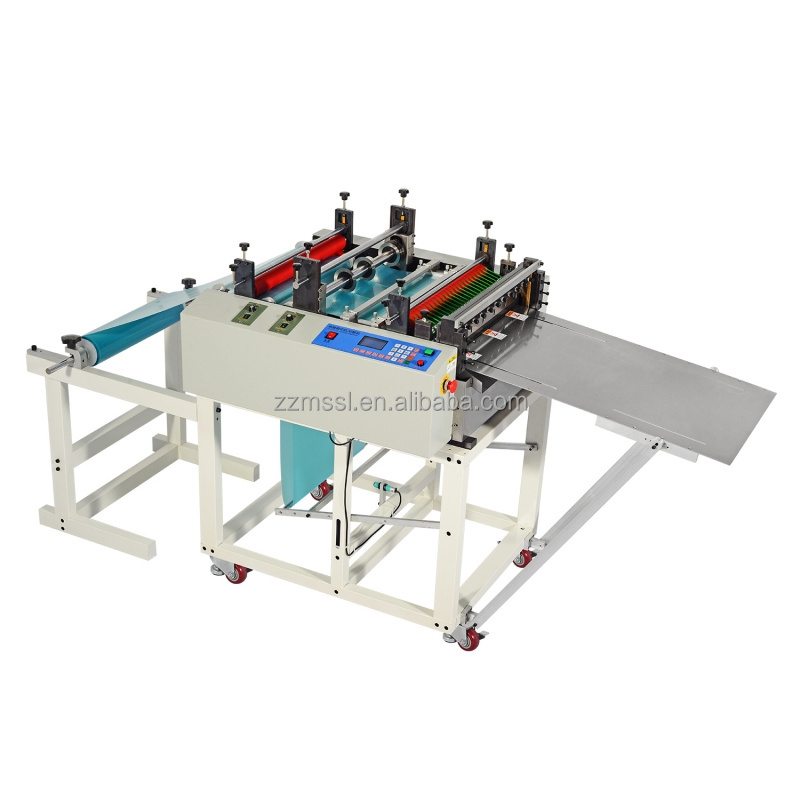

Self-adhesive Label Making Machine Roll To Sheet Plastic Pvc Opp Pet Film Non Woven Eva Wrap Dtf Film Cutting Machine
The cutting machine is designed for cutting almost all kinds of roll materials into sheet or pieces, such as pvc , copper foil,cloth, Non-woven fabric, Barley paper, Battery separator, aluminum foil, Non-woven fabric, Fast bar paper, PE membrane, Nickel foil, Conductive , Septum, Off type paper, Plastic sheet, Insulating paper, Reflection film, Mica film etc.
Specification
|
Model
|
MT-300T/400T/500T/600T/800T/1000T/1200T/1300T/1500T/1700T/1800T
|
|
Max cutting width
|
300/400/500/600/800/1000/1200/1300/1500/1700/1800mm
|
|
Cutting length
|
1-9999mm adjustable
|
|
Cutting precision
|
0.1mm
|
|
Cutting speed
|
40-60 pcs/min
|
|
Voltage
|
220V/110V,50/60hz, Ac
|
|
Language
|
Chinese and English (Spanish is Optional)
|
|
Package
|
Wooden case/Carton
|
|
Optional
|
Electronic eye, Knife slitting group, Round blades slitting group, Spring.Static Eliminator
|
Product Details
Chinese and English operating system
LCD large screen display, simple panel, simple operation. One-key switch between Chinese and English.
Using high-quality high-speed steel knife
The blade is sharp, durable, and ensures that the cut surface is smooth and free of burrs.
Round Slitting Blades Group
It is for some paper,PVC film, PU leather, wallpaper, felt,aluminum foil, kraft paper, canvas and so on.
Spring Device
Plastic and Metal Spring is optional. Flatten and straighten the material.
Automatic Feeding System
Tension System, Sensor High-sensitivity photoelectric sensor cooperates with motor to automatically sense pre-feeding material. Speed controller. Adjust the speed at any time.
Equips With The Stacking Table
The stacking table can collect the pieces/sheet of paper/non woven fabric/canvas, PU artificial leather, wallpaper, aluminum foil, etc. Loading is up to 50 kg.The position of the baffle can be adjusted.
Optional Parts
Matsushita Electronic Eye
Fully automatic location tracking.
Positioning and cutting, higher accuracy.
Printed materials.
Conveyor belt
Improve work efficiency and save labor.
Slitting Blades Group
It is for some paper,PVC film, PU leather, wallpaper, felt,aluminum foil, kraft paper, canvas and so on.
