Quick Details
-
Warranty:
-
12 months
-
Brand Name:
-
Glory Solar
-
Model Number:
-
GSF-80WA
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
1140*400mm(unfold) 400*300mm(folding)
-
Item name:
-

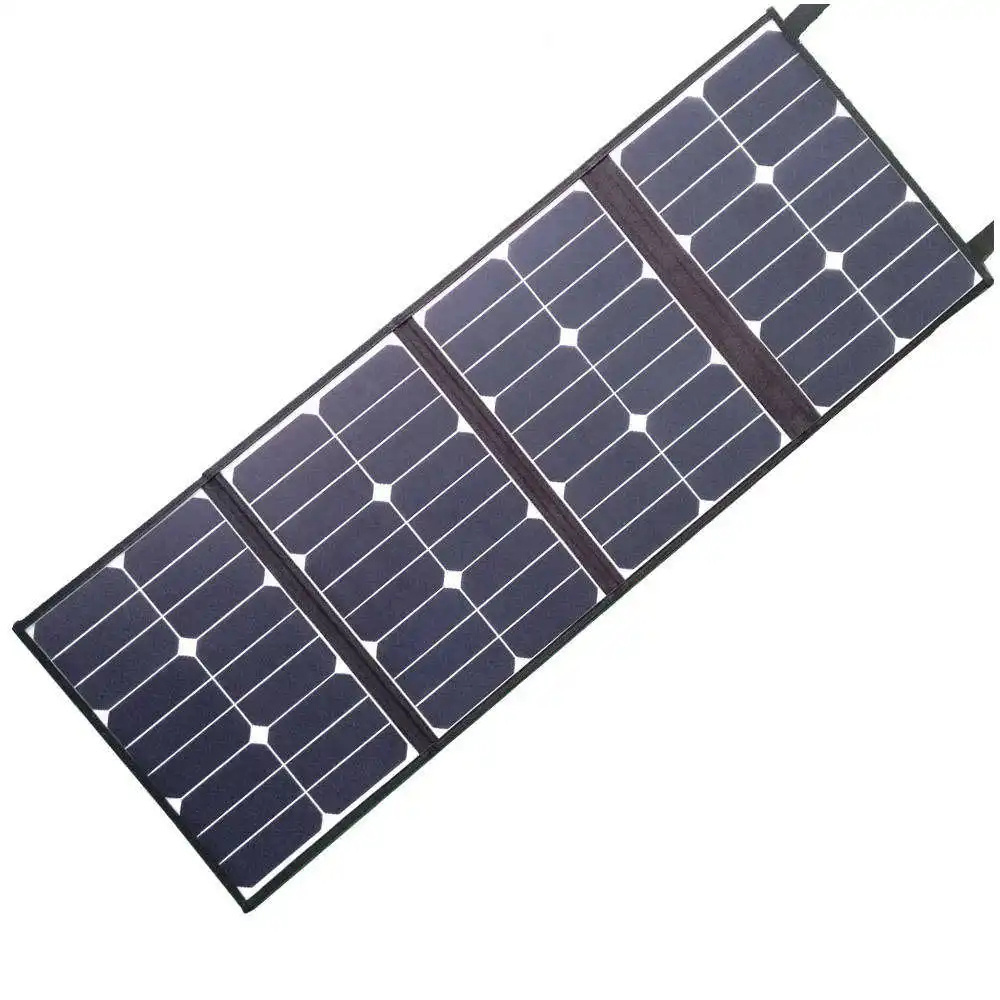

Foldable Flexible Solar Panel 80W For Emergency Power Supply
-
Solar cell:
-
High efficiency 22%
-
Folded size:
-
430*300mm
-
Open size:
-
1140mm*300mm
-
Color:
-
black
-
weight:
-
1.8KGS
-
Cerficate:
-
CE,ROHS
-
Customized:
-
Available
Quick Details
-
Cell size:
-
166mmx166mm
-
Type:
-
Foldable, Customized Solar Panel
-
Panel Efficiency:
-
22%
-
Warranty:
-
12 months
-
Brand Name:
-
Glory Solar
-
Model Number:
-
GSF-80WA
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
1140*400mm(unfold) 400*300mm(folding)
-
Item name:
-
Foldable Flexible Solar Panel 80W For Emergency Power Supply
-
Solar cell:
-
High efficiency 22%
-
Folded size:
-
430*300mm
-
Open size:
-
1140mm*300mm
-
Color:
-
black
-
weight:
-
1.8KGS
-
Cerficate:
-
CE,ROHS
-
Customized:
-
Available
22% Highest Efficiency 20V Foldable Flexible Solar Panel 80W For Emergency Power Supply
|
Specifications – series – 20W/fold |
|||||
|
Item No. |
GS F-80W |
GS F-100WA |
GS F-120W |
GS F-200WA |
|
|
Max power |
80W |
100W |
120W |
200W |
|
|
Power tolerance |
±3% |
±3% |
±3% |
±3% |
|
|
Cells brand |
|||||
|
Cells efficiency(%) |
22.60% |
22.60% |
22.60% |
22.60% |
|
|
M ax voltage |
26.4V |
16.5V |
19.8V |
33.1V |
|
|
Max current |
3.03A |
6.06A |
6.06A |
6.05A |
|
|
Open circuit voltage(Voc) |
31.7V |
20V |
23.6V |
39.8V |
|
|
Short-circuit current(Isc) |
3.52A |
7.03A |
7.03A |
7.01A |
|
|
Unfolded size |
1140*400*5mm |
1420*400*5mm |
1700*400*5mm |
1560*820*5mm |
|
|
Folded size |
400*300*18mm |
400*300*23mm |
400*300*27mm |
410*305*45mm |
|
|
Weight |
1.4kgs |
2.2kgs |
2.6kgs |
4.5kgs |
|
|
Operating Temperature( ℃ ): |
-40 ℃ ~+85 ℃ |
||||
|
Power temperature coefficient |
-0.39 to -0.29 %/ ℃ |
||||
|
Voltage temperature coefficient |
-0.29%/ ℃ |
||||
|
Current temperature coefficient |
+0.05%/ ℃ |
||||
|
Nominal Operating Cell Temperature |
45 ± 2 ℃ |
||||
|
Measured at STC Condition: irradiance: 1000W /m2-AM1.5 Spectrum-Temperature: 25 ℃ |
|||||
