Quick Details
-
Fork Length:
-
1070mm
-
Fork Width:
-
125mm
-
Overall Dimensions:
-
1070mm*125mm*50mm
-
Weight (KG):
-
4180 kg
-
Product Name:
-
LPG Forklift
-
Type:
-
Lifting Tools
-
Power type:
-
Lpg Power
-
Model:
-
FG40
-
Key words:
-
forklift
-
Mast:
-
2 Stage/3 Stage
-
Engine:
-
GCT (NISSAN)
-
Loading Capacity:
-
4 ton
-
Color:
-
customization
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
TLTCM
-
Fork Length:
-
1070mm
-
Fork Width:
-
125mm
-
Overall Dimensions:
-
1070mm*125mm*50mm
-
Weight (KG):
-
4180 kg
-
Product Name:
-
LPG Forklift
-
Type:
-
Lifting Tools
-
Power type:
-
Lpg Power
-
Model:
-
FG40
-
Key words:
-
forklift
-
Mast:
-
2 Stage/3 Stage
-
Engine:
-
GCT (NISSAN)
-
Loading Capacity:
-
4 ton
-
Color:
-
customization

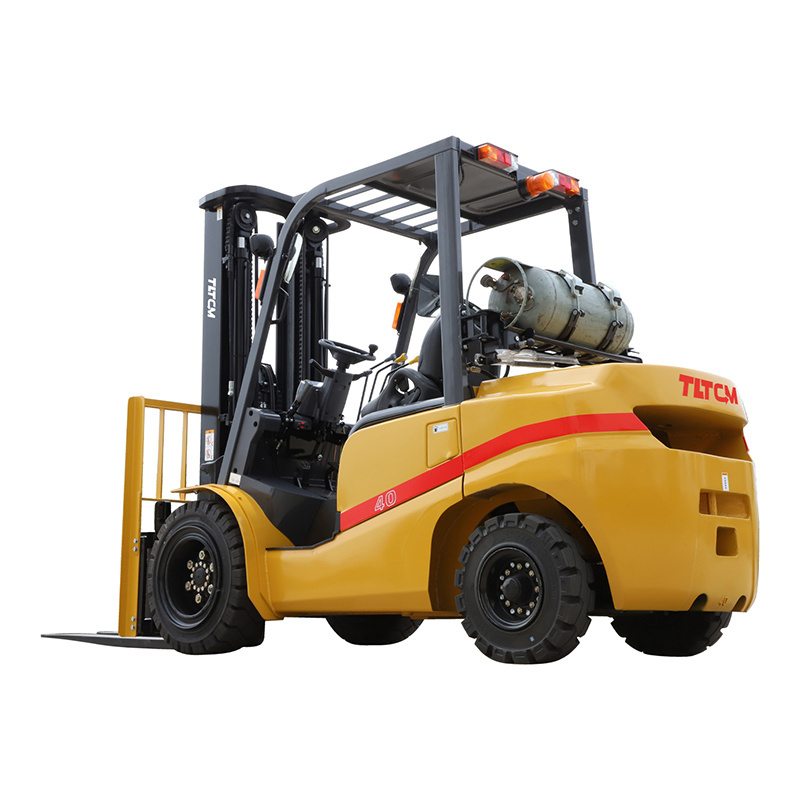

TLTCM 4 ton Gasoline forklift with CE certification China manufacture LPG forklift with NISSAN engine
1.
New adjustable seat makes operator more comfortable.
2.Work lights and warning lights make it safer and more efficient even in poor lighting conditions
3.New designed overhead guard protective device prevent the sudden accidents: The lifting system adopts buffering technology to reduce shock and vibration of the mast
4.Bigger and non-slip step: Bigger and non-slip step make the operating convenient and safe.
5.The full free 3-stage mast With advanced welding technology , Increase the stability of
ascension,durability and the width of front mast view, reduce the height of the instrument stand, expand the visibility of pallet fork tip and goods.
| FG35-FG40 GASOLINE FORKLIFT SPECIFICATION | |||||||
| General | 1 | Model | FG35 | FG40 | |||
| 2 | Power Type | LPG & Gasoline | LPG & Gasoline | ||||
| 3 | Rated Capacity | kg | 3500 | 4000 | |||
| 4 | Load Centre | mm | 500 | 500 | |||
|
Characteristic& Dimension |
5 | Lift Height | mm | 3000 | 3000 | ||
| 6 | Fork Size | L×W×T | mm | 1070×125×50 | 1070×125×50 | ||
| 7 | Mast Tilt Angle | F/R | Deg | 6°/12° | 6°/12° | ||
| 8 | Front Overhang (Wheel center to fork face) | mm | 485 | 495 | |||
| 9 | Ground Clearance(Bottom of mast) | mm | 140 | 140 | |||
| 10 | Overall Dimension | Length to face of fork(Without fork) | mm | 2835 | 2890 | ||
| 11 | Overall Width | mm | 1230 | 1410 | |||
| 12 | Mast Lowered Height | mm | 2150 | 2195 | |||
| 13 | Mast Extended Height(With backrest) | mm | 4175 | 4180 | |||
| 14 | Overhead Guard Height | mm | 2110 | 2120 | |||
| 15 | Turning Radius (outside) | mm | 2570 | 2700 | |||
| Performance | 16 | Speed | Travel (Empty load) | km/h | 20 | 19 | |
| 17 | Lifting (Full load) | mm/s | 440 | 320 | |||
| 18 | Max.Gradeability (No load/Full load) | % | 20 | 20 | |||
| Chassis | 19 | Tire | Front | mm | 28×9-15-12PR | 250-15-16PR | |
| 20 | Rear | mm | 6.50-10-10PR | 6.50-10-10PR | |||
| 21 | Wheelbase | mm | 1800 | 1900 | |||
| 22 | Service weight | kg | 4700 | 5100 | |||
| Power&Transmission | 23 | Battery | Voltage/Capacity | V/Ah | 12/80 | 12/80 | |
| 24 | Engine | Model | K25 | K25 | |||
| 25 | Manufacture | GCT (NISSAN) | GCT (NISSAN) | ||||
| 26 | Rated output/r.p.m. | kw | 46/2450 | 43/2300 | |||
| 27 | Rated torque/r.p.m. | N·m | 184.7/1600-1800 | 177.6-196.3/1700 | |||
| 28 | No.of Cylinder | 4 | 4 | ||||
| 29 | Bore×Stroke | mm | 95.4×107 | 98×110 | |||
| 30 | Displacement | cc | 3059 | 3318 | |||
| 31 | Fuel Tank Capacity | L | 70 | 70 | |||
| 32 | Transmission | Type | Hydraulic | Hydraulic | |||
| 33 | Stage | FWD/RVS | 1/1 | 1/1 | |||
1. Why choose us?
As a manufacturer, we are committed to offer not only products with high quality and performance and competitive price, such as LPG forklift,mini forklift,diesel forklift,electric forklift and so on but also in-time delivery and comprehensive 7/24 after-sale services.
2. What is the product range of our factory ?
Tianli Times is a large-scale machinery manufacturing enterprise primarily specializes in supplying forklift trucks and related attachments. We can also customize non-standard products according to customer's requirements.
3. What payment terms can we accept?
Normally 30% deposit is required in advance, 70% balance shall be settled
before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
4. What Certificates do we have?
All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed.
All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if needed.
5.How about our delivery time?
Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always
have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
6. Can we provide OEM service?
We can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
