Quick Details
-
Weight (KG):
-
0.01 KG
-
Wavelength:
-
650nm
-
Po:
-
5mW
-
Vop:
-
3-5V
-
Iop:
-
30-50mA
-
Operating Temperature:
-
-10℃~40℃
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Spare Parts Type:
-
Laser Module
-
Brand Name:
-
Lanji
-
Weight (KG):
-
0.01 KG
-
Wavelength:
-
650nm
-
Po:
-
5mW
-
Vop:
-
3-5V
-
Iop:
-
30-50mA
-
Operating Temperature:
-
-10℃~40℃

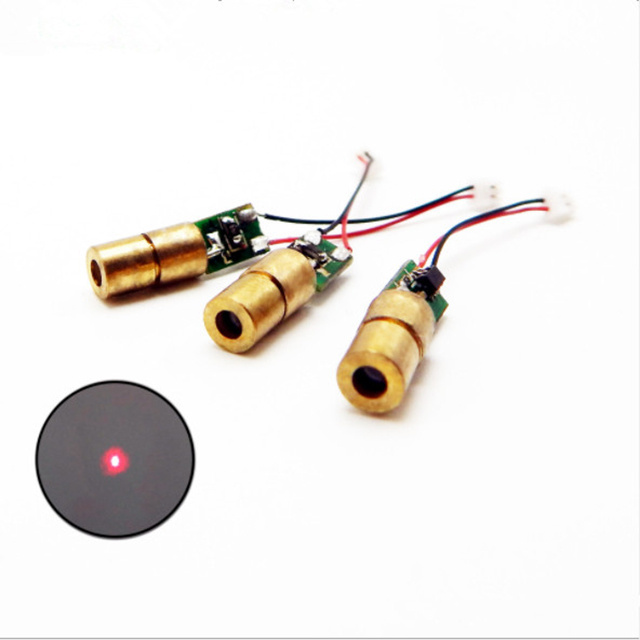

650nm 5mW Red Laser Module
Packaging
100 pieces/box, 10 boxes/ctn
Shipping
1. 2 weeks after receiving the payment by T/T, PAYPAL, and other ways.
2. It will be shipped by DHL/FedEx/UPS/TNT or other special ways, please contact us to choose the best one.
Photoelectronic Parameters
| Item | Parameter |
| Dimensions | ø6.5*10.5mm |
| Wavelength | 650nm |
| Output Power | 5mW |
| Operating Voltage | 3-5V |
| Operating Current | 30-50mA |
| Storage Temperature | -40℃~85℃ |
| Working Temperature | -10℃~40℃ |
| Wire Length | 45mm |
| Irradiation Distance | 10m |
| Light Spot Size | <10mm |
| Service Life | 8000H |
Dimensions
Our services
We provide professional ODM and OEM services for laser modules. We are a manufacturer of laser modules and a provider of laser light source solutions from design to production.
The power of our laser diode ranges from 5mw to 5W, and the wavelength is as follows:
405nm 410nm 445nm 450nm 455nm 488nm 505nm 510nm 515nm 520nm 532nm 635nm 638nm 642nm 650nm 658nm 780nm 785nm 808nm 820nm 830nm 850nm 905nm 940nm 980nm RGB and so on.
Laser application range
We has been successfully applied to the laser: laser safety, non-contact testing, laser radar, dust detection, scanning detection, face recognition, 3 d printing, laser engraving, human-computer interaction, AR, medical hairdressing, laser system network, stage lighting, bar code scanning, the focus of the camera, night vision, geological exploration, indicating positioning, optical display, optical storage, etc.
About the warranty
All products have been tested and packed well before shipment. Please test the product before assembling. If there is any problem, please inform us within 3 days after receiving the product. If the situation is confirmed, we can arrange a replacement or refund for you.
