Quick Details
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
Power
-
Use:
-
Descaling / Stripping/derusting
-
Cleaning Type:
-
Other
-
Material:
-
Other
-
Dimension(L*W*H):
-
1750x1114x752(mm)
-
Marketing Type:
-
New Product 2024
-
Key Selling Points:
-
High pressure
-
Weight (KG):
-
1900 kg
-
PW-103:
-
100Kw,280Mpa,190Lpm
-
PW-203:
-
200Kw,280Mpa,635Lpm
-
PW-253:
-
250Kw,280Mpa,1020Lpm
-
PW-303:
-
300KW,320Mpa,56Lpm
-
PW-453:
-
450Kw,200Mpa,1020Lpm
Quick Details
-
Cleaning Process:
-
clean water
-
Power:
-
450KW
-
Max. Pressure:
-
200Mpa
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
Power
-
Use:
-
Descaling / Stripping/derusting
-
Cleaning Type:
-
Other
-
Material:
-
Other
-
Dimension(L*W*H):
-
1750x1114x752(mm)
-
Marketing Type:
-
New Product 2024
-
Key Selling Points:
-
High pressure
-
Weight (KG):
-
1900 kg
-
PW-103:
-
100Kw,280Mpa,190Lpm
-
PW-203:
-
200Kw,280Mpa,635Lpm
-
PW-253:
-
250Kw,280Mpa,1020Lpm
-
PW-303:
-
300KW,320Mpa,56Lpm
-
PW-453:
-
450Kw,200Mpa,1020Lpm
Product Description
Product parameters:

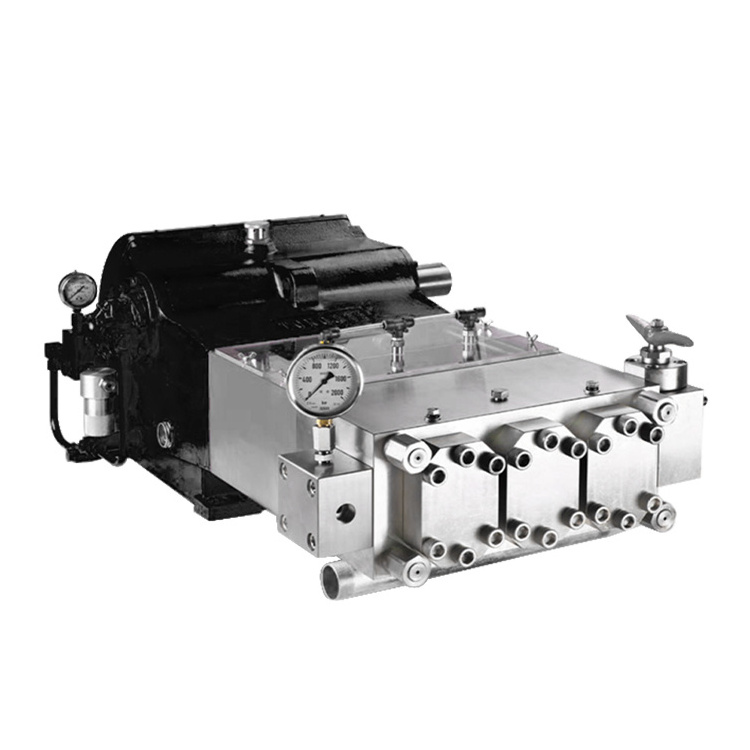

PW-453 bare pump
| Single pump weight | 1900kg |
| Single pump size | 1750x1114x752(mm) |
| Maximum pressure | 200Mpa |
| Maximum flow | 1020Lpm |
| Rated power | 450kw |
| Selectable ratio | 3.5:1 4.09:1 |
| Recommended lubricant: | Shell Pressure Resistant S2G 220 |
| Electric drive(ED) Power:450kw Pump Speed:414rpm Ratio:3.5:1 | |||||||||
| Pressure | PSI | 30000 | 25000 | 20000 | 15000 | 10000 | 5000 | 4350 | 3625 |
| BAR | 2000 | 1700 | 1400 | 1000 | 700 | 345 | 300 | 250 | |
| Flow | L/M | 107 | 123 | 158 | 218 | 290 | 575 | 669 | 874 |
| Bore | MM | 28 | 30 | 34 | 40 | 46 | 65 | 70 | 80 |
| Diesel Drive(DD) Power:500kw Pump Speed:440rpm Ratio:4.09:1 | |||||||||
| Pressure | PSI | 30000 | 25000 | 20000 | 15000 | 10000 | 5000 | 4350 | 3625 |
| BAR | 2000 | 1700 | 1400 | 1000 | 700 | 345 | 300 | 250 | |
| FLOW | L/M | 113 | 130 | 167 | 231 | 307 | 610 | 709 | 926 |
| Bore | MM | 28 | 30 | 34 | 40 | 46 | 65 | 70 | 80 |
Application
Application:
Ship hull surface preparation
Painting removal
Rust removal
Water tank/Oil tank deposits removal
Industrial high pressure cleaning
Water blasting
Hydro jetting
Pressure testing
Industrial tube/pipe cleaning,etc
