Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
RECI
-
Marking Head Brand:
-
SINO
-
Weight (KG):
-
76 KG
-
Core Components:
-
Laser source
-
Name:
-
Mini Laser Marking Machine Logo Maker Machine Logo Engraving Machine
-
Laser fower:
-
20W 30W 50W 60W 80W 100W
-
Laser wavelength:
-
1064nm±10nm
-
Marking Speed:
-
10000mm/s
-
Marking depth:
-
0~0.5mm
-
Engraving line speed:
-
≤7000mm/s
-
Graphic format supported:
-
ics,text, barcode, batch number, serial Number, etc.
-
Marking material:
-
Metal and nonmetal materials
-
Laser source:
-
Raycus /JPT / IPG /MAX
-
Laser module life:
-
>100000hours
Quick Details
-
Working Accuracy:
-
0.01mm
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
RECI
-
Marking Head Brand:
-
SINO
-
Weight (KG):
-
76 KG
-
Core Components:
-
Laser source
-
Name:
-
Mini Laser Marking Machine Logo Maker Machine Logo Engraving Machine
-
Laser fower:
-
20W 30W 50W 60W 80W 100W
-
Laser wavelength:
-
1064nm±10nm
-
Marking Speed:
-
10000mm/s
-
Marking depth:
-
0~0.5mm
-
Engraving line speed:
-
≤7000mm/s
-
Graphic format supported:
-
ics,text, barcode, batch number, serial Number, etc.
-
Marking material:
-
Metal and nonmetal materials
-
Laser source:
-
Raycus /JPT / IPG /MAX
-
Laser module life:
-
>100000hours

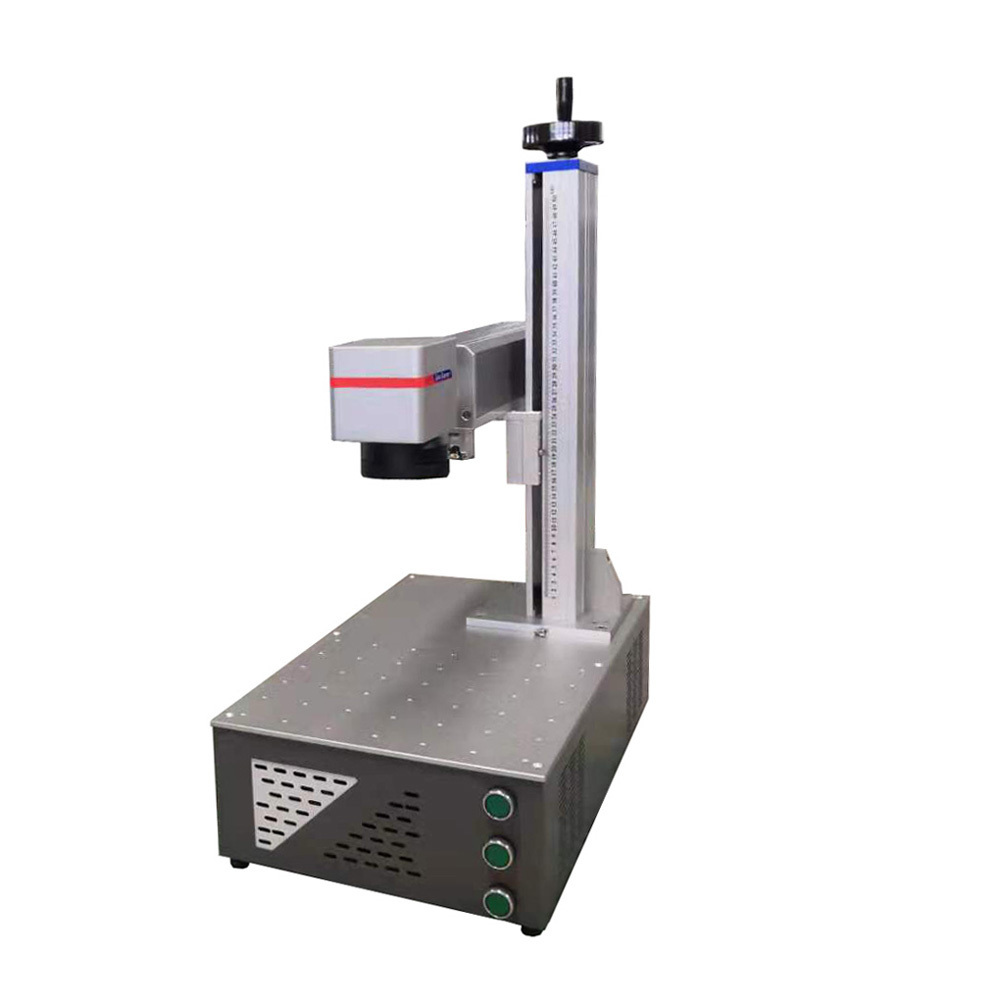

Mini Laser Marking Machine Logo Maker Machine Logo Engraving Machine
1. Compactness, With the unique all built-in integration design, the optical, electronic and mechanical components are highly intergrated, so that the whole machine weight only 35kg. It can be called the smallest fiber marker in the world. In addition, it adopts imported fiber laser, and coupled with all air-cooled design, it need not external cooling devices.
2. High durability, The laser module has a long service life(greater than 100,000 hours; while the traditional lamp pump YAG can only serve hundreds of hours and the semiconductor can serve 20,000 hours or so )
3. Low consumption, Due to the all air-cooled design, no consumable materials and free of maintenance, it has a low cost at use. Furthermore, it saves energy with a total power below of 0.5kw.
4. High speed, it applies imported high-speed galvanometer of traditional lamp-pumped maker and the second-generation of semiconductor marker(depend on the marking material).
Main Parts of the laser marking machine
Techincal parameter
|
Model |
RC-20F |
| Laser power | 20W 30W 50W 60w 80w 100w |
| Laser wavelength | 1064±10nm |
| Q-frequency | 20KHZ~100KHZ |
| Pules frequency | 20KHZ~200KHZ |
| Divergence | 0.3mard |
| Marking range | 110*110mm/205*205mm/290*290mm |
| Minimum line width | 0.01mm |
| Minimum character | 0.1mm |
| Marking speed | 1000mm/s |
| Marking depth | 0~0.5mm |
| Repeatability accuracy | ±0.001mm |
| Beam quality | M2:1.2~1.8 |
| Marking format | ics text, barcodes, two-dimensional code, automatically marking the date, batch number, serial Number, frequency, etc |
| Graphic format supported | bmp, jpg, gif, tga, png, tif, ai, dxf, dst, plt, etc |
| Working voltage | 220V±10%/50Hz/4A |
| Unit power | <0.5kw |
| Use of the environment | Clean and dust free or less |
| Working condition:Humidity | 5%-75%,Free of condensed water |
| Laser module life | >100000 hours |
| The whole life | More than 15 years |
Applicable industries
Mobile phone keypad, plastic translucent keys, electronic components, integrated circuits(IC), electrical appliances, communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, kewerly, auto parts, luggage buckle, cooking utensils, stainless steel products and other industries.
Applicable materials
Matels (including rare matals ), engineering plastics, eletroplating maerials, coating materials, plastics, rubber, epoxy resin, ceramic, plastic, ABS, PVC, PES, steel, titanium, copper and other materials.
Samples
Before Sales
1.We will recommend the most suitable machine according to your requirements. The machine can also customised.
2.Samples are made for free. Videos and pictures will be made to record the whole process of how the machine working. All these will send to you timely to assist fully understand of the machine.
3.Free training for how to operate the machine.Videos and files will be provided.
4.Any requirements or questions will be replied timely to save your time and cost.
5.Free installation and test before sending and free training for operators.
After sales
1.Timely inform the producing process and the transporting information of the machine.
2.Lively and fast technical guide and solution within 24 hours by email and web,msn or skype!
3.Two year warranty for the whole machine.Three year warranty for laser source.
4.Engineers available for overseas service.
