Quick Details
-
Color:
-
Red, green, yellow, blue, white, amber/Customized
-
Panel Size:
-
0.25 inch- 8 inch, 0.25 inch- 8 inch
-
Place of Origin:
-
China
-
Model Number:
-
WD0XXXX
-
use:
-
Numeric display, Timer, Clock, Home appliance
-
Specification:
-

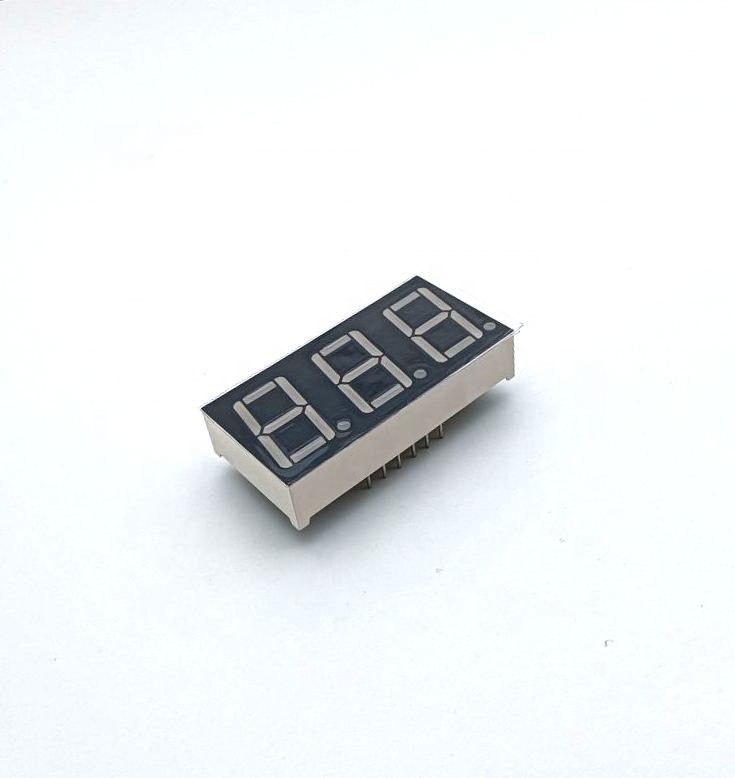

7 segment led display
-
Certification:
-
ROHS/REACH/ISO
-
Warranty:
-
3 years
-
Operating temperature:
-
-35~+85℃
-
Surface color:
-
Black/grey
-
Digit size:
-
0.25 inch-8 inch
-
Segment color:
-
Red, green, yellow, blue, white, amber
-
Display function:
-
Number/time/temperature display
-
Certificate:
-
ROHS/REACH/ISO
Quick Details
-
Application:
-
Indoor
-
Type:
-
LED
-
Brand Name:
-
Sangao
-
Color:
-
Red, green, yellow, blue, white, amber/Customized
-
Panel Size:
-
0.25 inch- 8 inch, 0.25 inch- 8 inch
-
Place of Origin:
-
China
-
Model Number:
-
WD0XXXX
-
use:
-
Numeric display, Timer, Clock, Home appliance
-
Specification:
-
7 segment led display
-
Certification:
-
ROHS/REACH/ISO
-
Warranty:
-
3 years
-
Operating temperature:
-
-35~+85℃
-
Surface color:
-
Black/grey
-
Digit size:
-
0.25 inch-8 inch
-
Segment color:
-
Red, green, yellow, blue, white, amber
-
Display function:
-
Number/time/temperature display
-
Certificate:
-
ROHS/REACH/ISO
Color:
| Led color | Blue | Green | Yellow-Green | Yellow | Amber | Orange | Red | White |
| Wave length(nm) | 465-475 | 515-525 | 565-575 | 585-595 | 600-610 | 620-630 | 635-650 | / |
| Led chip | GaN | GaP | GaP | GaAsP | GaAsP | GaAsP | AlInGaP | GaN+Phosphor |
Absolute Max Rating (25℃, take yellow-green led as sample):
| Symbol | Parameter | Value | Unit |
| PAD | Power Dissipation per segment | 60 | mW |
| VR | Reverse Volrage per segment | 5 | V |
| IAF | Continuous Forward Current per segment | 25 | mA |
| IPF | Peak Forward Vurrent per segment (Duty-0.1, 1KHz) | 80 | mA |
| / | Derating Linear from 25℃ per segment | 0.33 | mA/℃ |
| Topr | Operating Temperature Range | -35~+85 | ℃ |
| Tstg | Storage Temperature Range | -35~+85 | ℃ |
