Quick Details
-
Model Number:
-
EMI GASKET
-
Product name:
-
solid silicone gaskets
-
Basic:
-
Silicone,fluorosilicone
-
Size:
-
custom made
-
Application:
-
Microwave Waveguide System,metal boxes sealing
-
Volume resistivity:
-
0.004ohm
-
Shielding effectiveness:
-
>90db
-
Style:
-
Ag/Al conductive rubber gasket
-
Feature:
-
conductive and sealing
-
Type:
-
Molding , Bonding or die cutting
-
filler:
-
Ni/C,AL/Ag,AL/cu,AL/glass
Quick Details
-
Processing Service:
-
Moulding, Cutting, Customized
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BRL
-
Model Number:
-
EMI GASKET
-
Product name:
-
solid silicone gaskets
-
Basic:
-
Silicone,fluorosilicone
-
Size:
-
custom made
-
Application:
-
Microwave Waveguide System,metal boxes sealing
-
Volume resistivity:
-
0.004ohm
-
Shielding effectiveness:
-
>90db
-
Style:
-
Ag/Al conductive rubber gasket
-
Feature:
-
conductive and sealing
-
Type:
-
Molding , Bonding or die cutting
-
filler:
-
Ni/C,AL/Ag,AL/cu,AL/glass

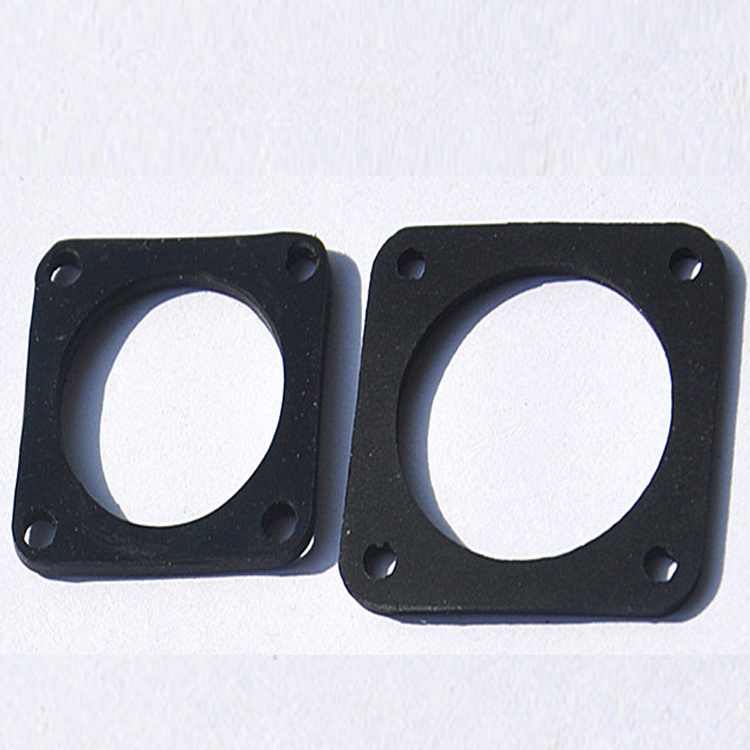

Silicone Gasket Seal Custom-made Silicone for emi shielding,die cutting electrically conductive solid silicone gaskets
Product details
Silver plated aluminum conductive silicone material is a blue/beige conductive silicone product with conductive function and Elastic sealing function.
This gasket conductive by incorporating small conductive metal particles ( Silver plated aluminum ) throughout the material.
Other Material introduction
Benefits
Excellent conductivity on the entire surface
Excellent electromagnetic shielding effect
Easy die-cutting, kiss-cutting and slitting
Temperature ranges of -60 to +185 ºC (under certain circumstances, tolerance can be up to 220ºC)
| Property Of Conductive Elastomers | |||||
| Filler Material | Ni/C | Ag/Glass | Ag/Al | Ag/Cu | |
| Elastomer Type | SIL | SIL | SIL | SIL | |
| Physical properties | Test method | ||||
| Color | Grey | Yellow | Blue | Yellow | |
| Hardness (shore A) | 70±5 | 70±5 | 70±5 | 70±5 | |
| Density(g/cm3) | ASTM792 | 2.0±0.25 | 1.9±0.25 | 2.0±0.2 | 3.5±0.5 |
| Tensile strength (Mpa) | ASTM412 | 2.0 | 2.0 | 2.0 | 2.0 |
| Elongation At Break(%) | ASTM412 | 100 | 90/200 | 100/260 | 100/200 |
| Tear Strength (KN/m) | ASTM D624 | 6.2 | 5.3 | 5.3 | 7.0 |
| Compression Set (%) | ASTM D395 | 25 | 30 | 30 | 35 |
| Operating Temperature(℃) | Mil-G-83528 | -45~ 150 | -55~ 160 | -55~ 160 | -65~125 |
| Electrical properties | |||||
| Volume resistivity (Ω·cm) | Mil-G-83528 | <0.1 | <0.01 | <0.008 | <0.004 |
|
Volume resistivity
after aging test (Ω·cm) |
Mil-G-83528 | <0.1a | <0.01b | <0.008b | <0.01a |
| Shielding effectiveness 200KHz-10GHz(dB) |
GJB
6190-2008 |
70~100 | 80~105 | 100~115 | 115~120 |
|
Remarks: Ni/C=Nickel-plated graphite Ag/Cu=Silver-plated copper Ag/Al=Silver-plated-aluminum Ag/Glass=Silver-plated glass SIL=Silicone |
|||||
Following are the pictures of our four kinds of conductive silicone material
Conductive elastomer rubber ,widely used in high tech electronic equipment especally on aerospace , vessels etc . can not only provide basic rubber seal ,but also the EMI / EMC shielding
and environmental seals at same time.
Application of products
1. Medium and small electronic computer case and microwave waveguide system
2. Aviation, spaceflight, ships and other shelter and electronic equipment;
3. Electronic products (such as computer chassis, mobile phones), telecommunications,
high-frequency control equipment;
4. Electric power, railways and other harsh environment of electronic equipment.
Company imformation&Certification
Shenzhen BRL rubber Established in year 2006, with its rich R&D resources and manufacturing experience,has been a basic manufacuture and supplier producing conductive elastomer in sheets,gaskets,strip,O ring etc,Thermal Interface Materials and TPV/TPE etc,which providing creative solution to improve the reliability of electronics equipments,EMI shielding and environmental seals . Our Headquarters (XXPT) is a national advanced technology and technology enterprise in Zhongguancun Science Park.With significant support from the Ministry of Science and Technology ,Beijing technology committee, XXPT were included in the gazelle plan.The plan is to promote high-tech and high-growth-rate enterprises in the park. As many as 500 enterprises were included in the plan. Company covering an area of 40 acres , have the annual sales of nearly 100 million,With the professional and experienced R&D teams about 15 reseach staff . including 4 of high professional title , 5 of master's degree personnel. Elastomer research center of Beijing uninversity of chemical technology take an active part in R&D and enhance the cooperation with our company for the project reseach and development . This reseach centre is the important part of the Beijing key laboratory of process and equipment design for high polymer material and Ministry of Education's key laboratory of process and equipment design for nanometer materials.with the Principal Investigators who 's been awarded as Changjiang Scholar" by Ministry of Education and National Science Fund for Distinguished Young Scholars . We have experienced and professional teams listed as 10 of professor , 6 of postdoctoral researcher , 30 of doctoral students , 150 of postgraduate,which will guarantee the technical supports for the product design and development . BRL focus on being the professional manufacture of special rubber at the whole world.not only providing the more reliable ,excellent quality products,but also offering more choice for our business parner at products innovation,promotioon on the value-added products and products competitiveness. We are ready to provide customers the most efficient and effective reliability solutions.
Package & shipping
Payment terms&Detail
1.T/T, western union ,paypa etc.
2.Samples lead time:7days after spec. confirmed.
3.Mass prodcution lead time:20-25work days after Order.
4.Pay 30% deposit,pay balance 70% before shipment.
Why choose us ?
1 . Our value massage is'' Quality is our culture''
2.Our core competencies is silicone products ,graphite products ,and thermal products
3.Competitive advantage products
5.Condidentiality agreement Bussiness Secrect Contract
6.Free sample offer & small order welcomed
7.Quality assurance contarct
8.we are the direct manufacture, which means the price advantage.
9. OEM/ODM Service are available.Can design and produce various Non-standard Rubber Parts
according to your requirement.
