Quick Details
-
Brand Name:
-
Banatton/OEM
-
Model Number:
-
SVC-2000VA
-
Product Name:
-

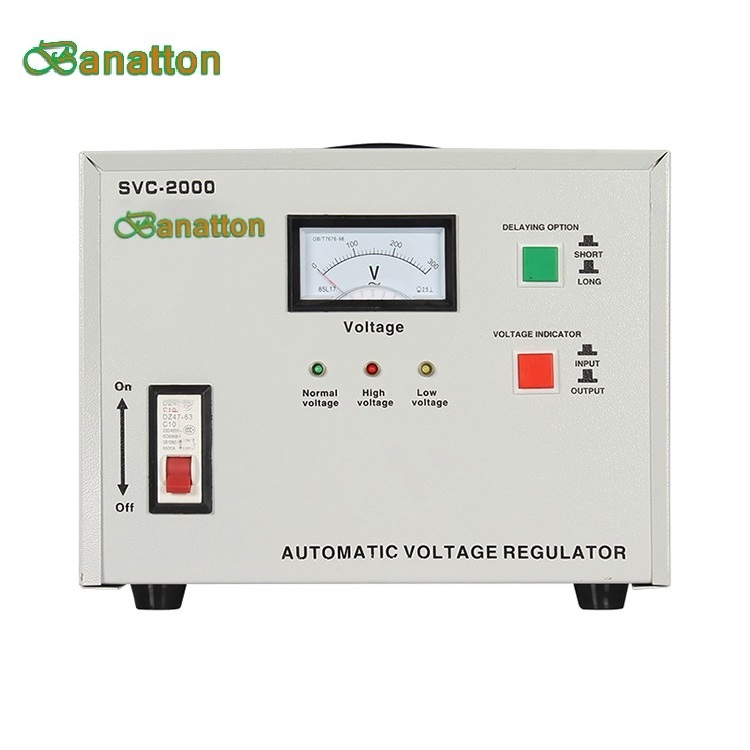

2000VA Single Phase AC Voltage Stabilizer/Regulator
-
Input Voltage:
-
140-260VAC
-
Output Voltage:
-
220V±1.5% / 3.5%
-
Protection:
-
Overvoltage/Overcurrent/Short Circuit/Overload/Overheat
-
Certificate:
-
CE / ISO9001/RoHS
-
Warranty:
-
1 year
-
Frequency:
-
>95%
-
Type:
-
Servo Motor Control
-
Display:
-
Meter Display or LCD
-
Output precision:
-
3%
Quick Details
-
Phase:
-
Single Phase
-
Current Type:
-
AC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Banatton/OEM
-
Model Number:
-
SVC-2000VA
-
Product Name:
-
2000VA Single Phase AC Voltage Stabilizer/Regulator
-
Input Voltage:
-
140-260VAC
-
Output Voltage:
-
220V±1.5% / 3.5%
-
Protection:
-
Overvoltage/Overcurrent/Short Circuit/Overload/Overheat
-
Certificate:
-
CE / ISO9001/RoHS
-
Warranty:
-
1 year
-
Frequency:
-
>95%
-
Type:
-
Servo Motor Control
-
Display:
-
Meter Display or LCD
-
Output precision:
-
3%
The advantages of this model:
1.Wide input voltage: AC 140~260V or customize
2.High technology: programmed control computerized
3.The high accuracy of the output voltage(220V±3%)
4.Fashion design: Meter Display or LCD which can show all protection functions, such as input voltage, output voltage, temperature, delay time, loading. fault indication and so on.
5.Quality insurance: Main spare parts made by ourselves, for example, transformer, PCB.
6.Perfect protection function: over/low voltage protection, over-heat/load protection, short circuit protection.
7.Option function: with voltage regulator and mains supply two kind output voltage choice function, in mains supply relatively stable season, the user can put voltage stabilizer in mains supply state, there is no power consumption, it is economic and convenient.
8.High efficiency: More than 95%.
| TECHNOLOGY PARAMETER | ||||
| Model | SVC-500 | SVC-1000 | SVC-1500 | SVC-2000 |
| SVC-3000 | SVC-5000 | SVC-8000 | SVC-10000 | |
| Nominal Power | 500VA | 1000VA | 1500VA | 2000VA |
| 3000VA | 5000VA | 8000VA | 10000VA | |
| Power Factor | 0.6-1.0 | |||
| Input | ||||
| Operating Voltage Range | 120~275V | |||
| Regulation Voltage Range | 140~260V (custom made) | |||
| Frequency | 50HZ | |||
| Connection Type | 0.5~1.5KVA(Power cord with plug), 2~12KVA(Input terminal block) | |||
| Output | ||||
| Operating Voltage | 180~255V | |||
| High Cut Voltage | 255V | |||
| Low Cut Voltage | 180V | |||
| Safety Cycle | 3 Seconds / 180 Seconds (Optional) | |||
| Frequency | 50HZ | |||
| Connection Type | 0.5-1.5KVA(Output socket), 2~10KVA(Output terminal block) | |||
| Regulation | ||||
| Regulation % | 1.5% / 3.5% | |||
| Number of Taps | NO | |||
| Transformer Type | Toroidal auto transformer | |||
| Regulation Type | Servo type | |||
| Indicators | ||||
| Digital / Meter display | Input voltage ,Output voltage,Load | |||
| Protection | ||||
| Over Temperature | Auto Shutdown at 120 ℃ | |||
| Short Circuit | Auto Shutdown | |||
| Overload | Auto Shutdown | |||
| Over / Under Voltage | Auto Shutdown | |||
| Packaging information | ||||
| Model | Unit(PCS) | Device Size(MM) | Package Size(MM) | G.W.(KGS) |
| SVC-500 | 4 | 170*188*140 | 425*245*340 | 16.8 |
| SVC-1000 | 4 | 198*212*160 | 495*275*385 | 22.4 |
| SVC-1500 | 4 | 198*212*160 | 495*275*385 | 24.4 |
| SVC-2000 | 4 | 280*245*195 | 615*355*240 | 18.5 |
| SVC-3000 | 2 | 307*235*230 | 605*385*285 | 26 |
| SVC-5000 | 1 | 310*390*200 | 460*390*275 | 18 |
| SVC-8000 | 1 | 310*390*200 | 460*390*275 | 24 |
| SVC-10000 | 1 | 310*390*200 | 460*390*275 | 25.5 |
Production Function:
Applications:
Computers, test equipment, lighting systems, safety alarm systems, X-ray systems, communication systems, medical equipment, duplicators, stereo sound equipment, color film developing equipment, digital control machine tools, TV sets, office appliances.
